Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jun 15, 2017, 07:57 AM

  • 03 0583_03 0582_6152017_020021.mp4

Date
06/15/2017
W/O
0635592
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00382
PipeID
P05245
Time
12:57 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H0562
Sewer Name
03 MARINA RELIEF TRUNK, SECTION 2
City
LONG BEACH
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 03
Page No.
25
Purpose
Routine Assessment
Project
20170613MDM_MARINA_RELIEF_TRUNK_SECTION_2
Material
Vitrified Clay Pipe
Shape
Circular
Height
18 in.
Upstream MH
03 0582
Downstream MH
03 0583
Dir. of Survey
Upstream
Length Surveyed
374.8 ft.
Total Length
374.8 ft.
Structural Index
2
Structural Quick
332A
Structural Rating
33
O&M Index
2
O&M Quick
2100
O&M Rating
2
Overall Index
2
Overall Quick
—
Overall Rating
35
Pipe schematic from manhole 03 0582 to 03 0583
MH: 03 0582MH: 03 0583upstream0 ft. AMH - Upstream Manhole, Survey Ends - 2:55AM0.2 ft. MGO - General Observation - Conn. @ Mh, 1 O' Clock. OPEN0.2 ft. MGO - General Observation - HOT FLOW SHUTTING DOWN CAMERA PROBLEM0.2 ft. MGO - General Observation - Conn. @ Mh, 12 O' Clock. Active0.2 ft. MGP - General Photograph - MH # 5830.2 ft. MGO - General Observation - DOUBLE DOOR COVER MNH# 5830.2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Finish9.7 ft. FL - Fracture Longitudinal, at 11 o'clock, within 8 inches of joint: YES - H15.5 ft. MGO - General Observation - TOP OF PIPE REMOVER AND REPLACED OR ABANDONED MH22.9 ft. FC - Fracture Circumferential, from 11 to 12 o'clock, within 8 inches of joint: YES - H110.4 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES - H156.9 ft. CL - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES193.2 ft. FC - Fracture Circumferential, from 09 to 11 o'clock, within 8 inches of joint: YES - H204.8 ft. FC - Fracture Circumferential, from 01 to 03 o'clock, within 8 inches of joint: YES210.5 ft. FC - Fracture Circumferential, from 12 to 02 o'clock, within 8 inches of joint: YES - H217 ft. CC - Crack Circumferential, from 12 to 03 o'clock, within 8 inches of joint: YES224.3 ft. FC - Fracture Circumferential, from 12 to 02 o'clock, within 8 inches of joint: YES - H237.7 ft. CL - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES240.7 ft. CC - Crack Circumferential, from 12 to 03 o'clock, within 8 inches of joint: YES242.3 ft. FC - Fracture Circumferential, from 01 to 03 o'clock, within 8 inches of joint: YES - H245.4 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES - H246.7 ft. CL - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES263.4 ft. FC - Fracture Circumferential, from 12 to 03 o'clock, within 8 inches of joint: YES - SLIGHT312.8 ft. FC - Fracture Circumferential, from 10 to 12 o'clock, within 8 inches of joint: YES - HAIRLINE372.8 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start374.8 ft. MWM - Water Mark, 40 %of cross sectional area - NO FLOW374.8 ft. AMH - Downstream Manhole, Survey Begins - 1:55AM374.8 ft. MWL - Water Level, 20 %of cross sectional area

Observation photos (4)

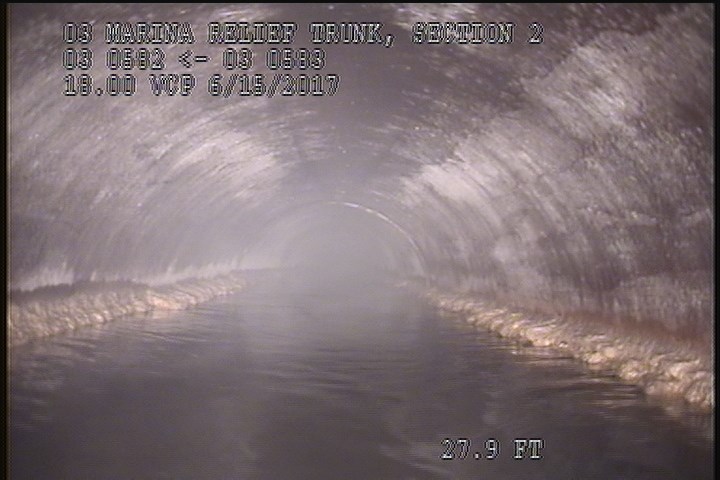

  • Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

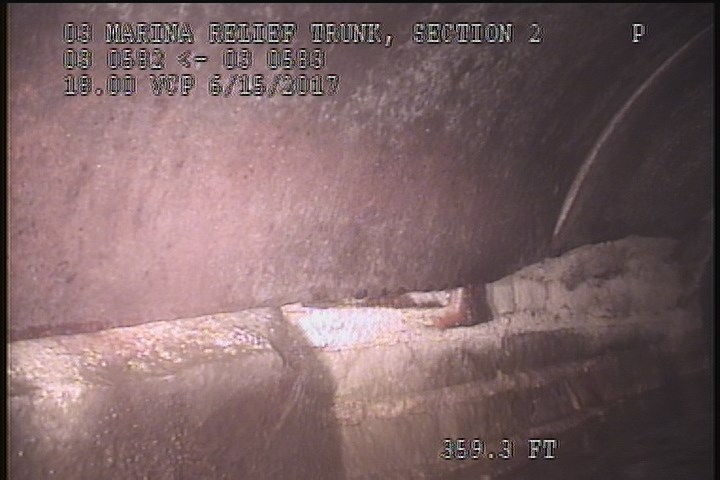

  • General Observation - TOP OF PIPE REMOVER AND REPLACED OR ABANDONED MH

    359.3 ft. - General Observation - TOP OF PIPE REMOVER AND REPLACED OR ABANDONED MH

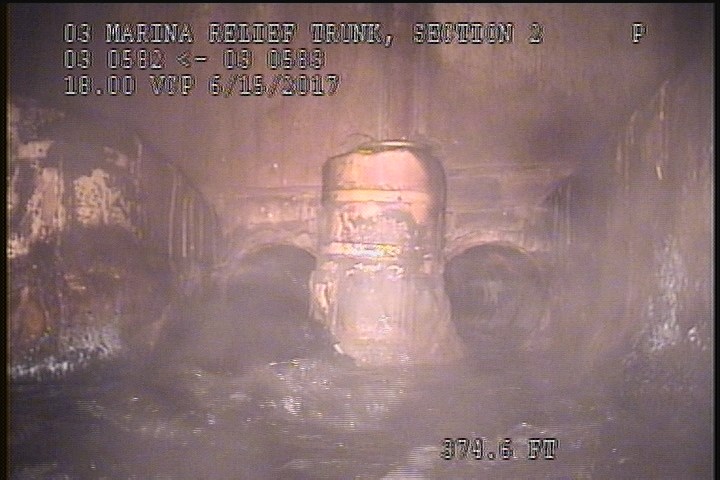

  • General Photograph - MH # 583

    374.6 ft. - General Photograph - MH # 583

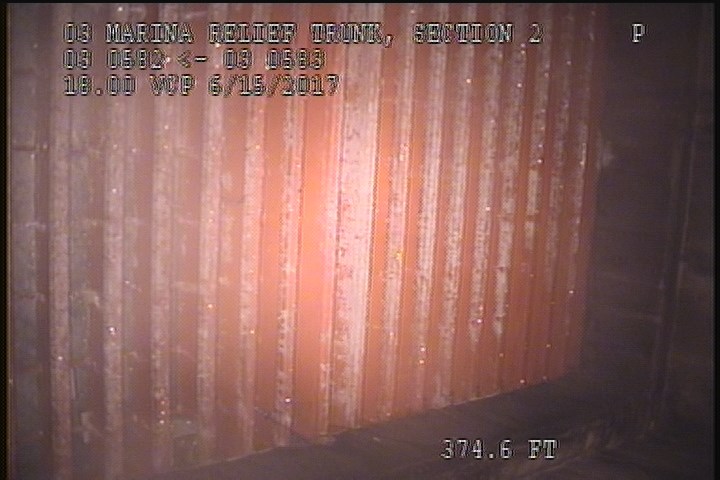

  • General Observation - DOUBLE DOOR COVER MNH# 583

    374.6 ft. - General Observation - DOUBLE DOOR COVER MNH# 583

All inspections of P05245Work order 0635592

Observations (28)

DistanceCodeObservation
374.8AMH2:55AM
374.6MGOConn. @ Mh, 1 O' Clock. OPEN
374.6MGOHOT FLOW SHUTTING DOWN CAMERA PROBLEM
0MWMNO FLOW
0AMH1:55AM
164.3FCH
111.4FCSLIGHT
170FC—
359.3MGOTOP OF PIPE REMOVER AND REPLACED OR ABANDONED MH
264.4FLH
2DAGS—
129.4FLH
0MWL—
374.6MGOConn. @ Mh, 12 O' Clock. Active
132.5FCH
374.6MGPMH # 583
351.9FCH
128.1CL—
365.1FLH
137.1CL—
62FCHAIRLINE
150.5FCH
374.6MGODOUBLE DOOR COVER MNH# 583
134.1CC—
181.6FCH
157.8CC—
217.9CL—
374.6DAGS—

Properties (6)

custom_field_three
SLIGHT FRACTURE
custom_field_two
4
customer
LACSD
datetime
2017-06-15T00:57:18-07:00
documentation
MARTIN,MANANES,OLIVER 111
is_lateral_inspection
false
