Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jun 14, 2017, 11:13 AM

  • 03 0577_03 0576_6142017_041753.mp4

Date
06/14/2017
W/O
0635592
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00382
PipeID
P05239
Time
4:13 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H0559
Sewer Name
03 MARINA RELIEF TRUNK, SECTION 2
City
LONG BEACH
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 03
Page No.
25
Purpose
Routine Assessment
Project
20170613MDM_MARINA_RELIEF_TRUNK_SECTION_2
Material
Vitrified Clay Pipe
Shape
Circular
Height
24 in.
Upstream MH
03 0577
Downstream MH
03 0576
Dir. of Survey
Downstream
Length Surveyed
224.8 ft.
Total Length
224.8 ft.
Structural Index
2
Structural Quick
3525
Structural Rating
26
O&M Index
3
O&M Quick
4121
O&M Rating
6
Overall Index
2
Overall Quick
—
Overall Rating
32
Pipe schematic from manhole 03 0577 to 03 0576
MH: 03 0577MH: 03 0576downstream0 ft. MGO - General Observation - Conn. @ Mh, 3 O' Clock. Active0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. MWM - Water Mark, 50 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 4:15AM2 ft. DAGS - Deposits Attached Grease, 10 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start78.5 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES - SLIGHT107.9 ft. FL - Fracture Longitudinal, at 03 o'clock, within 8 inches of joint: YES - HAIRLINE120.2 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES - SLIGHT137.8 ft. FC - Fracture Circumferential, from 09 to 11 o'clock, within 8 inches of joint: YES - H143.8 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES - H143.8 ft. FC - Fracture Circumferential, from 02 to 03 o'clock, within 8 inches of joint: YES - H149.7 ft. FC - Fracture Circumferential, from 09 to 10 o'clock, within 8 inches of joint: YES - H156.3 ft. FC - Fracture Circumferential, from 09 to 10 o'clock, within 8 inches of joint: YES - H191.4 ft. FL - Fracture Longitudinal, at 09 o'clock, within 8 inches of joint: YES - H203.5 ft. FC - Fracture Circumferential, from 11 to 01 o'clock, within 8 inches of joint: YES - H221.7 ft. CC - Crack Circumferential, from 02 to 03 o'clock, within 8 inches of joint: YES224.3 ft. DAGS - Deposits Attached Grease, 10 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Finish224.8 ft. AMH - Downstream Manhole, Survey Ends - 4:50AM

Observation photos (1)

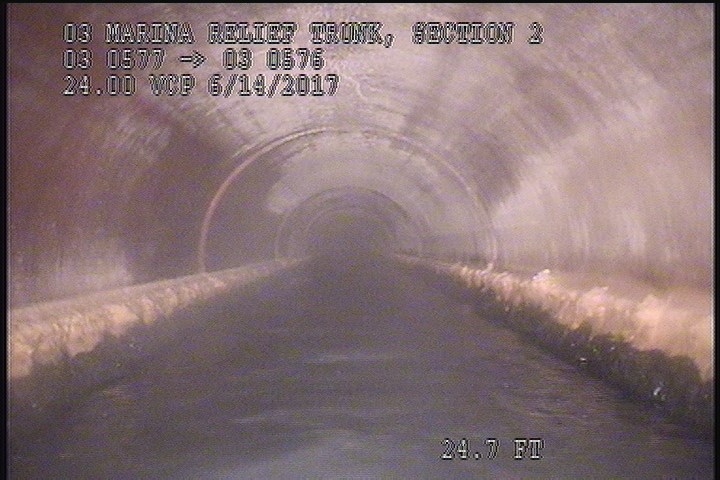

  • Deposits Attached Grease, 10 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 10 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

All inspections of P05239Work order 0635592

Observations (18)

DistanceCodeObservation
156.3FCH
224.8AMH4:50AM
0MGOConn. @ Mh, 3 O' Clock. Active
0MWL—
191.4FLH
2DAGS—
120.2FLSLIGHT
137.8FCH
0MWM—
107.9FLHAIRLINE
143.8FLH
78.5FLSLIGHT
149.7FCH
0AMH4:15AM
203.5FCH
221.7CC—
224.3DAGS—
143.8FCH

Properties (6)

custom_field_three
SLIGHT FRACTURES
custom_field_two
4
customer
LACSD
datetime
2017-06-14T04:13:08-07:00
documentation
MARTIN,MANANES,REVELES,OLIVER 111
is_lateral_inspection
false
