Wastewater/Activity/PacpInspection/1.0Sep 11, 2017, 11:08 AM
C 0335_C 0334 _09112017_042020.mp4
- Date
- 09/11/2017
- W/O
- 651776
- Weather
- Dry
- Operator/Surveyor
- JUAN B
- Sewer ID
- Z00138
- PipeID
- P09798
- Time
- 4:08 AM
- Certificate
- U-715-07000770
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K4966
- Sewer Name
- C JOINT OUTFALL C - UNIT 7B
- City
- LONG BEACH
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 19
- Page No.
- 08
- Purpose
- Routine Assessment
- Project
- WO_651776_TV03125_AUG2017
- Sewer Type
- Siphon
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 33 in.
- Width
- 33 in.
- Upstream MH
- C 0334
- Downstream MH
- C 0335
- Dir. of Survey
- Upstream
- Length Surveyed
- 10 ft.
- Total Length
- 10 ft.
- Structural Index
- 3
- Structural Quick
- 3100
- Structural Rating
- 3
- O&M Index
- 2
- O&M Quick
- 2100
- O&M Rating
- 2
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 5
Observation photos (3)

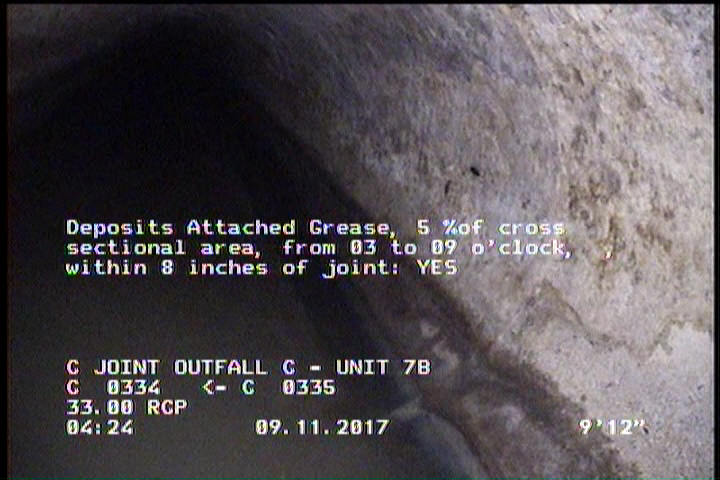

10 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES

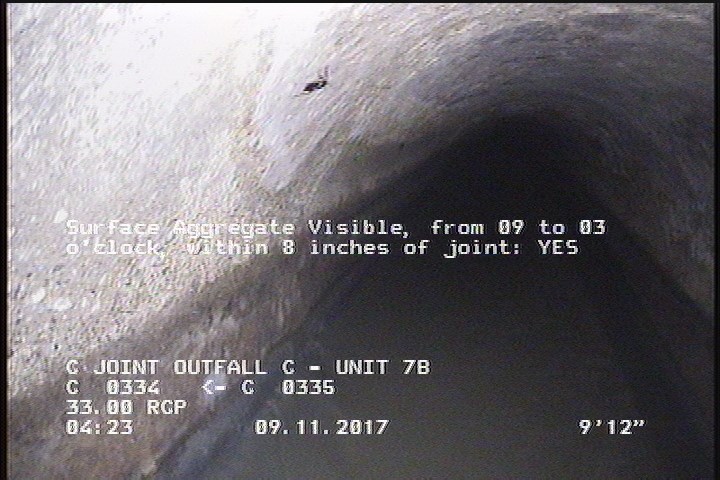

10 ft. - Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: YES

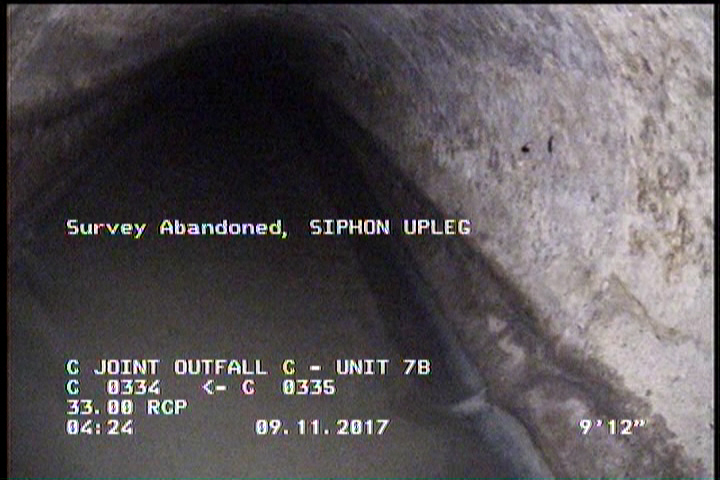

10 ft. - Survey Abandoned - SIPHON UPLEG
Observations (7)
| Distance | Code | Observation |
|---|---|---|
| 10 | DAGS | — |
| 0 | MGO | — |
| 0 | MWM | — |
| 0 | AMH | C 0334 |
| 10 | SAV | — |
| 0 | MWL | — |
| 10 | MSA | SIPHON UPLEG |
Properties (6)
- additional_info
- SC345657
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-09-11T04:08:06-07:00
- documentation
- PROPIPE
- is_lateral_inspection
- false
