Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Sep 8, 2017, 11:11 AM

  • C 0344_C 0343 _09082017_041221.mp4

Date
09/08/2017
W/O
651776
Weather
Dry
Operator/Surveyor
JUAN B
Sewer ID
Z00138
PipeID
P09807
Time
4:11 AM
Certificate
U-715-07000770
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K4964
Sewer Name
C JOINT OUTFALL C - UNIT 7B
City
LONG BEACH
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 03
Page No.
17
Purpose
Routine Assessment
Project
WO_651776_TV03125_AUG2017
Sewer Type
Siphon
Material
Reinforced Concrete Pipe
Shape
Circular
Height
33 in.
Width
33 in.
Upstream MH
C 0344
Downstream MH
C 0343
Dir. of Survey
Downstream
Length Surveyed
5 ft.
Total Length
5 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
3
O&M Quick
4121
O&M Rating
6
Overall Index
3
Overall Quick
—
Overall Rating
6
Pipe schematic from manhole C 0344 to C 0343
MH: C 0344MH: C 0343downstream0 ft. MWM - Water Mark, 50 %of cross sectional area0 ft. MWL - Water Level, 35 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - C 03444.9 ft. MSA - Survey Abandoned - SIPHON DOWNLEG5 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES

Observation photos (2)

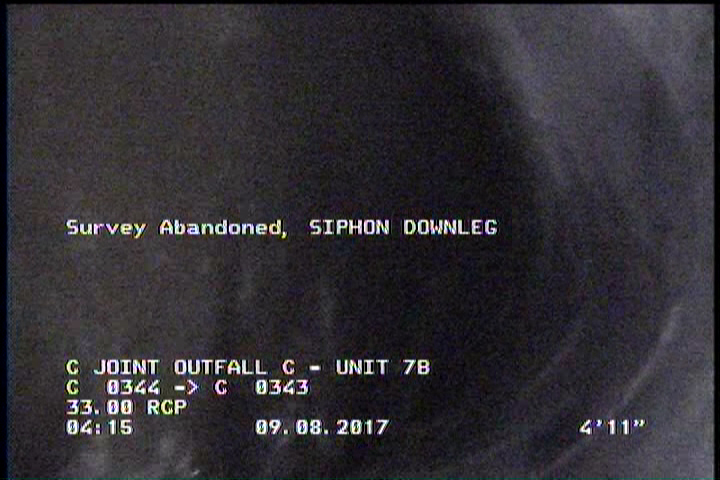

  • Survey Abandoned - SIPHON DOWNLEG

    4.9 ft. - Survey Abandoned - SIPHON DOWNLEG

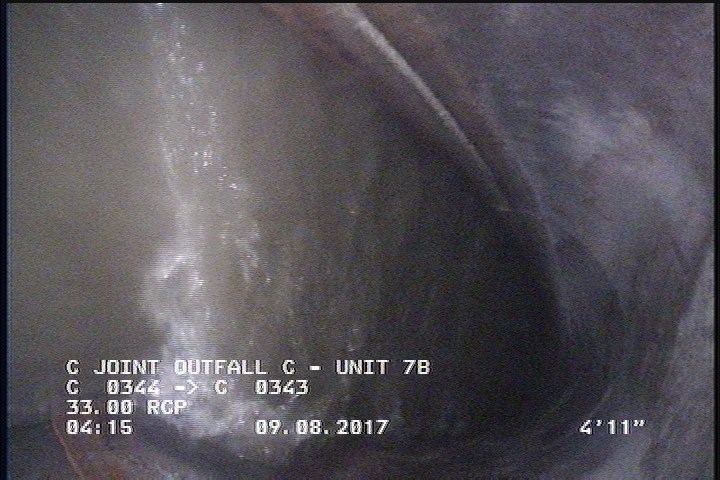

  • Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES

    5 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES

All inspections of P09807Work order 651776

Observations (5)

DistanceCodeObservation
0MWM—
0MWL—
4.9MSASIPHON DOWNLEG
0AMHC 0344
5DAGS—

Properties (6)

additional_info
SC345955
custom_field_two
4
customer
LACSD
datetime
2017-09-08T04:11:49-07:00
documentation
PROPIPE
is_lateral_inspection
false
