Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Sep 30, 2016, 08:15 AM

  • 22 0851_22 0850 _09302016_011416.mp4

Date
09/30/2016
W/O
596657
Weather
Dry
Operator/Surveyor
J. HARTOOG
Sewer ID
Z00803
PipeID
P17217
Time
1:15 AM
Certificate
U-507-3386
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K3723
Sewer Name
22 DALTON TRUNK, SECTION 3
City
AZUSA, CA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 22
Page No.
19
Purpose
Routine Assessment
Project
WO_596657_TV599657_OCT2016
Sewer Type
Gravity
Material
Reinforced Concrete Pipe
Shape
Circular
Height
24 in.
Width
24 in.
Upstream MH
22 0851
Downstream MH
22 0850
Dir. of Survey
Downstream
Length Surveyed
376.1 ft.
Total Length
376.2 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
2
O&M Quick
2N00
O&M Rating
148
Overall Index
2
Overall Quick
—
Overall Rating
148
Pipe schematic from manhole 22 0851 to 22 0850
MH: 22 0851MH: 22 0850downstream0 ft. AMH - Upstream Manhole, Survey Begins - 22 08510 ft. MWM - Water Mark, 25 %of cross sectional area0 ft. MWL - Water Level, 5 %of cross sectional area2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start2 ft. MGO - General Observation - MAG. H.OX START 90%49.8 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: NO, 4"61.1 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: NO, 4"111.4 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: NO, 4"117.6 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: NO, 4"178.3 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: NO, 4"184 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: NO, 4"241.1 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: NO, 4"258 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: NO, 4", 4"289.3 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: NO, 4"321.4 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: NO, 4"370.5 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: NO, 4"374.3 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish376.2 ft. AMH - Downstream Manhole, Survey Ends - 22 0850

Observation photos (1)

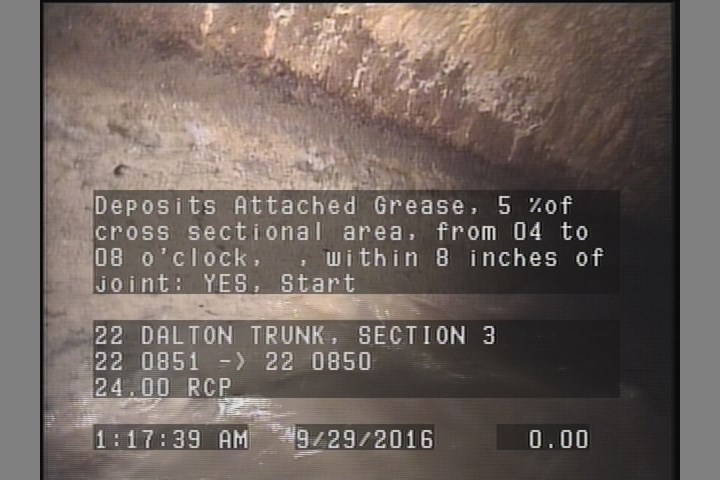

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

All inspections of P17217Work order 596657

Observations (18)

DistanceCodeObservation
0AMH22 0851
376.2AMH22 0850
49.8TFA—
2DAGS—
0MWM—
2MGOMAG. H.OX START 90%
61.1TFA—
241.1TFA—
117.6TFA—
289.3TFA—
184TFA—
321.4TFA—
258TFA—
370.5TFA—
178.3TFA—
374.3DAGS—
111.4TFA—
0MWL—

Properties (6)

additional_info
SC303710
custom_field_two
5
customer
LACSD
datetime
2016-09-30T01:15:00-07:00
documentation
PRO-PIPE
is_lateral_inspection
false
