Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jun 2, 2016, 08:47 AM

  • 30 0102_30 0101_02062016_014806.mp4

Date
06/02/2016
W/O
574298
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00878
PipeID
P17804
Time
1:47 AM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K3517
Sewer Name
30 SOUTH BAY CITIES MAIN TRUNK
City
REDONDO BEACH
Loc. details
Easement/Right of Way
Location Code
D
Use of Sewer
Sanitary Sewer
District
District 30
Page No.
05
Purpose
Routine Assessment
Project
WO_574298_TV30067_JUNE2016
Sewer Type
GRAVITY
Material
Vitrified Clay Pipe
Shape
Other
Height
24 in.
Upstream MH
30 0102
Downstream MH
30 0101
Dir. of Survey
Downstream
Length Surveyed
184.4 ft.
Total Length
184.4 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
2
O&M Quick
412M
O&M Rating
140
Overall Index
2
Overall Quick
—
Overall Rating
140
Pipe schematic from manhole 30 0102 to 30 0101
MH: 30 0102MH: 30 0101downstream0 ft. MWL - Water Level, 25 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 30 01020 ft. MWM - Water Mark, 50 %of cross sectional area0 ft. MGO - General Observation - ACTIVE CONNECTION AT MH 6 O'CLOCK2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start9.9 ft. DSZ - Deposits Settled Other, 10 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start26.6 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"54 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: NO, 6"109.4 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: NO, 6"165.1 ft. TFC - Tap Factory Made Capped, at 01 o'clock, -, within 8 inches of joint: NO, 6"171.6 ft. DSZ - Deposits Settled Other, 10 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Finish182.9 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Finish184.4 ft. AMH - Downstream Manhole, Survey Ends - 30 0101

Observation photos (1)

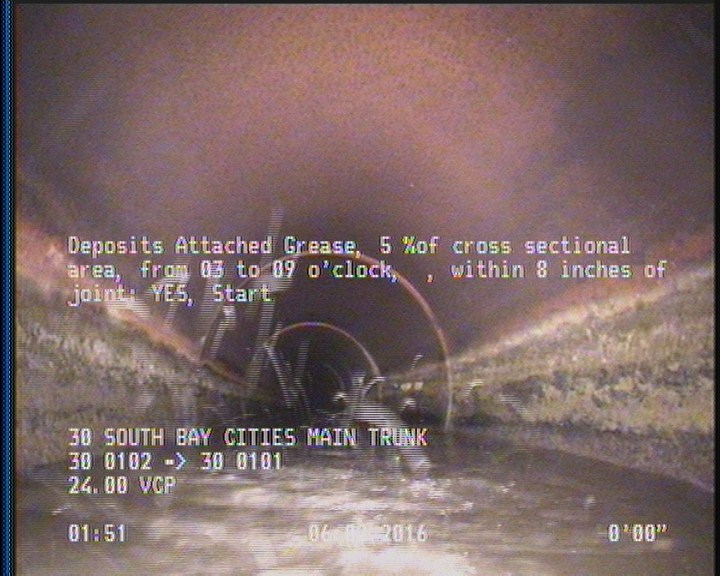

  • Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

All inspections of P17804Work order 574298

Observations (13)

DistanceCodeObservation
165.1TFC—
54TFA—
26.6TFC—
0MWL—
0AMH30 0102
0MWM—
9.9DSZ—
109.4TFA—
0MGOACTIVE CONNECTION AT MH 6 O'CLOCK
182.9DAGS—
171.6DSZ—
2DAGS—
184.4AMH30 0101

Properties (6)

additional_info
SC305647
custom_field_two
4
customer
LACSD
datetime
2016-06-02T01:47:38-07:00
documentation
PRO PIPE
is_lateral_inspection
false
