Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Apr 25, 2016, 11:58 AM

  • 19 0079_C 0372_25042016_045906.mp4

Date
04/25/2016
W/O
563419
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00141
PipeID
P24007
Time
4:58 AM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K3324
Sewer Name
C JOINT OUTFALL C - UNIT 8C
City
HAWAIIAN GARDENS
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 19
Page No.
06
Purpose
Routine Assessment
Project
WO_563419_TV19012_APRIL2016
Sewer Type
GRAVITY
Material
Reinforced Concrete Pipe
Shape
Circular
Height
21 in.
Upstream MH
C 0372
Downstream MH
19 0079
Dir. of Survey
Upstream
Length Surveyed
2 ft.
Total Length
2 ft.
Structural Index
3
Structural Quick
3121
Structural Rating
5
O&M Index
3
O&M Quick
4122
O&M Rating
8
Overall Index
3
Overall Quick
—
Overall Rating
13
Pipe schematic from manhole C 0372 to 19 0079
MH: C 0372MH: 19 0079upstream0 ft. DAE - Deposits Attached Encrustation, 10 %of cross sectional area, from 09 to 03 o'clock, , within 8 inches of joint: YES0 ft. AMH - Upstream Manhole, Survey Ends - 19 00790 ft. SAP - Surface Aggregate Projecting, from 10 to 02 o'clock, within 8 inches of joint: YES0 ft. SSS - Surface Spalling, from 10 to 02 o'clock, within 8 inches of joint: YES0 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES2 ft. AMH - Downstream Manhole, Survey Begins - C 03722 ft. MWM - Water Mark, 50 %of cross sectional area2 ft. MWL - Water Level, 15 %of cross sectional area

Observation photos (5)

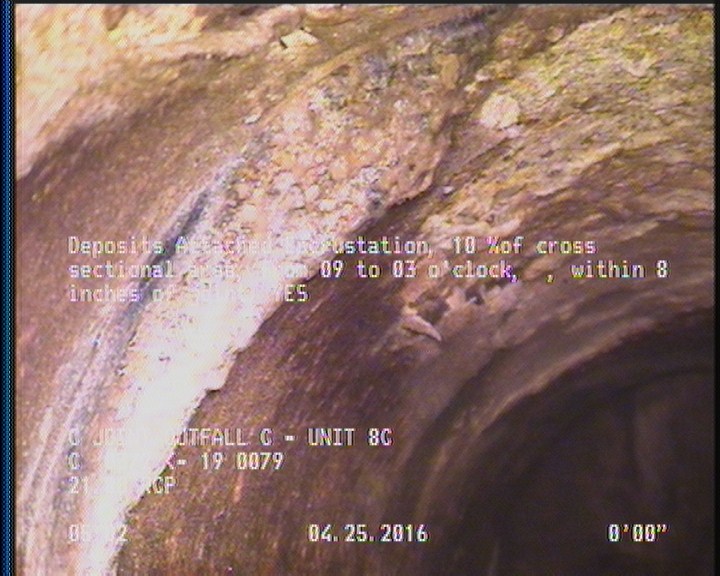

  • Deposits Attached Encrustation, 10 %of cross sectional area, from 09 to 03 o'clock, , within 8 inches of joint: YES

    2 ft. - Deposits Attached Encrustation, 10 %of cross sectional area, from 09 to 03 o'clock, , within 8 inches of joint: YES

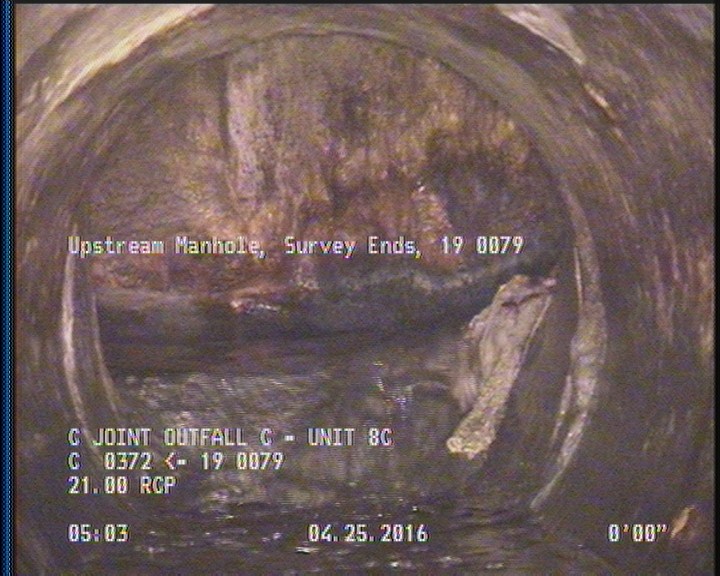

  • Upstream Manhole, Survey Ends - 19 0079

    2 ft. - Upstream Manhole, Survey Ends - 19 0079

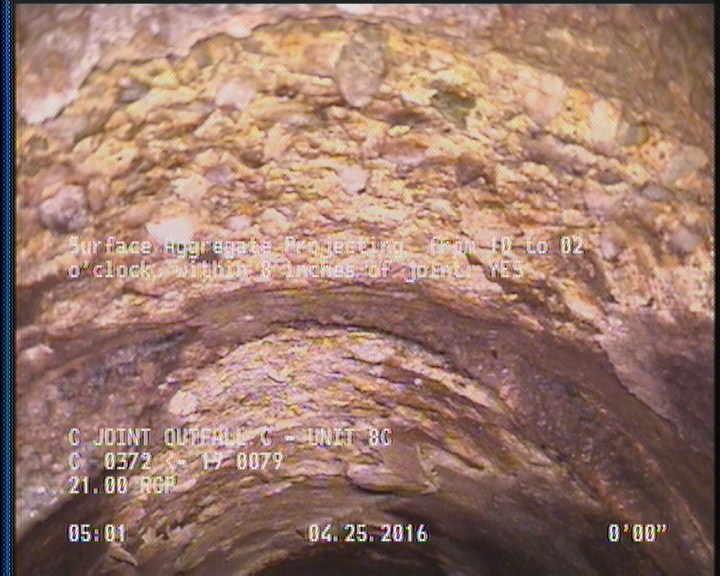

  • Surface Aggregate Projecting, from 10 to 02 o'clock, within 8 inches of joint: YES

    2 ft. - Surface Aggregate Projecting, from 10 to 02 o'clock, within 8 inches of joint: YES

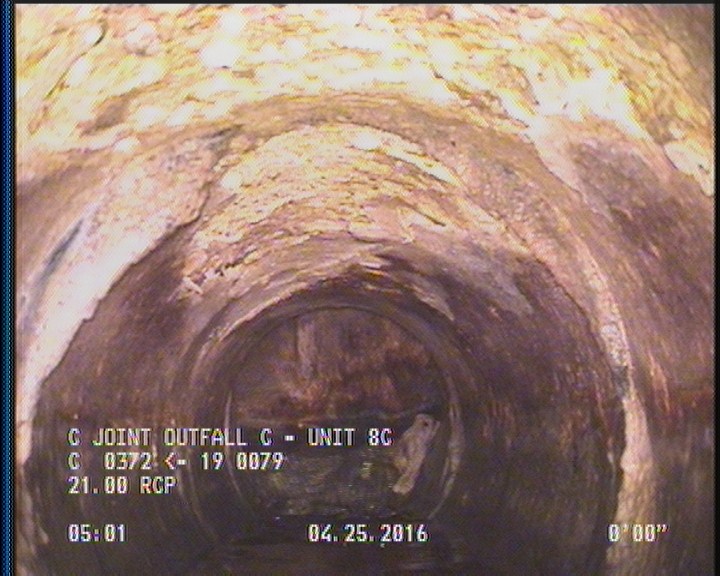

  • Surface Spalling, from 10 to 02 o'clock, within 8 inches of joint: YES

    2 ft. - Surface Spalling, from 10 to 02 o'clock, within 8 inches of joint: YES

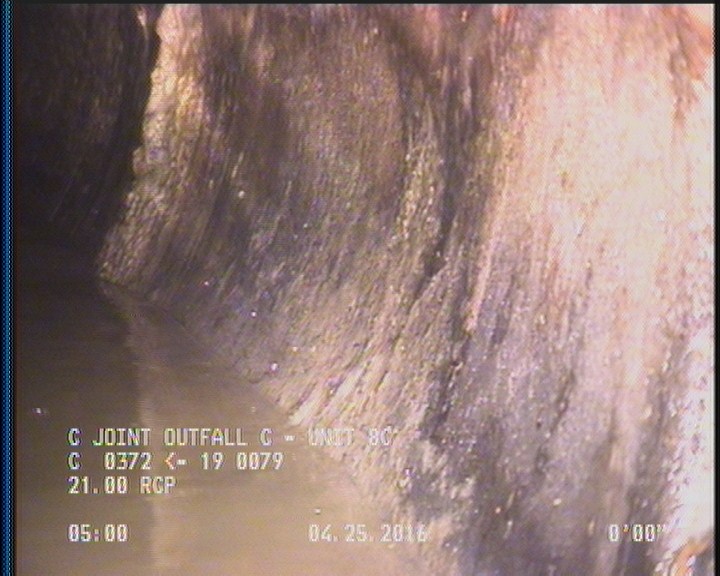

  • Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES

All inspections of P24007Work order 563419

Observations (8)

DistanceCodeObservation
0AMHC 0372
0MWM—
2DAE—
2AMH19 0079
2SAP—
2SSS—
2DAGS—
0MWL—

Properties (6)

additional_info
SC305602
custom_field_two
2
customer
LACSD
datetime
2016-04-25T04:58:47-07:00
documentation
PRO PIPE
is_lateral_inspection
false
