Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Oct 23, 2017, 10:16 AM

  • 02 1364A_02 1364 _102317_031658.mp4

Date
10/23/2017
W/O
668911
Weather
Dry
Operator/Surveyor
JUAN B
Sewer ID
Z00277
PipeID
P03888
Time
3:16 AM
Certificate
U-715-07000770
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K4997
Sewer Name
02 JANE STREET BRANCH TRUNK
City
LOS ANGELES
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
11A
Purpose
Routine Assessment
Project
WO_668911_TV02072_NOV2017
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
8 in.
Width
8 in.
Upstream MH
02 1364A
Downstream MH
02 1364
Dir. of Survey
Downstream
Length Surveyed
307.2 ft.
Total Length
307.2 ft.
Structural Index
3
Structural Quick
3W2K
Structural Rating
476
O&M Index
2
O&M Quick
2100
O&M Rating
2
Overall Index
3
Overall Quick
—
Overall Rating
478
Pipe schematic from manhole 02 1364A to 02 1364
MH: 02 1364AMH: 02 1364downstream0 ft. AMH - Upstream Manhole, Survey Begins - 02 1364A, UNMAPPED MANHOLE0 ft. MWM - Water Mark, 35 %of cross sectional area0 ft. MWL - Water Level, 10 %of cross sectional area2 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start2 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start2.3 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start4 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES16.3 ft. CM - Crack Multiple, from 07 to 12 o'clock, within 8 inches of joint: YES17.3 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"18.7 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start20 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"40.5 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 4"67 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"78.3 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"84 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"156.4 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"158.9 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"164.2 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"199.9 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"235.6 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"241.2 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"276.7 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"279.4 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"293.2 ft. MLC - Lining Change, Cured in place293.2 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish305.5 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish306 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish306 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish307.2 ft. AMH - Downstream Manhole, Survey Ends - 02 1364307.2 ft. MGO - General Observation - CONNECTION AT 3 OC307.2 ft. MGO - General Observation - CONNECTION AT 9 OC

Observation photos (4)

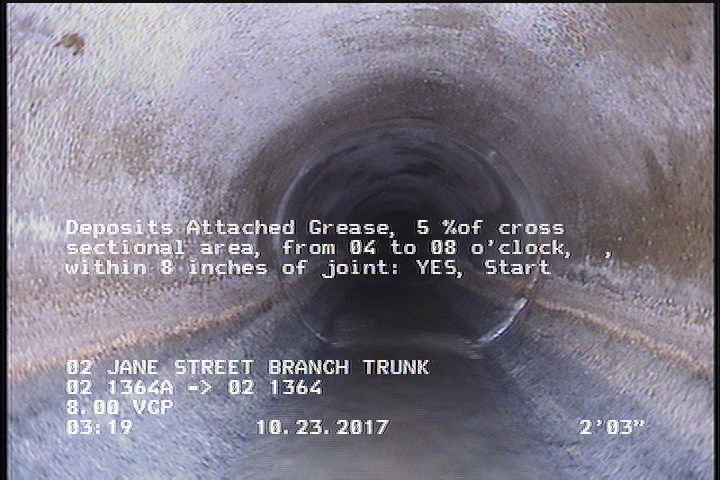

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    2.3 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

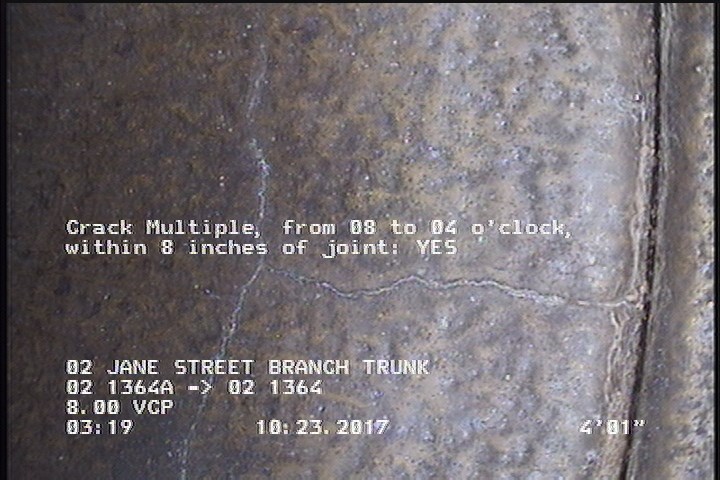

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

    4 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

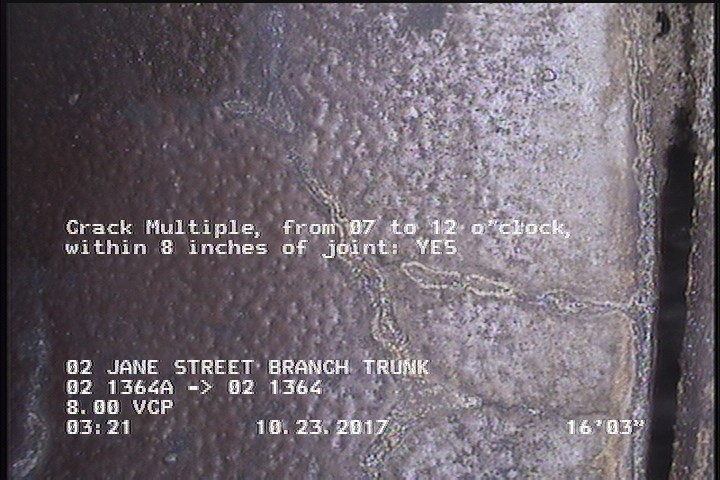

  • Crack Multiple, from 07 to 12 o'clock, within 8 inches of joint: YES

    16.3 ft. - Crack Multiple, from 07 to 12 o'clock, within 8 inches of joint: YES

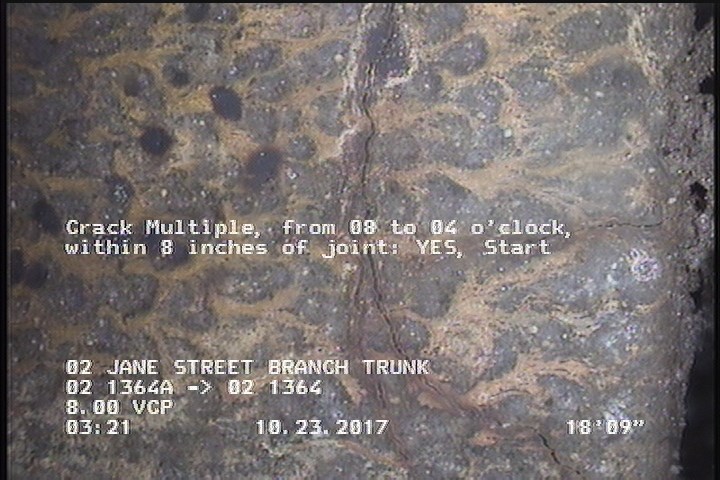

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    18.7 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

All inspections of P03888Work order 668911

Observations (31)

DistanceCodeObservation
16.3CM—
164.2TF—
4CM—
84TF—
2SSS—
156.4TF—
0AMH02 1364A, UNMAPPED MANHOLE
307.2AMH02 1364
0MWM—
0MWL—
78.3TF—
2CM—
199.9TF—
17.3TF—
235.6TF—
158.9TF—
306CM—
307.2MGOCONNECTION AT 3 OC
307.2MGOCONNECTION AT 9 OC
279.4TFC—
293.2MLC—
18.7CM—
276.7TFC—
40.5TF—
305.5DAGS—
241.2TF—
20TF—
293.2CM—
306SSS—
67TF—
2.3DAGS—

Properties (6)

additional_info
SC350351
custom_field_two
3
customer
LACSD
datetime
2017-10-23T03:16:30-07:00
documentation
PROPIPE
is_lateral_inspection
false
