Wastewater/Activity/PacpInspection/1.0Oct 26, 2017, 09:46 AM
A 0895_A 0894 _26102017_024728.mp4
- Date
- 10/26/2017
- W/O
- 668909
- Weather
- Dry
- Operator/Surveyor
- JUAN B
- Sewer ID
- Z00318
- PipeID
- P07989
- Time
- 2:46 AM
- Certificate
- U-715-07000770
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K5004
- Sewer Name
- A JOA-1A FLORENCE AVENUE INTERCEPTOR
- City
- NORWALK
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 18
- Page No.
- 25
- Purpose
- Routine Assessment
- Project
- WO_668909_TV18067_NOV2017
- Sewer Type
- Gravity
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 27 in.
- Width
- 27 in.
- Upstream MH
- A 0894
- Downstream MH
- A 0895
- Dir. of Survey
- Upstream
- Length Surveyed
- 342.8 ft.
- Total Length
- 342.8 ft.
- Structural Index
- 3
- Structural Quick
- 3222
- Structural Rating
- 10
- O&M Index
- 2
- O&M Quick
- 2M00
- O&M Rating
- 136
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 146
Observation photos (2)

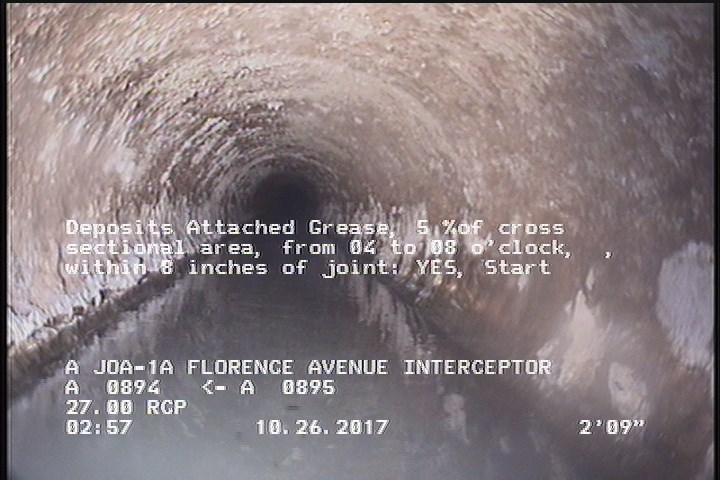

2.4 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

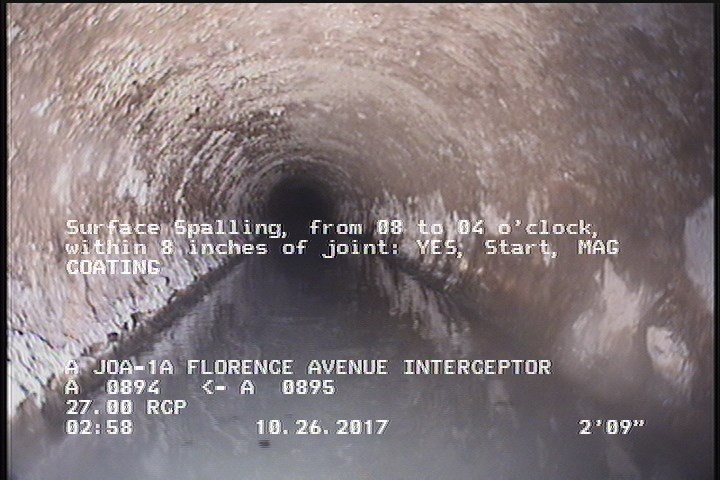

2.8 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - MAG COATING
Observations (12)
| Distance | Code | Observation |
|---|---|---|
| 6.7 | MGO | RESUMING FROM 6' |
| 0 | MWL | — |
| 0 | MWM | — |
| 2 | SRP | — |
| 0 | AMH | A 0894 |
| 2.4 | DAGS | — |
| 340.4 | SSS | — |
| 2.8 | MGO | MAG COATING - 50% , 2' to end - 8 to 4 oc |
| 342.8 | AMH | A 0895 |
| 340 | SRP | — |
| 2.8 | SSS | MAG COATING |
| 340.4 | DAGS | — |
Properties (7)
- additional_info
- SC350358
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-10-26T02:46:27-07:00
- documentation
- PROPIPE
- is_lateral_inspection
- false
- year_laid
- 31499
