Wastewater/Activity/PacpInspection/1.0Oct 30, 2017, 09:05 AM
A 0879_A 0878 __30102017_020723.mp4
- Date
- 10/30/2017
- W/O
- 668909
- Weather
- Dry
- Operator/Surveyor
- JUAN B
- Sewer ID
- Z00318
- PipeID
- P07973
- Time
- 2:05 AM
- Certificate
- U-715-07000770
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K5156
- Sewer Name
- A JOA-1A FLORENCE AVENUE INTERCEPTOR
- City
- NORWALK
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 18
- Page No.
- 29
- Purpose
- Routine Assessment
- Project
- WO_668909_TV18067_NOV2017
- Sewer Type
- Gravity
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 27 in.
- Width
- 27 in.
- Upstream MH
- A 0879
- Downstream MH
- A 0878
- Dir. of Survey
- Downstream
- Length Surveyed
- 575.4 ft.
- Total Length
- 575.4 ft.
- Structural Index
- 3
- Structural Quick
- 3V2V
- Structural Rating
- 572
- O&M Index
- 2
- O&M Quick
- 2V00
- O&M Rating
- 234
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 806
Observation photos (2)

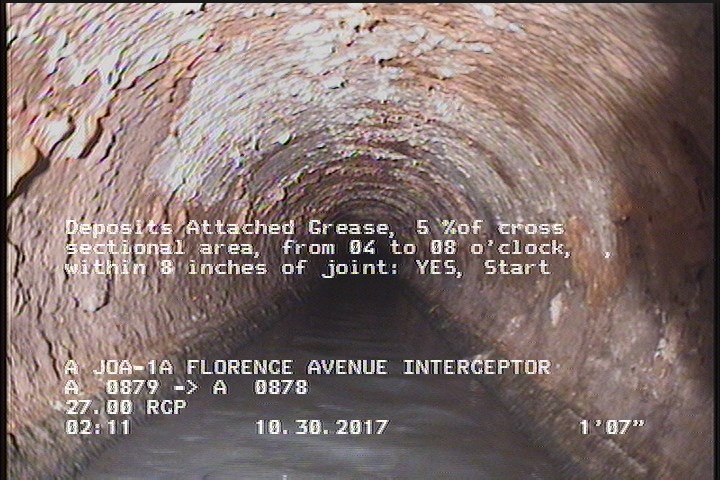

1.6 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

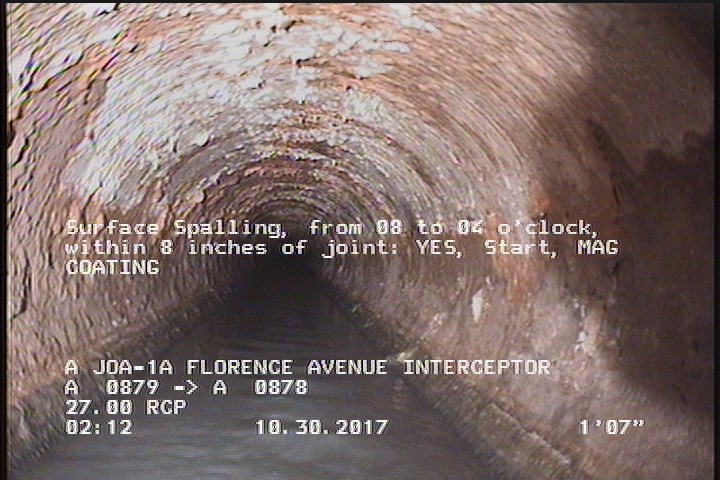

1.6 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - MAG COATING
Observations (14)
| Distance | Code | Observation |
|---|---|---|
| 2 | SRP | — |
| 1.6 | DAGS | — |
| 0 | MWM | — |
| 574 | SRP | — |
| 160.7 | DSZ | DEBRIS |
| 575.1 | DAGS | — |
| 1.6 | MGO | MAG COATING |
| 575.4 | AMH | A 0878 |
| 1.6 | SSS | MAG COATING |
| 108.6 | DSZ | DEBRIS |
| 0 | MWL | — |
| 0 | AMH | A 0879 |
| 575.1 | SSS | — |
| 575.2 | MGO | CONNECTION AT 3 OC |
Properties (7)
- additional_info
- SC350360
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2017-10-30T02:05:30-07:00
- documentation
- PROPIPE
- is_lateral_inspection
- false
- year_laid
- 31303
