Wastewater/Activity/PacpInspection/1.0Nov 15, 2017, 08:07 PM
J 0032A_J 0032_15112017_120913.mpg
- Date
- 11/15/2017
- W/O
- 668772
- Weather
- Dry
- Operator/Surveyor
- E RUIZ
- Sewer ID
- Z00061
- PipeID
- P11609
- Time
- 12:07 PM
- Certificate
- 123456
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K5130
- Sewer Name
- J JOINT OUTFALL J - UNIT 2B
- City
- LOMITA
- Loc. details
- Main Highway - Suburban/Rural
- Location Code
- B
- Use of Sewer
- Sanitary Sewer
- District
- District 05
- Page No.
- 36
- Purpose
- Routine Assessment
- Project
- WO_668772_TV05231_NOV2017
- Sewer Type
- Siphon
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 51 in.
- Upstream MH
- J 0032A
- Downstream MH
- J 0032
- Dir. of Survey
- Downstream
- Length Surveyed
- 11 ft.
- Total Length
- 11 ft.
- Structural Index
- 4
- Structural Quick
- 5131
- Structural Rating
- 8
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 4
- Overall Quick
- —
- Overall Rating
- 8
Observation photos (2)

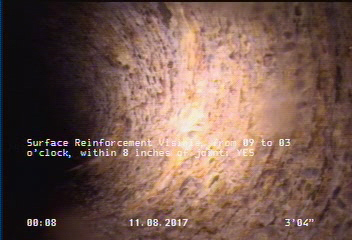

3 ft. - Surface Reinforcement Visible, from 09 to 03 o'clock, within 8 inches of joint: YES - THROUGHOUT THE REACH

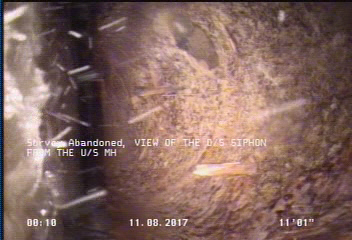

11 ft. - Survey Abandoned - VIEW OF THE D/S SIPHON FROM THE U/S MH
Observations (6)
| Distance | Code | Observation |
|---|---|---|
| 0 | AMH | J 0032A |
| 10 | SAV | — |
| 3 | SRV | THROUGHOUT THE REACH |
| 0 | MWL | — |
| 0 | MWM | — |
| 11 | MSA | VIEW OF THE D/S SIPHON FROM THE U/S MH |
Properties (6)
- additional_info
- SC348338
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2017-11-15T12:07:40-08:00
- documentation
- PROPIPE
- is_lateral_inspection
- false
