Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Nov 22, 2017, 11:51 AM

  • 02 0164_02 0163 _22112017_035413.mp4

Date
11/22/2017
W/O
668770
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00251
PipeID
P02467
Time
3:51 AM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K5046
Sewer Name
02 DOWNEY-BELLFLOWER TRUNK
City
BELLFLOWER
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
36
Purpose
Routine Assessment
Project
WO_668770_TV02327_NOV2017
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
24 in.
Width
24 in.
Upstream MH
02 0164
Downstream MH
02 0163
Dir. of Survey
Downstream
Length Surveyed
332.3 ft.
Total Length
332.3 ft.
Structural Index
3
Structural Quick
3H2C
Structural Rating
165
O&M Index
2
O&M Quick
2800
O&M Rating
16
Overall Index
3
Overall Quick
—
Overall Rating
181
Pipe schematic from manhole 02 0164 to 02 0163
MH: 02 0164MH: 02 0163downstream0 ft. MGO - General Observation - CONNECTION AT MH 9 O'CLOCK0 ft. MGO - General Observation - CONNECTION AT MH 3 O'CLOCK CAPPED0 ft. MWM - Water Mark, 25 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 02 01640 ft. MWL - Water Level, 10 %of cross sectional area18 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES22.2 ft. DSZ - Deposits Settled Other, 10 %of cross sectional area, at 06 o'clock, , within 8 inches of joint: YES22.2 ft. CL - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start104.1 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"106.8 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"114.4 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start114.4 ft. CL - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Finish159.1 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"162.1 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"177.4 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"216.9 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"220.4 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"247.6 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"293.5 ft. DSZ - Deposits Settled Other, 10 %of cross sectional area, at 06 o'clock, , within 8 inches of joint: YES, Start326.4 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish326.4 ft. DSZ - Deposits Settled Other, 10 %of cross sectional area, at 06 o'clock, , within 8 inches of joint: YES, Finish332.3 ft. AMH - Downstream Manhole, Survey Ends - 02 0163332.3 ft. MGO - General Observation - CAPPED LATERAL 3 O'CLOCK @ MH332.3 ft. MGO - General Observation - CONNECTION AT MH 9 O'CLOCK CAPPED

Observation photos (5)

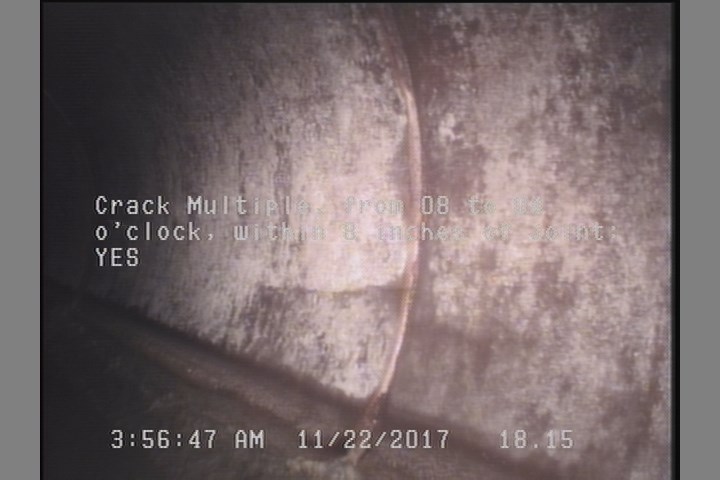

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

    18 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

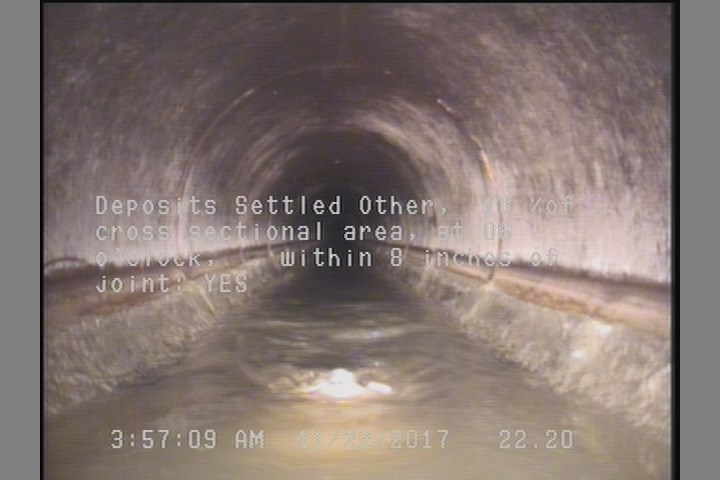

  • Deposits Settled Other, 10 %of cross sectional area, at 06 o'clock, , within 8 inches of joint: YES

    22.2 ft. - Deposits Settled Other, 10 %of cross sectional area, at 06 o'clock, , within 8 inches of joint: YES

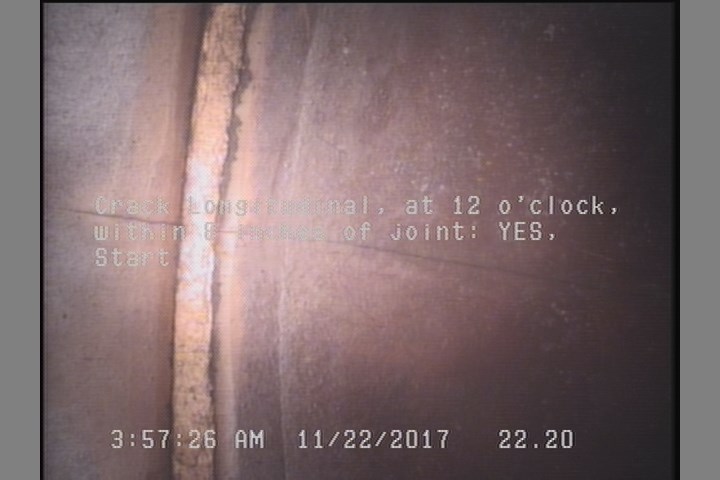

  • Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start

    22.2 ft. - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start

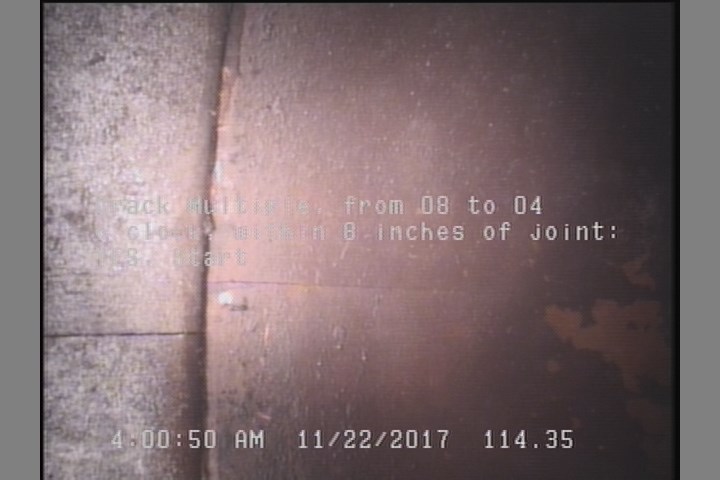

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    114.4 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

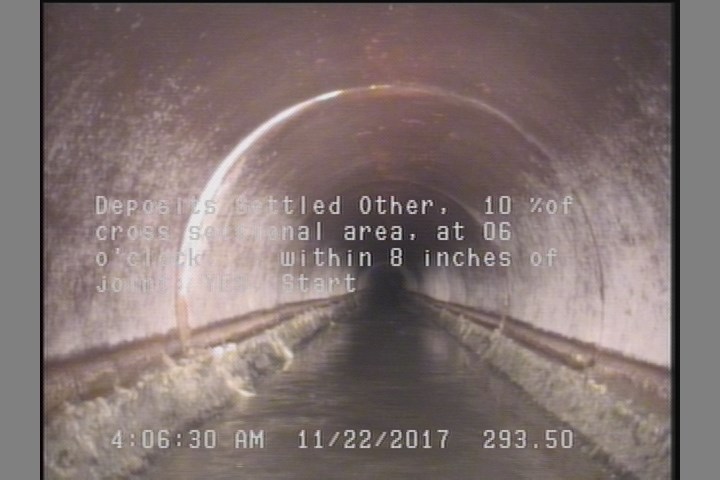

  • Deposits Settled Other, 10 %of cross sectional area, at 06 o'clock, , within 8 inches of joint: YES, Start

    293.5 ft. - Deposits Settled Other, 10 %of cross sectional area, at 06 o'clock, , within 8 inches of joint: YES, Start

All inspections of P02467Work order 668770

Observations (24)

DistanceCodeObservation
326.4CM—
106.8TF—
22.2DSZ—
0MGOCONNECTION AT MH 9 O'CLOCK
0MGOCONNECTION AT MH 3 O'CLOCK CAPPED
220.4TF—
247.6TFC—
326.4DSZ—
162.1TFC—
104.1TF—
114.4CM—
18CM—
22.2CL—
332.3AMH02 0163
293.5DSZ—
0MWM—
159.1TFC—
177.4TFC—
332.3MGOCAPPED LATERAL 3 O'CLOCK @ MH
332.3MGOCONNECTION AT MH 9 O'CLOCK CAPPED
216.9TF—
0AMH02 0164
0MWL—
114.4CL—

Properties (6)

additional_info
SC346275
custom_field_two
3
customer
LACSD
datetime
2017-11-22T03:51:25-08:00
documentation
PROPIPE
is_lateral_inspection
false
