Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Oct 24, 2017, 08:26 AM

  • H 1511_H 1510 _241017_005024.mp4

Date
10/24/2017
W/O
668649
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z01206
PipeID
P16471
Time
1:26 AM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K5036
Sewer Name
H JOINT OUTFALL H - UNIT 8M RELIEF
City
WEST COVINA
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 22
Page No.
31
Purpose
Routine Assessment
Project
WO_668649_TV22094_NOV2017
Sewer Type
Gravity
Material
Reinforced Concrete Pipe
Shape
Circular
Height
27 in.
Width
27 in.
Upstream MH
H 1511
Downstream MH
H 1510
Dir. of Survey
Downstream
Length Surveyed
503.7 ft.
Total Length
503.7 ft.
Structural Index
3
Structural Quick
3S2S
Structural Rating
500
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
500
Pipe schematic from manhole H 1511 to H 1510
MH: H 1511MH: H 1510downstream0 ft. MWL - Water Level, 25 %of cross sectional area0 ft. MWM - Water Mark, 35 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - H 15112.5 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start2.5 ft. MGO - General Observation - MAG COAT2.5 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start503.7 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish503.7 ft. AMH - Downstream Manhole, Survey Ends - H 1510503.7 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish

Observation photos (2)

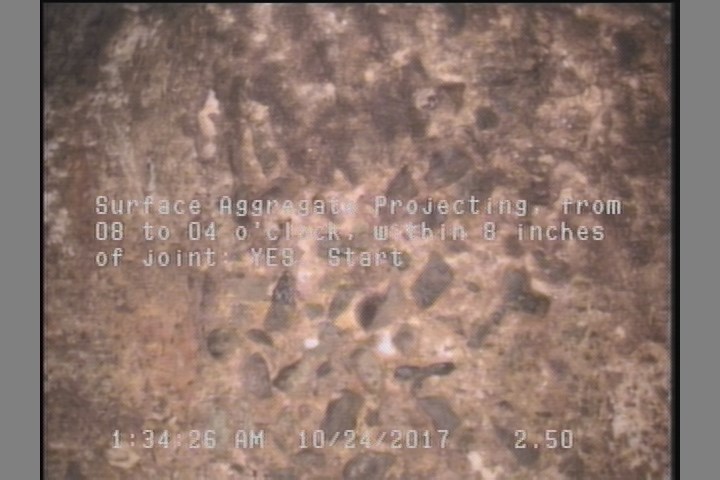

  • Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2.5 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

  • Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2.5 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

All inspections of P16471Work order 668649

Observations (9)

DistanceCodeObservation
2.5SAP—
503.7SSS—
503.7AMHH 1510
2.5MGOMAG COAT
0MWL—
503.7SAP—
0MWM—
0AMHH 1511
2.5SSS—

Properties (7)

additional_info
SC346199
custom_field_two
3
customer
LACSD
datetime
2017-10-24T01:26:19-07:00
documentation
PROPIPE
is_lateral_inspection
false
year_laid
30047
