Wastewater/Activity/PacpInspection/1.0Nov 6, 2017, 12:33 PM
05 1133A_05 1133 _11062017_043333.mp4
- Date
- 11/06/2017
- W/O
- 668623
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00436
- PipeID
- P06370
- Time
- 4:33 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5209
- Sewer Name
- 05 EAST ROSECRANS AVENUE TRUNK, SECTION 1
- City
- GARDENA
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 05
- Page No.
- 18
- Purpose
- Routine Assessment
- Project
- WO_668623_TV05022_NOV2017
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 18 in.
- Width
- 18 in.
- Upstream MH
- 05 1133A
- Downstream MH
- 05 1133
- Dir. of Survey
- Downstream
- Length Surveyed
- 76.1 ft.
- Total Length
- 76.1 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 2E00
- O&M Rating
- 60
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 60
Observation photos (3)

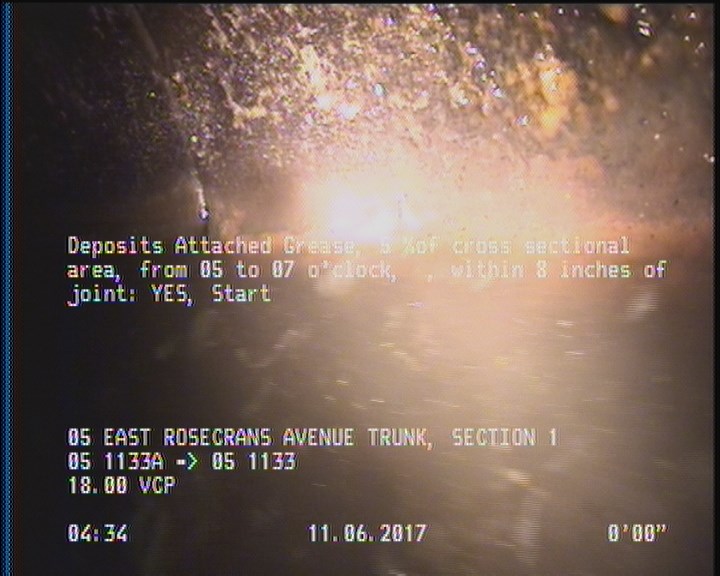

0 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start

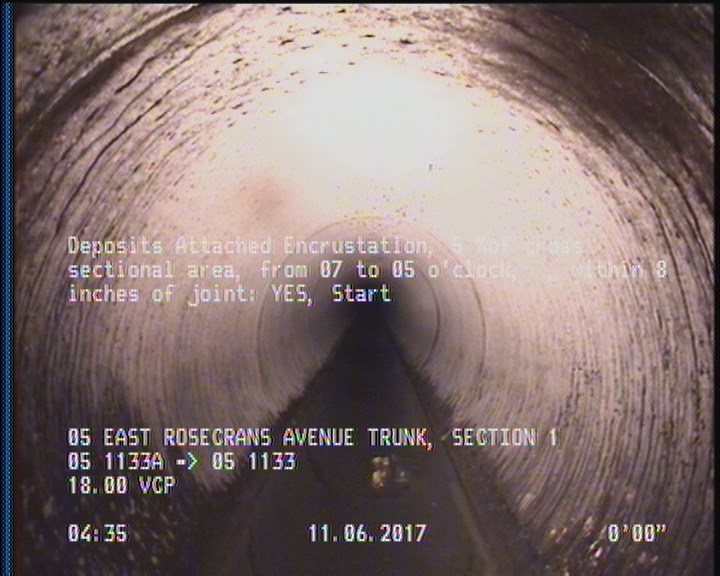

0 ft. - Deposits Attached Encrustation, 5 %of cross sectional area, from 07 to 05 o'clock, , within 8 inches of joint: YES, Start

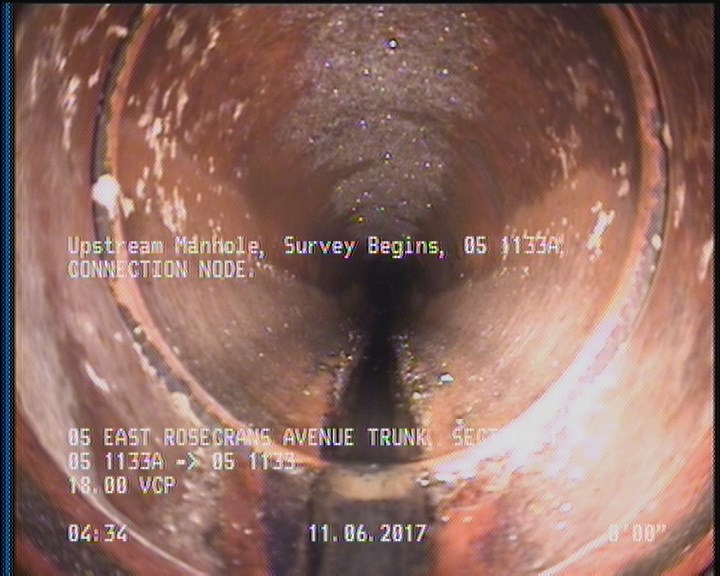

0 ft. - Upstream Manhole, Survey Begins - 05 1133A, CONNECTION NODE.
Observations (8)
| Distance | Code | Observation |
|---|---|---|
| 0 | DAGS | — |
| 0 | DAE | — |
| 0 | AMH | 05 1133A, CONNECTION NODE. |
| 74.9 | DAGS | — |
| 0 | MWL | — |
| 74.9 | DAE | — |
| 0 | MWM | — |
| 76.1 | AMH | 05 1133 |
Properties (6)
- additional_info
- SC346079
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2017-11-06T04:33:10-08:00
- documentation
- PRO PIPE
- is_lateral_inspection
- false
