Wastewater/Activity/PacpInspection/1.0Oct 4, 2017, 06:41 AM
20 0258_20 0257_10032017_234150.mp4
- Date
- 10/03/2017
- W/O
- 663234
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00753
- PipeID
- P19225
- Time
- 11:41 PM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4740
- Sewer Name
- 20 35TH STREET EAST TRUNK
- City
- PALMDALE
- Loc. details
- Easement/Right of Way
- Location Code
- D
- Use of Sewer
- Sanitary Sewer
- District
- District 20
- Page No.
- 13
- Purpose
- Routine Assessment
- Project
- WO_663234_TV20009_OCT2017
- Sewer Type
- Gravity
- Material
- NRCP
- Shape
- Circular
- Height
- 12 in.
- Width
- 12 in.
- Upstream MH
- 20 0258
- Downstream MH
- 20 0257
- Dir. of Survey
- Downstream
- Length Surveyed
- 378.4 ft.
- Total Length
- 378.4 ft.
- Structural Index
- 3
- Structural Quick
- 3N2K
- Structural Rating
- 349
- O&M Index
- 2
- O&M Quick
- 412N
- O&M Rating
- 154
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 503
Observation photos (3)

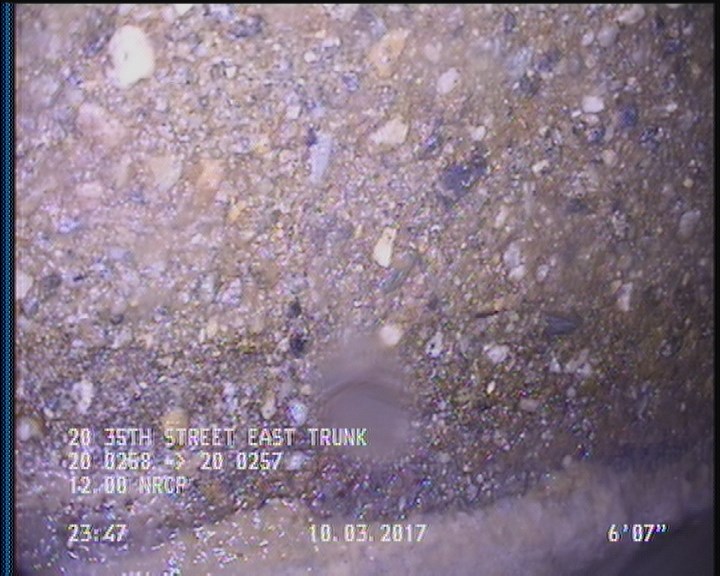

2 ft. - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

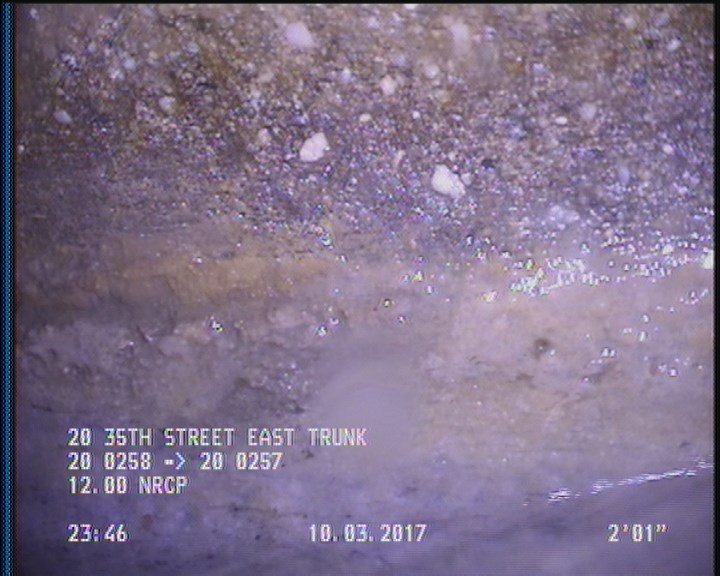

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

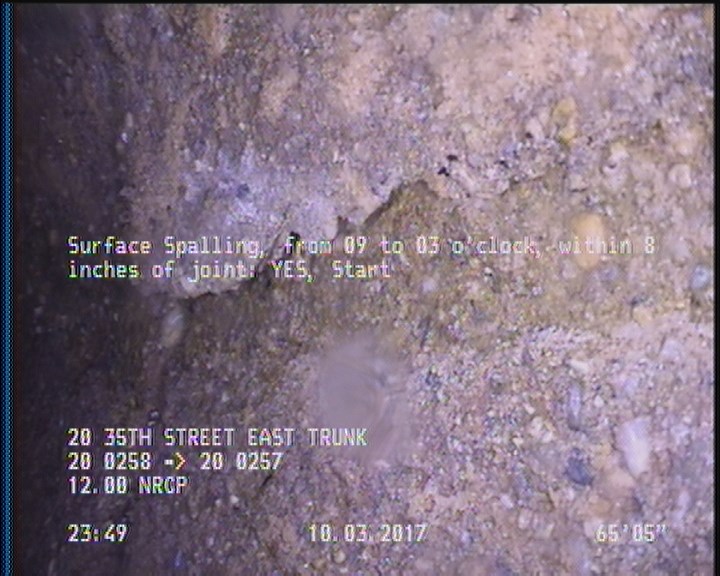

65.4 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start
Observations (15)
| Distance | Code | Observation |
|---|---|---|
| 378.4 | AMH | 20 0257 |
| 376.2 | SAP | — |
| 2 | SAP | — |
| 19.3 | TFC | — |
| 0 | MWL | — |
| 2 | DAGS | — |
| 119.2 | TFC | — |
| 0 | AMH | 20 0258 |
| 0 | MWM | — |
| 376.2 | SSS | — |
| 376.2 | DAGS | — |
| 219.8 | TFC | — |
| 65.4 | SSS | — |
| 268.1 | TFC | — |
| 320.9 | TFC | — |
Properties (6)
- additional_info
- SC346054
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2017-10-03T23:41:30-07:00
- documentation
- PRO PIPE
- is_lateral_inspection
- false
