Wastewater/Activity/PacpInspection/1.0Oct 6, 2017, 07:09 AM
20 0266_20 0265_10062017_000953.mp4
- Date
- 10/06/2017
- W/O
- 663234
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00753
- PipeID
- P19233
- Time
- 12:09 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4741
- Sewer Name
- 20 35TH STREET EAST TRUNK
- City
- PALMDALE
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 20
- Page No.
- 13
- Purpose
- Routine Assessment
- Project
- WO_663234_TV20009_OCT2017
- Sewer Type
- Gravity
- Material
- NRCP
- Shape
- Circular
- Height
- 10 in.
- Width
- 10 in.
- Upstream MH
- 20 0266
- Downstream MH
- 20 0265
- Dir. of Survey
- Downstream
- Length Surveyed
- 357 ft.
- Total Length
- 357 ft.
- Structural Index
- 3
- Structural Quick
- 3M2K
- Structural Rating
- 331
- O&M Index
- 2
- O&M Quick
- 412M
- O&M Rating
- 146
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 477
Observation photos (3)

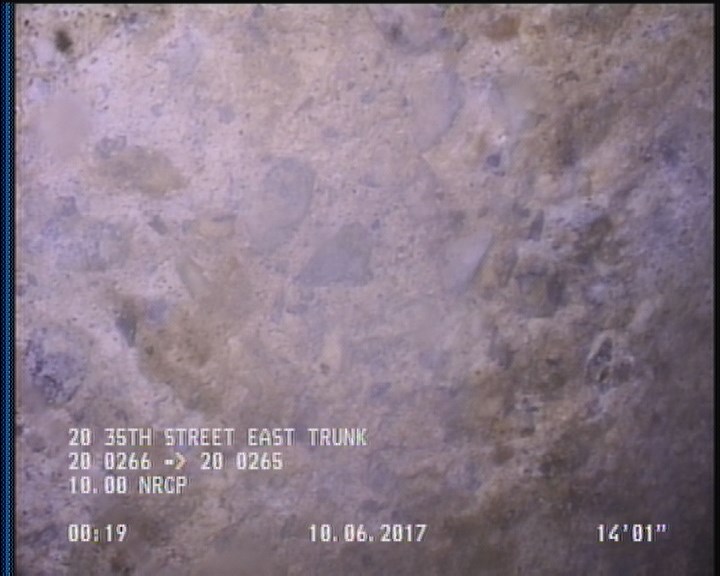

2 ft. - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

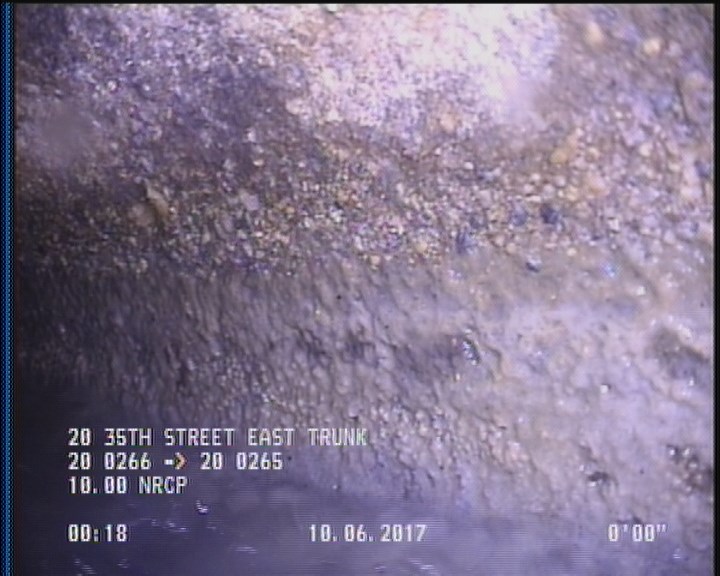

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

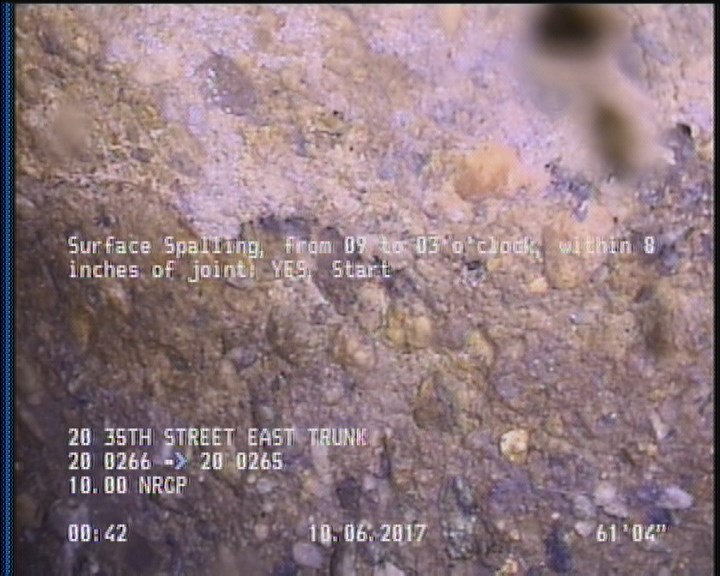

61.3 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start
Observations (18)
| Distance | Code | Observation |
|---|---|---|
| 70.2 | TFC | — |
| 355.9 | DAGS | — |
| 2 | SAP | — |
| 357 | AMH | 20 0265 |
| 316.8 | TFC | — |
| 61.3 | SSS | — |
| 355.9 | SSS | — |
| 218.1 | TFC | — |
| 0 | MWL | — |
| 0 | MWM | — |
| 118.6 | TFC | — |
| 166.2 | TFC | — |
| 0 | AMH | 20 0266 |
| 355.9 | SAP | — |
| 2 | DAGS | — |
| 265.6 | TFA | — |
| 0 | MGO | ACTIVE CONNECTION AT MH 3 O'CLOCK |
| 18.1 | TFC | — |
Properties (6)
- additional_info
- SC346055
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2017-10-06T00:09:24-07:00
- documentation
- PRO PIPE
- is_lateral_inspection
- false
