Wastewater/Activity/PacpInspection/1.0Oct 6, 2017, 06:02 AM
20 0262_20 0261_10052017_230333.mp4
- Date
- 10/05/2017
- W/O
- 663234
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00753
- PipeID
- P19229
- Time
- 11:02 PM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4741
- Sewer Name
- 20 35TH STREET EAST TRUNK
- City
- PALMDALE
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 20
- Page No.
- 13
- Purpose
- Routine Assessment
- Project
- WO_663234_TV20009_OCT2017
- Sewer Type
- Gravity
- Material
- NRCP
- Shape
- Circular
- Height
- 10 in.
- Width
- 10 in.
- Upstream MH
- 20 0262
- Downstream MH
- 20 0261
- Dir. of Survey
- Downstream
- Length Surveyed
- 334.2 ft.
- Total Length
- 334.2 ft.
- Structural Index
- 3
- Structural Quick
- 3L2L
- Structural Rating
- 324
- O&M Index
- 2
- O&M Quick
- 2L00
- O&M Rating
- 132
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 456
Observation photos (3)

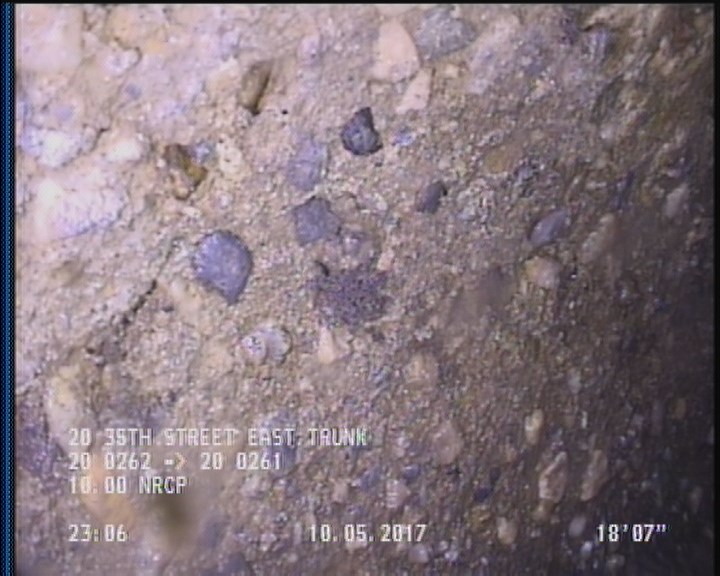

2 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

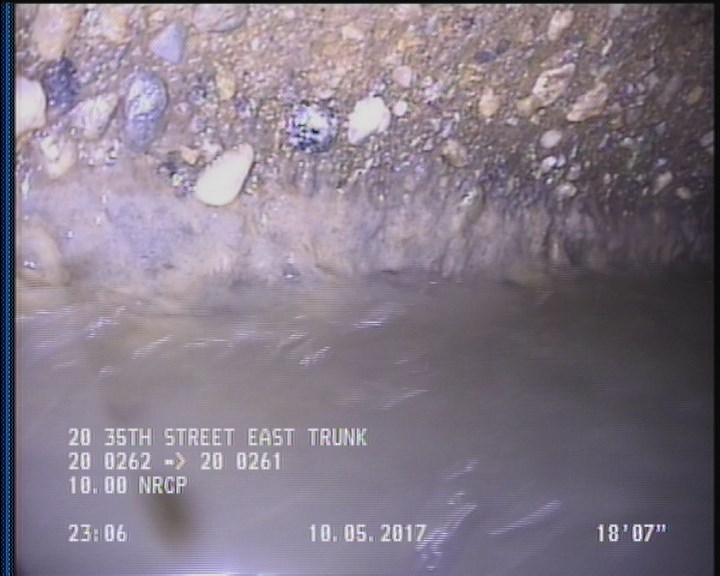

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

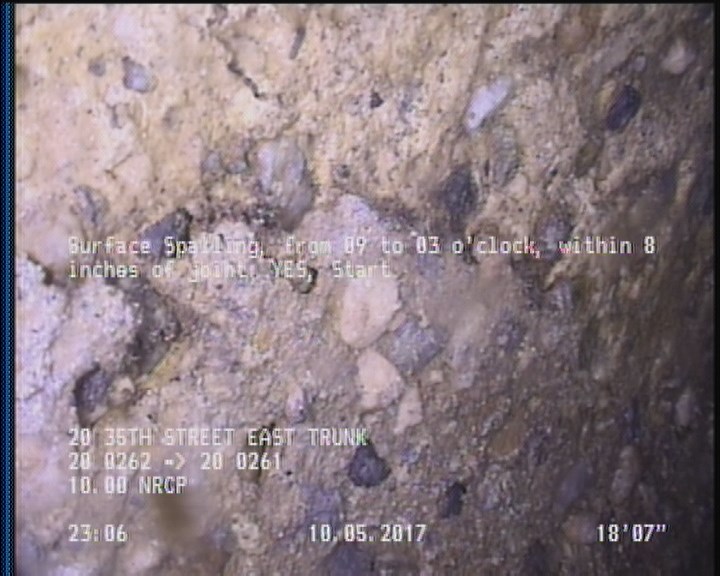

18.6 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start
Observations (18)
| Distance | Code | Observation |
|---|---|---|
| 18.6 | SSS | — |
| 0 | AMH | 20 0262 |
| 53.8 | TFC | — |
| 0 | MGO | ACTIVE CONNECTION AT MH 3 O'CLOCK |
| 334.2 | AMH | 20 0261 |
| 305.7 | TFC | — |
| 253.3 | TFC | — |
| 2 | SAP | — |
| 0 | MWL | — |
| 332.2 | SAP | — |
| 154.1 | TFC | — |
| 332.2 | SSS | — |
| 2 | DAGS | — |
| 205.7 | TFC | — |
| 105.8 | TFC | — |
| 5.7 | TFC | — |
| 332.2 | DAGS | — |
| 0 | MWM | — |
Properties (6)
- additional_info
- SC346055
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2017-10-05T23:02:58-07:00
- documentation
- PRO PIPE
- is_lateral_inspection
- false
