Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jun 23, 2016, 06:14 AM

  • B 0990_B 0989 _22062016_231357.mp4

Date
06/22/2016
W/O
563409
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00925
PipeID
P21726
Time
11:14 PM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K3540
Sewer Name
B JOINT OUTFALL B - UNIT 8G RELIEF
City
DUARTE
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 22
Page No.
08
Purpose
Routine Assessment
Project
WO_563409_TV22070_JUNE2016
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
21 in.
Width
21 in.
Upstream MH
B 0990
Downstream MH
B 0989
Dir. of Survey
Downstream
Length Surveyed
198.1 ft.
Total Length
198.1 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
2
O&M Quick
2G00
O&M Rating
78
Overall Index
2
Overall Quick
—
Overall Rating
78
Pipe schematic from manhole B 0990 to B 0989
MH: B 0990MH: B 0989downstream0 ft. AMH - Upstream Manhole, Survey Begins - B 09900 ft. MGO - General Observation - COCKROACHES IN MANHOLE0 ft. MWM - Water Mark, 25 %of cross sectional area0 ft. MWL - Water Level, 15 %of cross sectional area2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start196.6 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish198.1 ft. AMH - Downstream Manhole, Survey Ends - B 0989198.1 ft. MGO - General Observation - COCKROACHES IN MANHOLE

Observation photos (3)

  • General Observation - COCKROACHES IN MANHOLE

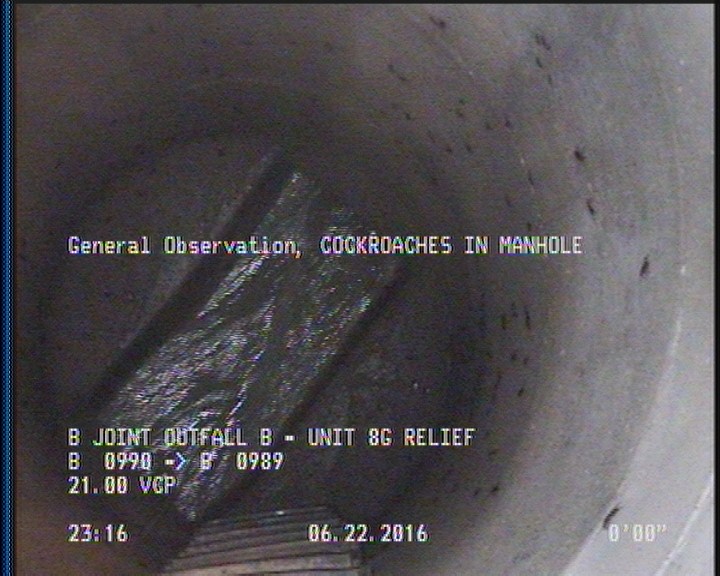

    0 ft. - General Observation - COCKROACHES IN MANHOLE

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

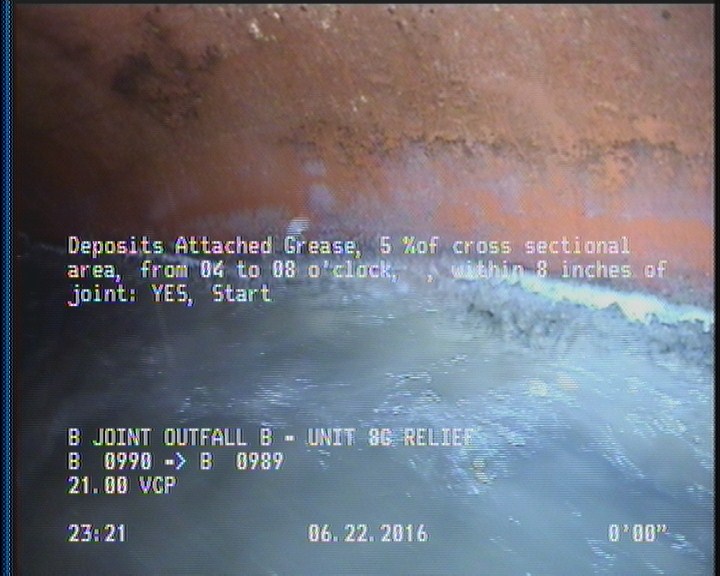

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

  • General Observation - COCKROACHES IN MANHOLE

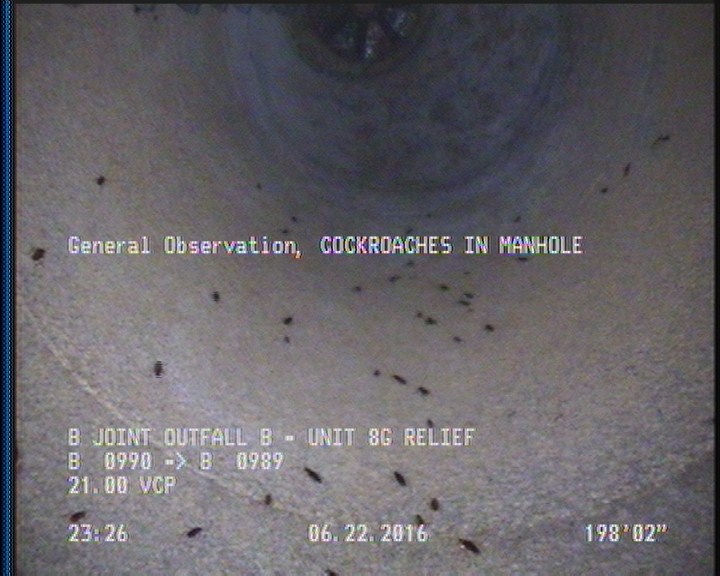

    198.1 ft. - General Observation - COCKROACHES IN MANHOLE

All inspections of P21726Work order 563409

Observations (8)

DistanceCodeObservation
0AMHB 0990
198.1AMHB 0989
196.6DAGS—
198.1MGOCOCKROACHES IN MANHOLE
0MGOCOCKROACHES IN MANHOLE
0MWM—
2DAGS—
0MWL—

Properties (7)

additional_info
SC305774
custom_field_two
4
customer
LACSD
datetime
2016-06-22T23:14:06-07:00
documentation
PRO PIPE
is_lateral_inspection
false
year_laid
35802
