Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jun 21, 2016, 10:28 AM

  • B 1000_B 0999 _21062016_032844.mp4

Date
06/21/2016
W/O
563409
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00925
PipeID
P21736
Time
3:28 AM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K3537
Sewer Name
B JOINT OUTFALL B - UNIT 8G RELIEF
City
DUARTE
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 22
Page No.
08
Purpose
Routine Assessment
Project
WO_563409_TV22070_JUNE2016
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
21 in.
Width
21 in.
Upstream MH
B 1000
Downstream MH
B 0999
Dir. of Survey
Downstream
Length Surveyed
347.9 ft.
Total Length
347.9 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
2
O&M Quick
2P00
O&M Rating
170
Overall Index
2
Overall Quick
—
Overall Rating
170
Pipe schematic from manhole B 1000 to B 0999
MH: B 1000MH: B 0999downstream0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - B 10000 ft. MGO - General Observation - COCKROACHES IN MANHOLE2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start268.3 ft. DSZ - Deposits Settled Other, 10 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start346.7 ft. MGO - General Observation - COCKROACHES IN MANHOLE346.7 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish346.7 ft. DSZ - Deposits Settled Other, 10 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Finish347.9 ft. AMH - Downstream Manhole, Survey Ends - B 0999

Observation photos (4)

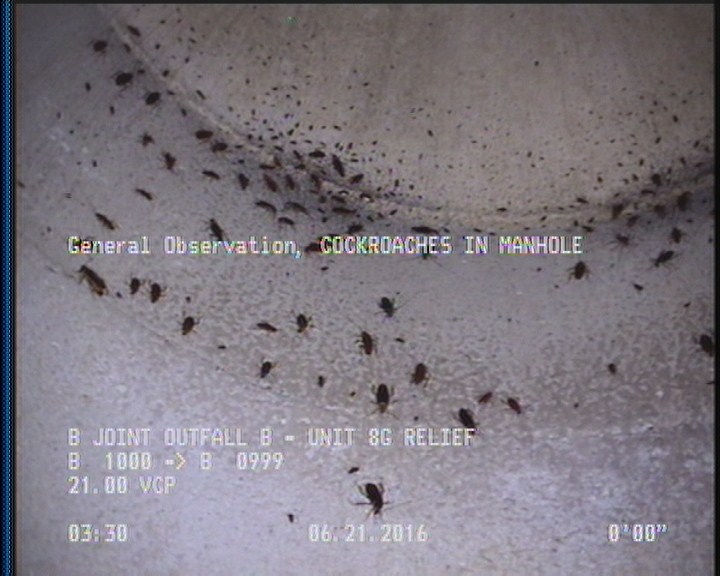

  • General Observation - COCKROACHES IN MANHOLE

    0 ft. - General Observation - COCKROACHES IN MANHOLE

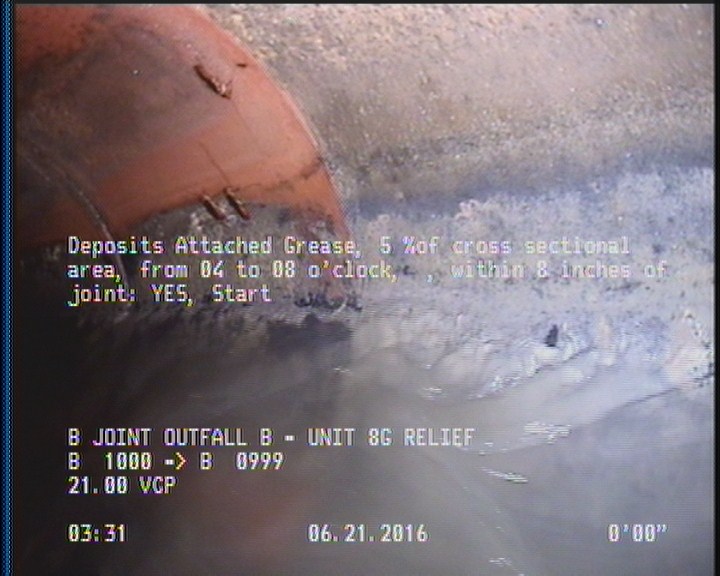

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

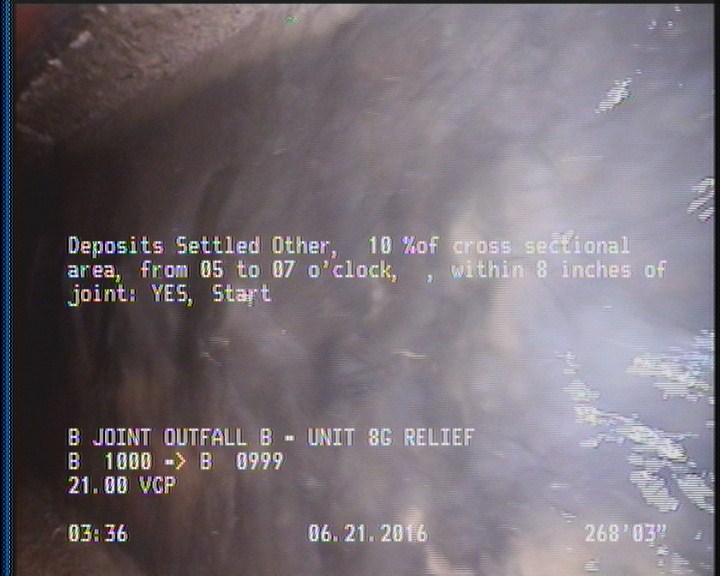

  • Deposits Settled Other, 10 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start

    268.3 ft. - Deposits Settled Other, 10 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start

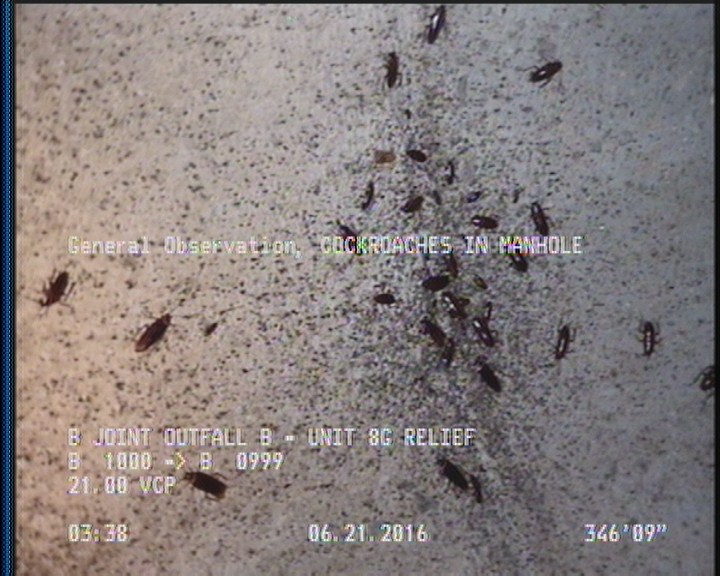

  • General Observation - COCKROACHES IN MANHOLE

    346.7 ft. - General Observation - COCKROACHES IN MANHOLE

All inspections of P21736Work order 563409

Observations (10)

DistanceCodeObservation
0MWL—
0MWM—
2DAGS—
346.7MGOCOCKROACHES IN MANHOLE
347.9AMHB 0999
268.3DSZ—
0AMHB 1000
0MGOCOCKROACHES IN MANHOLE
346.7DAGS—
346.7DSZ—

Properties (7)

additional_info
SC305771
custom_field_two
4
customer
LACSD
datetime
2016-06-21T03:28:17-07:00
documentation
PRO PIPE
is_lateral_inspection
false
year_laid
35802
