Wastewater/Activity/PacpInspection/1.0Oct 3, 2018, 05:24 AM
29 0469C 0674 District 29_112118111234.mpg
- Date
- 10/02/2018
- W/O
- 729502
- Weather
- Dry
- Operator/Surveyor
- B. FUGATE
- Sewer ID
- Z01116
- PipeID
- P24515
- Time
- 10:24 PM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K6123
- Sewer Name
- 29 SPRING STREET SEWER
- City
- SIGNAL HILL
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 29
- Page No.
- 02
- Purpose
- Routine Assessment
- Project
- RFIR_WO_729502_TV29062_OCT2018
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 8 in.
- Width
- 8 in.
- Upstream MH
- 29 0469
- Downstream MH
- C 0674
- Dir. of Survey
- Downstream
- Length Surveyed
- 259.1 ft.
- Total Length
- 259.1 ft.
- Structural Index
- 2
- Structural Quick
- 2711
- Structural Rating
- 15
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 15
Observation photos (3)

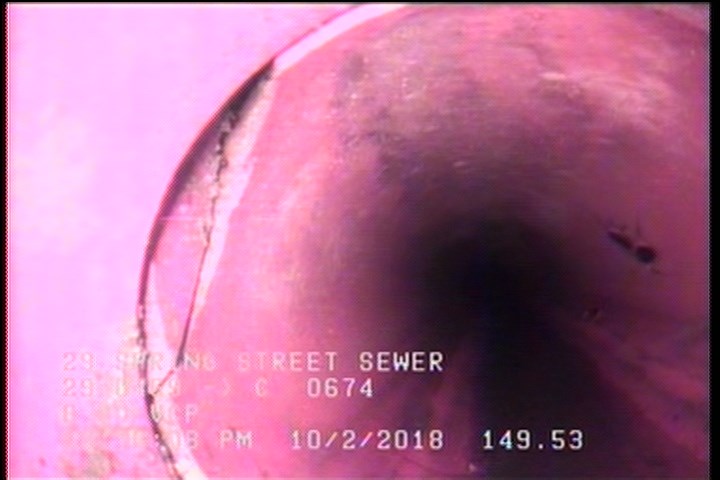

149.5 ft. - Fracture Circumferential, from 09 to 11 o'clock, within 8 inches of joint: YES

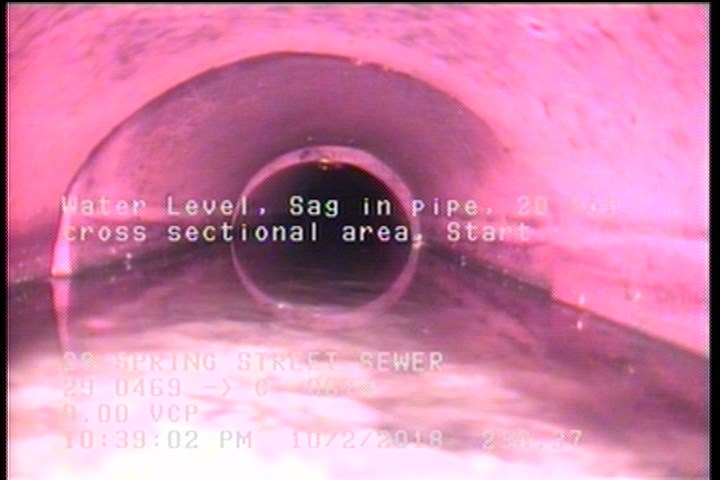

230.4 ft. - Water Level, Sag in pipe, 20 %of cross sectional area, Start

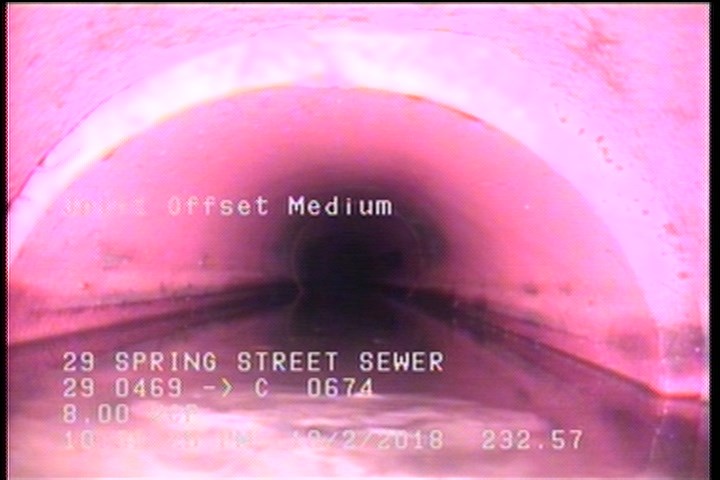

232.6 ft. - Joint Offset Medium
Observations (11)
| Distance | Code | Observation |
|---|---|---|
| 230.4 | MWLS | — |
| 0 | MWL | — |
| 0 | MWM | — |
| 134 | TF | — |
| 149.5 | FC | — |
| 0 | AMH | 29 0469 |
| 175.8 | TF | — |
| 259.1 | AOC | C 0674 |
| 232.6 | JOM | — |
| 259.1 | MWLS | — |
| 36 | TF | — |
Properties (4)
- additional_info
- SC364843
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2018-10-02T22:24:00-07:00
