Wastewater/Activity/PacpInspection/1.0Oct 3, 2018, 05:48 AM
29 013229 0131 District 29_112118120523.mpg
- Date
- 10/02/2018
- W/O
- 729502
- Weather
- Dry
- Operator/Surveyor
- B. FUGATE
- Sewer ID
- Z01116
- PipeID
- P24024
- Time
- 10:48 PM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K6123
- Sewer Name
- 29 SPRING STREET SEWER
- City
- SIGNAL HILL
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 29
- Page No.
- 02
- Purpose
- Routine Assessment
- Project
- RFIR_WO_729502_TV29062_OCT2018
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 8 in.
- Width
- 8 in.
- Upstream MH
- 29 0132
- Downstream MH
- 29 0131
- Dir. of Survey
- Downstream
- Length Surveyed
- 310.9 ft.
- Total Length
- 310.9 ft.
- Structural Index
- 3
- Structural Quick
- 513J
- Structural Rating
- 172
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 172
Observation photos (4)

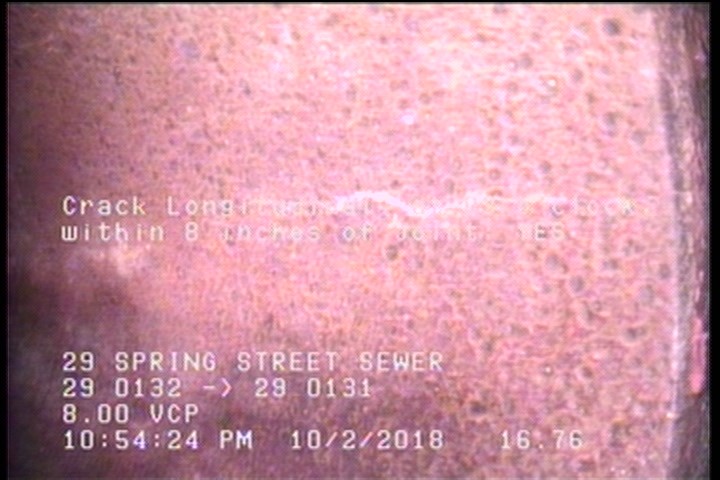

16.8 ft. - Crack Longitudinal, at 03 o'clock, within 8 inches of joint: YES

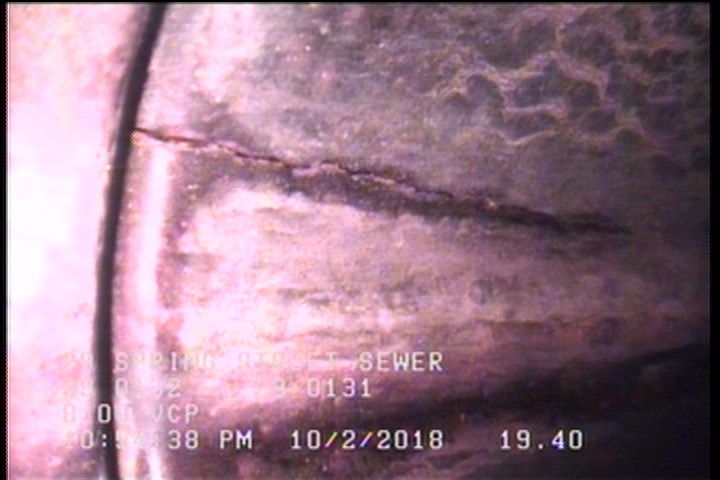

19.4 ft. - Fracture Longitudinal, at 09 o'clock, within 8 inches of joint: YES

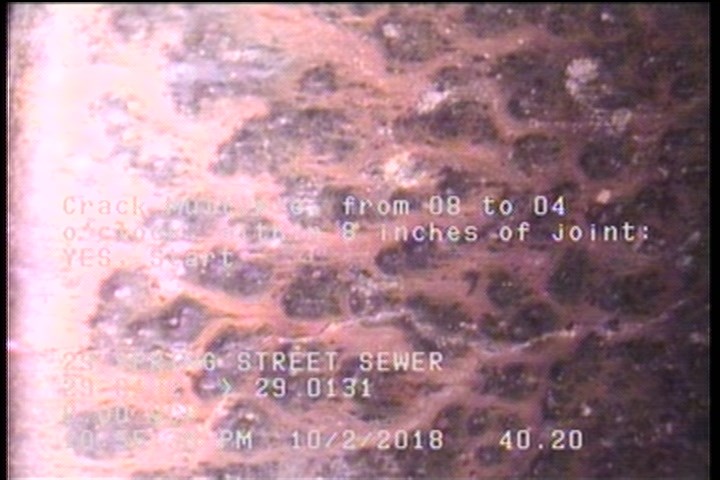

40.2 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

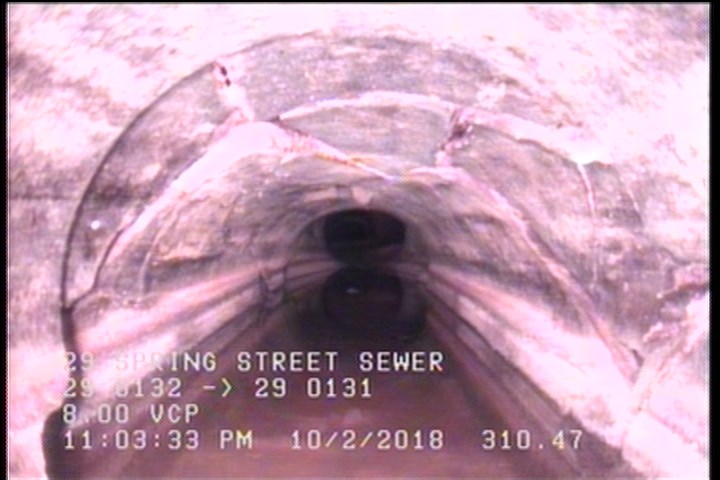

310.5 ft. - Broken, from 07 to 05 o'clock, within 8 inches of joint: YES
Observations (16)
| Distance | Code | Observation |
|---|---|---|
| 254.3 | TB | — |
| 0 | MWL | — |
| 117.5 | TFC | — |
| 206.5 | TFC | — |
| 168.3 | TF | — |
| 76.2 | TF | — |
| 53.6 | TF | — |
| 40.2 | CM | — |
| 0 | MWM | — |
| 310.5 | CM | — |
| 0 | AMH | 29 0132 |
| 310.9 | AMH | 29 0131 ZOOMED IN |
| 55.9 | TFC | — |
| 16.8 | CL | — |
| 19.4 | FL | — |
| 310.5 | B | — |
Properties (4)
- additional_info
- SC364843
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2018-10-02T22:48:00-07:00
