Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Oct 2, 2018, 04:42 AM

  • 29 0467_29 0466 _01102018_214306.mp4

Date
10/01/2018
W/O
729465
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z01090
PipeID
P24511
Time
9:42 PM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K6120
Sewer Name
29 ALAMITOS PUMPING PLANT SEWER
City
SIGNAL HILL
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 29
Page No.
04
Purpose
Routine Assessment
Project
RFIR_WO_729465_TV29104_OCT2018
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
8 in.
Width
8 in.
Upstream MH
29 0467
Downstream MH
29 0466
Dir. of Survey
Downstream
Length Surveyed
252.5 ft.
Total Length
252.5 ft.
Structural Index
3
Structural Quick
3100
Structural Rating
3
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
3
Pipe schematic from manhole 29 0467 to 29 0466
MH: 29 0467MH: 29 0466downstream0 ft. MWM - Water Mark, 5 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 29 04670 ft. MWL - Water Level, 5 %of cross sectional area4.6 ft. TB - Tap Break-In, at 10 o'clock, -, within 8 inches of joint: NO, 6"4.6 ft. MGO - General Observation - HOLE AT BREAK IN CONNECTION4.6 ft. FS - Fracture Spiral, from 12 to 04 o'clock, within 8 inches of joint: YES6.9 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"14.6 ft. TF - Tap Factory Made, at 03 o'clock, -, within 8 inches of joint: NO, 6"71.5 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"111 ft. TS - Tap Saddle, at 09 o'clock, -, within 8 inches of joint: NO, 6"252.5 ft. AMH - Downstream Manhole, Survey Ends - 29 0466252.5 ft. MGO - General Observation - CONNECTION AT MH 3 O'CLOCK

Observation photos (2)

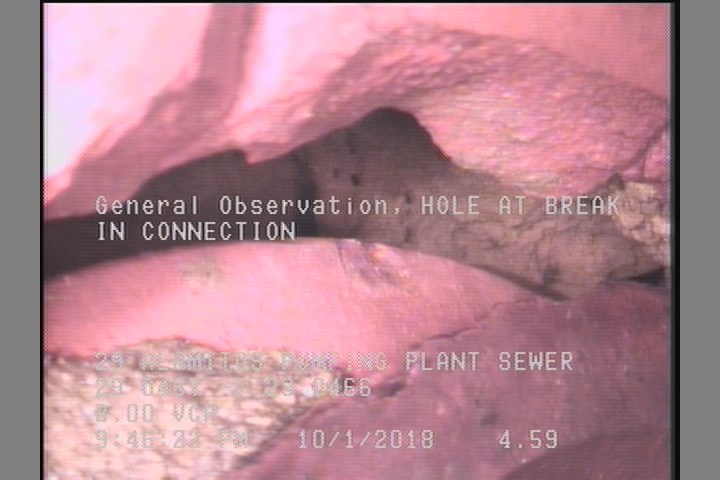

  • General Observation - HOLE AT BREAK IN CONNECTION

    4.6 ft. - General Observation - HOLE AT BREAK IN CONNECTION

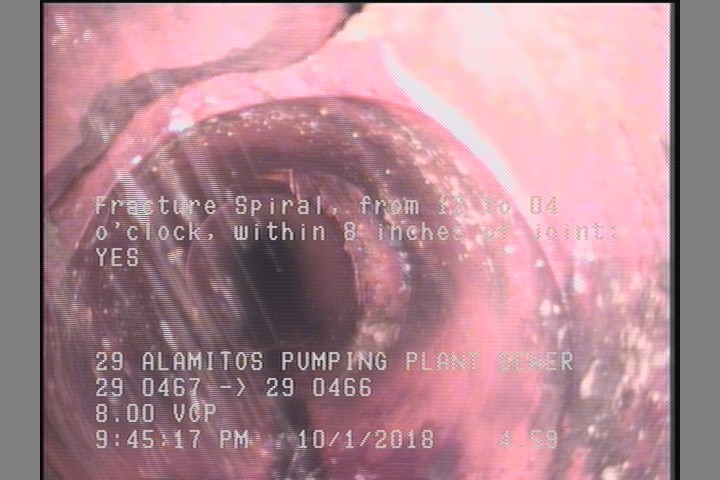

  • Fracture Spiral, from 12 to 04 o'clock, within 8 inches of joint: YES

    4.6 ft. - Fracture Spiral, from 12 to 04 o'clock, within 8 inches of joint: YES

All inspections of P24511Work order 729465

Observations (12)

DistanceCodeObservation
4.6TB—
0MWM—
111TS—
14.6TF—
252.5AMH29 0466
4.6MGOHOLE AT BREAK IN CONNECTION
252.5MGOCONNECTION AT MH 3 O'CLOCK
0AMH29 0467
6.9TF—
71.5TF—
4.6FS—
0MWL—

Properties (4)

additional_info
SC364840
custom_field_two
3
customer
LACSD
datetime
2018-10-01T21:42:32-07:00
