Wastewater/Activity/PacpInspection/1.0Oct 2, 2018, 05:35 AM
29 0502_29 0501 _01102018_223616.mp4
- Date
- 10/01/2018
- W/O
- 729465
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z01090
- PipeID
- P24551
- Time
- 10:35 PM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K6120
- Sewer Name
- 29 ALAMITOS PUMPING PLANT SEWER
- City
- SIGNAL HILL
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 29
- Page No.
- 04
- Purpose
- Routine Assessment
- Project
- RFIR_WO_729465_TV29104_OCT2018
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 8 in.
- Width
- 8 in.
- Upstream MH
- 29 0502
- Downstream MH
- 29 0501
- Dir. of Survey
- Downstream
- Length Surveyed
- 247.2 ft.
- Total Length
- 247.2 ft.
- Structural Index
- 3
- Structural Quick
- 413S
- Structural Rating
- 298
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 298
Observation photos (3)

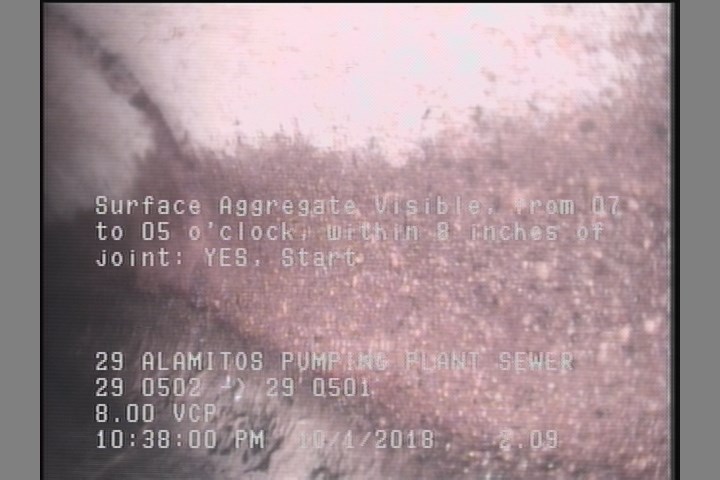

2.1 ft. - Surface Aggregate Visible, from 07 to 05 o'clock, within 8 inches of joint: YES, Start

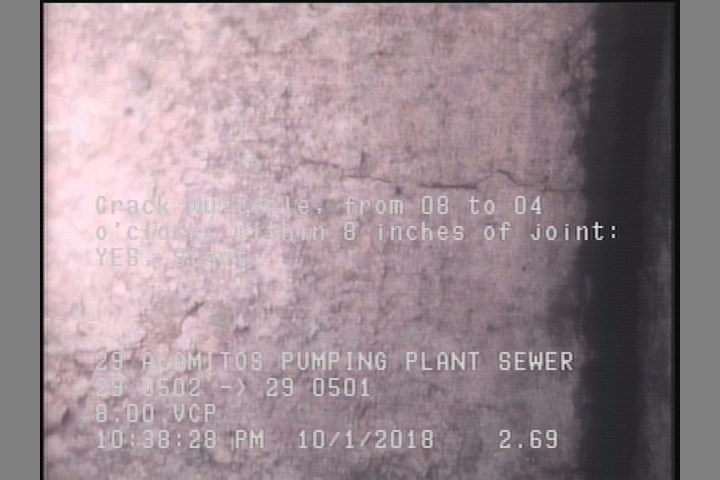

4.6 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

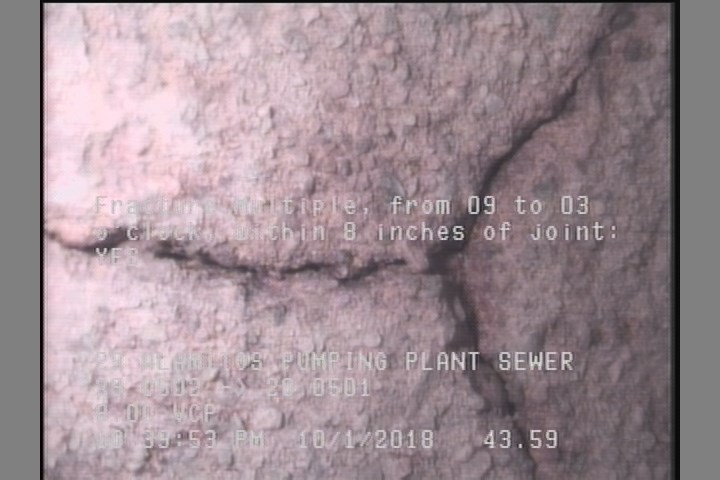

43.6 ft. - Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES
Observations (11)
| Distance | Code | Observation |
|---|---|---|
| 247.2 | SAV | — |
| 240.4 | TF | — |
| 0 | AMH | 29 0502 |
| 0 | MWM | — |
| 4.6 | CM | — |
| 43.6 | FM | — |
| 0 | MWL | — |
| 247.2 | CM | — |
| 2.1 | SAV | — |
| 0 | MMC | — |
| 247.2 | AMH | 29 0501 |
Properties (4)
- additional_info
- SC364840
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2018-10-01T22:35:51-07:00
