Wastewater/Activity/PacpInspection/1.0Oct 1, 2018, 10:37 AM
29 0407_29 0404 _01102018_033835.mp4
- Date
- 10/01/2018
- W/O
- 729465
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z01090
- PipeID
- P24444
- Time
- 3:37 AM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K6119
- Sewer Name
- 29 ALAMITOS PUMPING PLANT SEWER
- City
- SIGNAL HILL
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 29
- Page No.
- 04
- Purpose
- Routine Assessment
- Project
- RFIR_WO_729465_TV29104_OCT2018
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 8 in.
- Width
- 8 in.
- Upstream MH
- 29 0407
- Downstream MH
- 29 0404
- Dir. of Survey
- Downstream
- Length Surveyed
- 225.8 ft.
- Total Length
- 225.8 ft.
- Structural Index
- 3
- Structural Quick
- 4131
- Structural Rating
- 9
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 9
Observation photos (3)

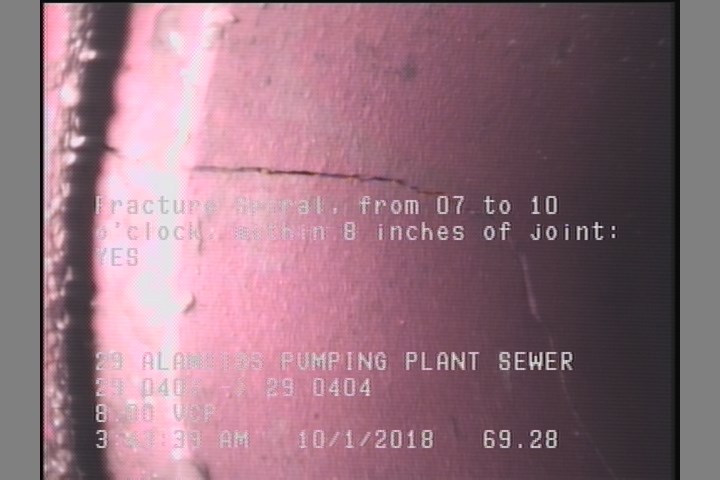

69.3 ft. - Fracture Spiral, from 07 to 10 o'clock, within 8 inches of joint: YES

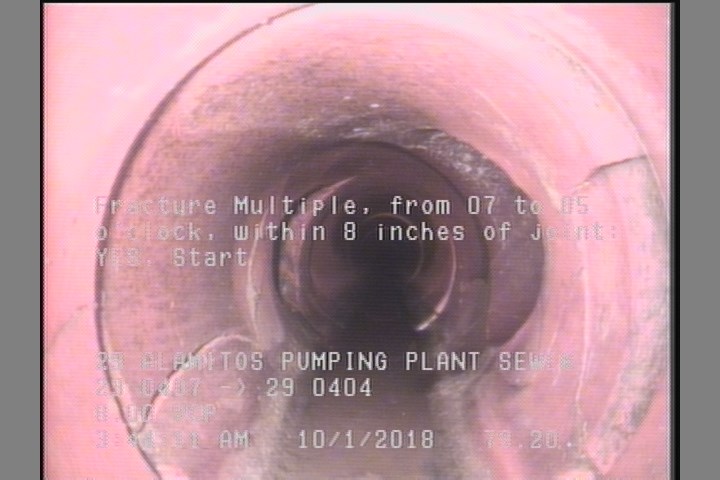

79.2 ft. - Fracture Multiple, from 07 to 05 o'clock, within 8 inches of joint: YES, Start

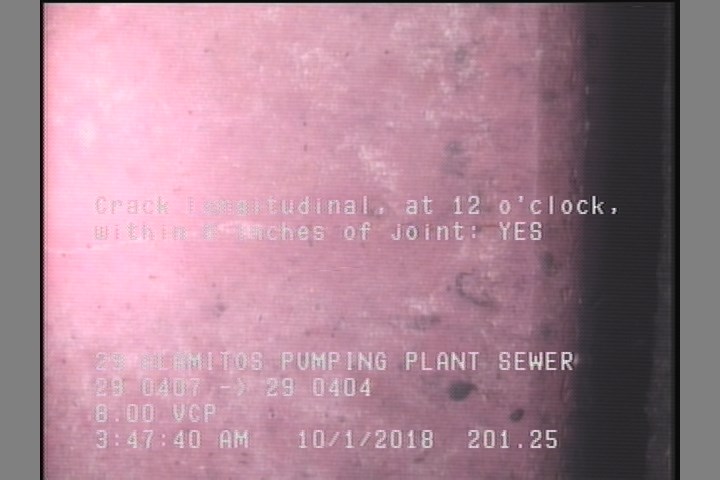

201.2 ft. - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES
Observations (10)
| Distance | Code | Observation |
|---|---|---|
| 201.2 | CL | — |
| 225.8 | AMH | 29 0404 |
| 0 | MWM | — |
| 80.7 | TF | — |
| 85.3 | FM | — |
| 81.6 | TF | — |
| 69.3 | FS | — |
| 0 | MWL | — |
| 0 | AMH | 29 0407 |
| 79.2 | FM | — |
Properties (3)
- additional_info
- SC364839
- customer
- LACSD
- datetime
- 2018-10-01T03:37:43-07:00
