Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Oct 2, 2018, 06:04 AM

  • 29 0409_29 0408 _01102018_230447.mp4

Date
10/01/2018
W/O
729465
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z01090
PipeID
P24446
Time
11:04 PM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K6120
Sewer Name
29 ALAMITOS PUMPING PLANT SEWER
City
SIGNAL HILL
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 29
Page No.
04
Purpose
Routine Assessment
Project
RFIR_WO_729465_TV29104_OCT2018
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
8 in.
Width
8 in.
Upstream MH
29 0409
Downstream MH
29 0408
Dir. of Survey
Downstream
Length Surveyed
294.1 ft.
Total Length
294.1 ft.
Structural Index
3
Structural Quick
4121
Structural Rating
6
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
6
Pipe schematic from manhole 29 0409 to 29 0408
MH: 29 0409MH: 29 0408downstream0 ft. MWM - Water Mark, 5 %of cross sectional area0 ft. MWL - Water Level, 5 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 29 04092.6 ft. FM - Fracture Multiple, from 07 to 05 o'clock, within 8 inches of joint: YES4.3 ft. TB - Tap Break-In, at 09 o'clock, -, within 8 inches of joint: NO, 6"5.1 ft. TF - Tap Factory Made, at 03 o'clock, -, within 8 inches of joint: NO, 6"33.3 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"45.9 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"48.6 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"86.7 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"88.9 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"126.9 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"129.6 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"162.3 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"166.7 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"208.4 ft. TF - Tap Factory Made, at 09 o'clock, -, within 8 inches of joint: NO, 6"210.7 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"245 ft. FC - Fracture Circumferential, from 09 to 10 o'clock, within 8 inches of joint: YES245 ft. TF - Tap Factory Made, at 09 o'clock, -, within 8 inches of joint: NO, 6"247.1 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"289.3 ft. TF - Tap Factory Made, at 03 o'clock, -, within 8 inches of joint: NO, 6"294 ft. MGO - General Observation - CONNECTION AT MH 9 O'CLOCK294.1 ft. AMH - Downstream Manhole, Survey Ends - 29 0408

Observation photos (3)

  • Fracture Multiple, from 07 to 05 o'clock, within 8 inches of joint: YES

    2.6 ft. - Fracture Multiple, from 07 to 05 o'clock, within 8 inches of joint: YES

  • Tap Break-In, at 09 o'clock, -, within 8 inches of joint: NO, 6"

    4.3 ft. - Tap Break-In, at 09 o'clock, -, within 8 inches of joint: NO, 6"

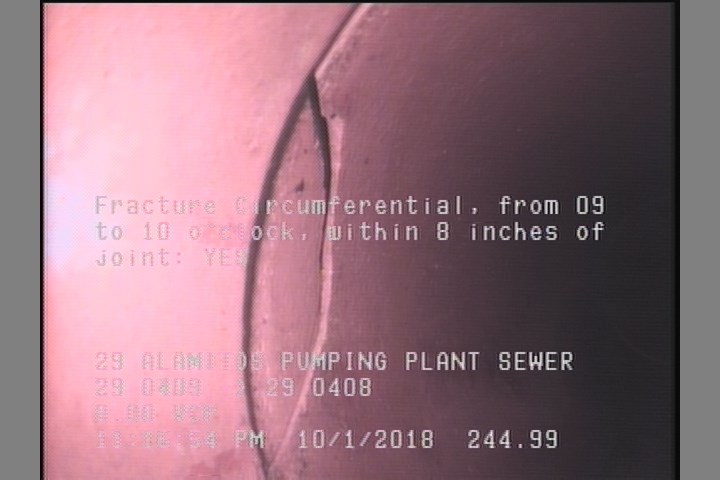

  • Fracture Circumferential, from 09 to 10 o'clock, within 8 inches of joint: YES

    245 ft. - Fracture Circumferential, from 09 to 10 o'clock, within 8 inches of joint: YES

All inspections of P24446Work order 729465

Observations (23)

DistanceCodeObservation
0MWM—
88.9TF—
210.7TF—
294MGOCONNECTION AT MH 9 O'CLOCK
48.6TF—
4.3TB—
129.6TF—
245FC—
86.7TF—
0MWL—
289.3TF—
208.4TF—
294.1AMH29 0408
45.9TFC—
247.1TF—
245TF—
126.9TF—
2.6FM—
166.7TF—
33.3TF—
162.3TF—
5.1TF—
0AMH29 0409

Properties (4)

additional_info
SC364840
custom_field_two
3
customer
LACSD
datetime
2018-10-01T23:04:19-07:00
