Wastewater/Activity/PacpInspection/1.0Oct 1, 2018, 09:09 AM
29 0452_29 0446 _01102018_021016.mp4
- Date
- 10/01/2018
- W/O
- 729465
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z01090
- PipeID
- P24492
- Time
- 2:09 AM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K6119
- Sewer Name
- 29 ALAMITOS PUMPING PLANT SEWER
- City
- SIGNAL HILL
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 29
- Page No.
- 04
- Purpose
- Routine Assessment
- Project
- RFIR_WO_729465_TV29104_OCT2018
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 8 in.
- Width
- 8 in.
- Upstream MH
- 29 0446
- Downstream MH
- 29 0452
- Dir. of Survey
- Upstream
- Length Surveyed
- 308.6 ft.
- Total Length
- 308.6 ft.
- Structural Index
- 2
- Structural Quick
- 3121
- Structural Rating
- 6
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 6
Observation photos (3)

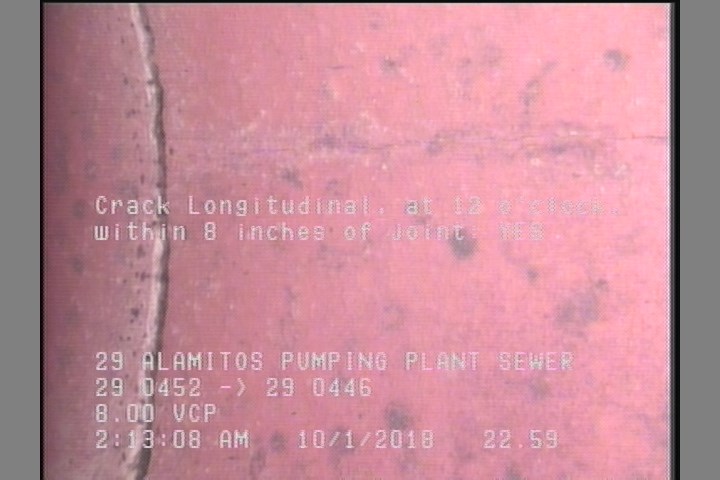

22.6 ft. - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES

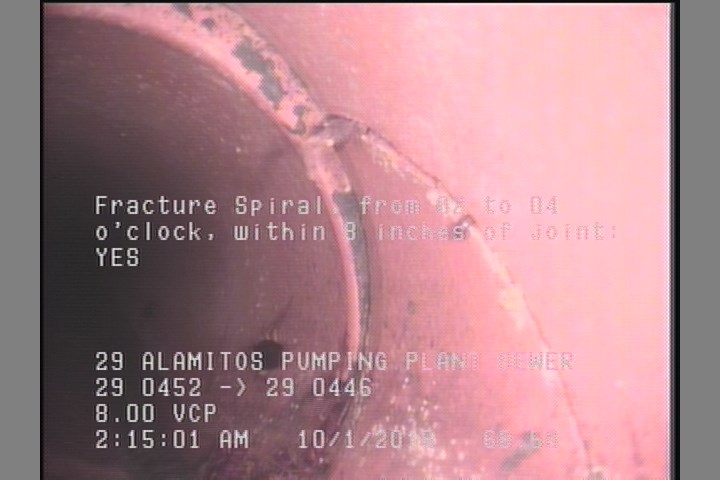

68.6 ft. - Fracture Spiral, from 02 to 04 o'clock, within 8 inches of joint: YES

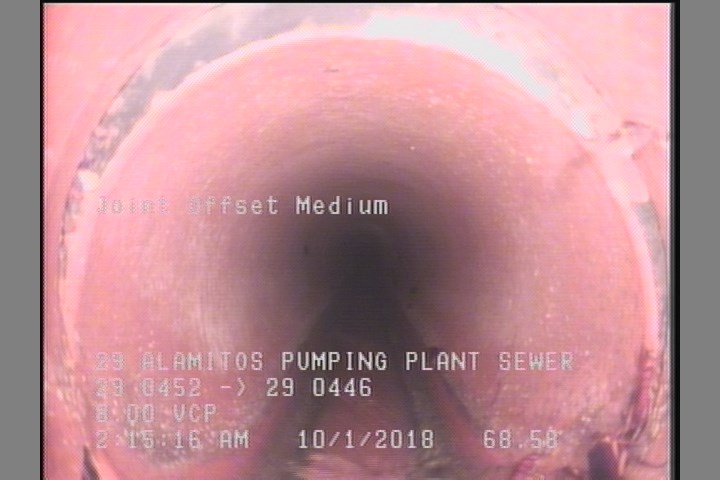

68.6 ft. - Joint Offset Medium
Observations (9)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWL | — |
| 0 | MGO | CONNECTION AT MH 9 O'CLOCK |
| 0 | AMH | 29 0446 |
| 22.6 | CL | — |
| 0 | MWM | — |
| 308.6 | AMH | 29 0452 |
| 68.6 | FS | — |
| 68.6 | JOM | — |
| 308.6 | MGO | CONNECTION AT MH 9 O'CLOCK |
Properties (4)
- additional_info
- SC364839
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2018-10-01T02:09:38-07:00
