Wastewater/Activity/PacpInspection/1.0Oct 8, 2018, 10:12 AM
08 047708 0645 District 08_112118135154.mpg
- Date
- 10/08/2018
- W/O
- 729415
- Weather
- Dry
- Operator/Surveyor
- B. FUGATE
- Sewer ID
- Z00025
- PipeID
- P20118
- Time
- 3:12 AM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K6132
- Sewer Name
- 08 216TH STREET RELOCATION TRUNK
- City
- CARSON
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 08
- Page No.
- 10
- Purpose
- Routine Assessment
- Project
- RFIR_WO_729415_TV08140_OCT2018
- Sewer Type
- Gravity
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 48 in.
- Width
- 48 in.
- Upstream MH
- 08 0477
- Downstream MH
- 08 0645
- Dir. of Survey
- Downstream
- Length Surveyed
- 21.9 ft.
- Total Length
- 21.9 ft.
- Structural Index
- 4
- Structural Quick
- 5334
- Structural Rating
- 27
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 4
- Overall Quick
- —
- Overall Rating
- 27
Observation photos (3)
3.2 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

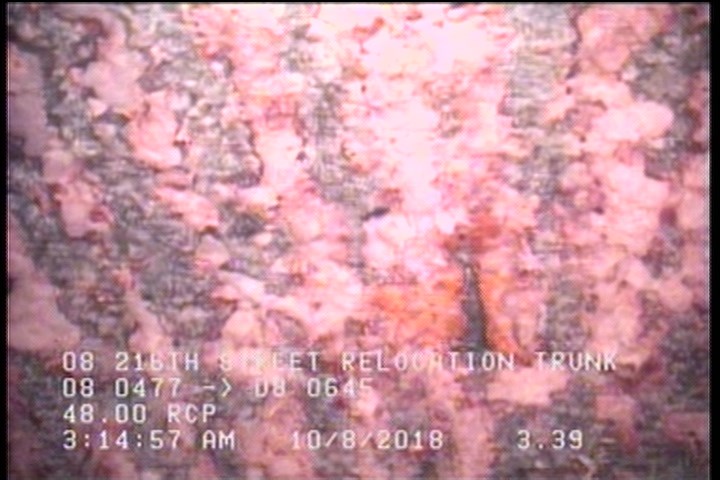

3.5 ft. - Surface Reinforcement Visible, from 08 to 04 o'clock, within 8 inches of joint: YES
9.7 ft. - Surface Reinforcement Corroded, from 08 to 04 o'clock, within 8 inches of joint: NO, Start
Observations (9)
| Distance | Code | Observation |
|---|---|---|
| 0 | AMH | 08 0477 |
| 9.7 | SRC | — |
| 0 | MWL | — |
| 21.9 | SAP | — |
| 21.9 | SRC | — |
| 0 | MWM | — |
| 3.5 | SRV | — |
| 21.9 | AMH | 08 0645 |
| 3.2 | SAP | — |
Properties (4)
- additional_info
- SC365202
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2018-10-08T03:12:00-07:00
