Wastewater/Activity/PacpInspection/1.0Oct 12, 2018, 07:24 AM
22 1278_22 1277 _12102018_002439.mp4
- Date
- 10/12/2018
- W/O
- 729409
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00806
- PipeID
- P16474
- Time
- 12:24 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K6166
- Sewer Name
- 22 DISTRICT #22 MAIN RELIEF TRUNK
- City
- WEST COVINA
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 22
- Page No.
- 31
- Purpose
- Routine Assessment
- Project
- RFIR_WO_729409_TV22152_OCT2018
- Sewer Type
- Gravity
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 27 in.
- Width
- 27 in.
- Upstream MH
- 22 1278
- Downstream MH
- 22 1277
- Dir. of Survey
- Downstream
- Length Surveyed
- 596.3 ft.
- Total Length
- 596.3 ft.
- Structural Index
- 3
- Structural Quick
- 3W2W
- Structural Rating
- 590
- O&M Index
- 2
- O&M Quick
- 2W00
- O&M Rating
- 236
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 826
Observation photos (3)

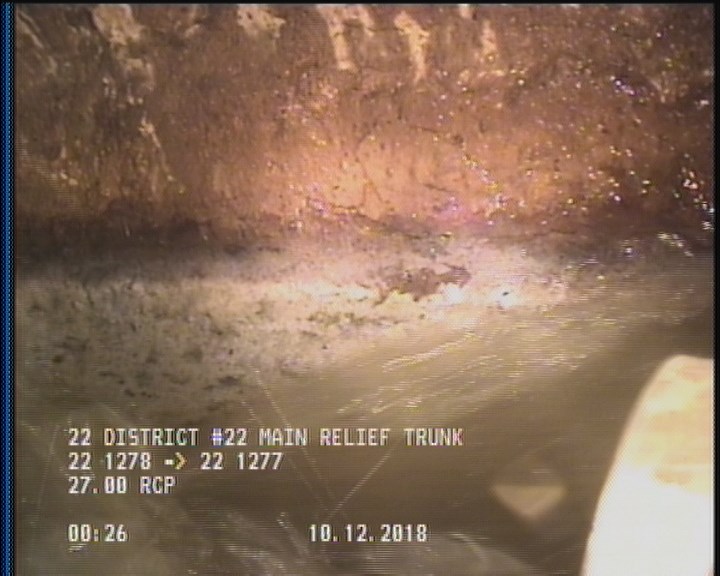

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

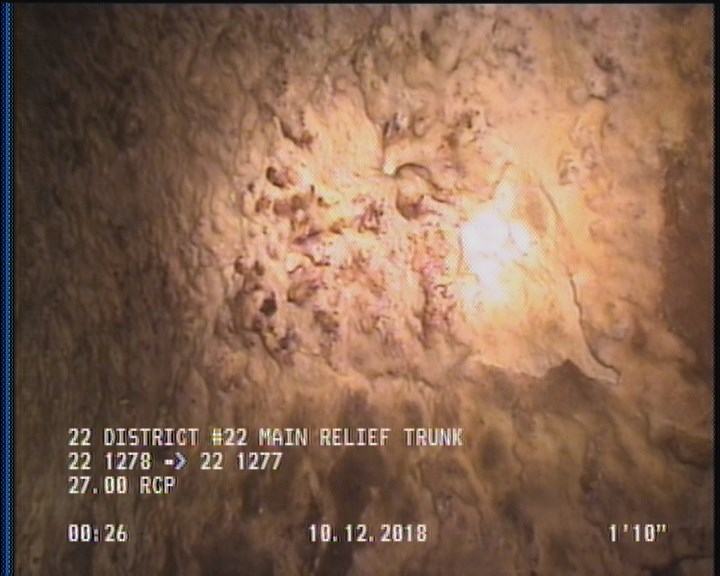

2 ft. - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

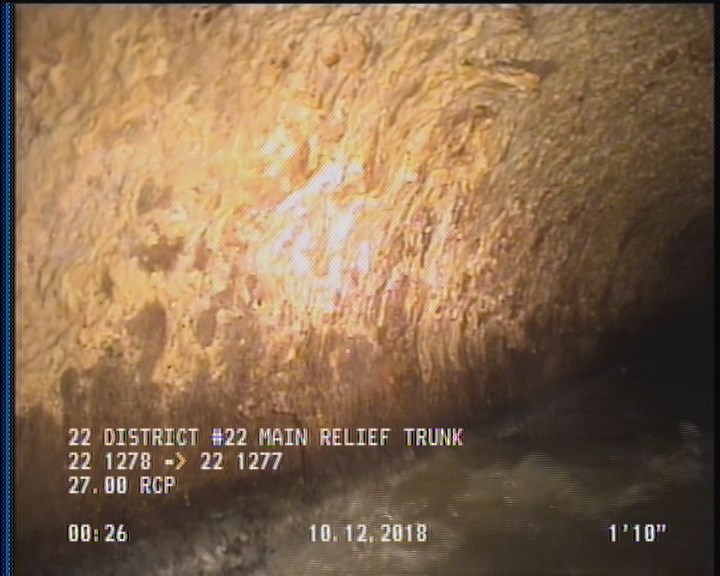

2 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start
Observations (10)
| Distance | Code | Observation |
|---|---|---|
| 596.3 | AMH | 22 1277 |
| 593.9 | SAP | — |
| 2 | DAGS | — |
| 2 | SAP | — |
| 593.9 | DAGS | — |
| 0 | MWM | — |
| 0 | MWL | — |
| 2 | SSS | — |
| 593.9 | SSS | — |
| 0 | AMH | 22 1278 |
Properties (5)
- additional_info
- SC365134
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2018-10-12T00:24:24-07:00
- year_laid
- 30238
