Wastewater/Activity/PacpInspection/1.0Dec 6, 2018, 10:50 AM

  • 05 0298_05 0297_1262018_032432.mp4

Date
12/06/2018
W/O
0743260
Weather
Light Rain
Operator/Surveyor
MARTIN
Sewer ID
Z00498
PipeID
P05506
Time
2:50 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H1070
Sewer Name
05 OAK STREET-CENTER AVENUE TRUNK
City
LENNOX
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
10
Purpose
Capital Improvement Program Assesment
Project
20181206MDM_OAK_STREET_CENTER_AVENUE_TRUNK
Material
NRCP
Shape
Circular
Height
22 in.
Upstream MH
05 0298
Downstream MH
05 0297
Dir. of Survey
Downstream
Length Surveyed
329.7 ft.
Total Length
329.7 ft.
Structural Index
4
Structural Quick
4331
Structural Rating
15
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
4
Overall Quick
—
Overall Rating
15
Pipe schematic from manhole 05 0298 to 05 0297
MH: 05 0298MH: 05 0297downstream0 ft. AMH - Upstream Manhole, Survey Begins - 3:45AM0 ft. MGO - General Observation - Conn. @ Mh, 3 O' Clock. Active0 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. MWL - Water Level, 5 %of cross sectional area2 ft. SAM - Surface Aggregate Missing, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - SEVERE AGG8 ft. MGO - General Observation - 22" NRCP37.3 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start - SLIGHT50.5 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Finish - SLIGHT151.7 ft. SAM - Surface Aggregate Missing, from 08 to 04 o'clock, within 8 inches of joint: YES - SEVERE AGG314 ft. SAM - Surface Aggregate Missing, from 08 to 04 o'clock, within 8 inches of joint: NO - SEVERE AGG329.2 ft. SAM - Surface Aggregate Missing, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish - SEVERE AG329.7 ft. ACOM - Cleanout Mainline, Survey Ends - 4:10AM

Observation photos (5)

  • Surface Aggregate Missing, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - SEVERE AGG

    2 ft. - Surface Aggregate Missing, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - SEVERE AGG

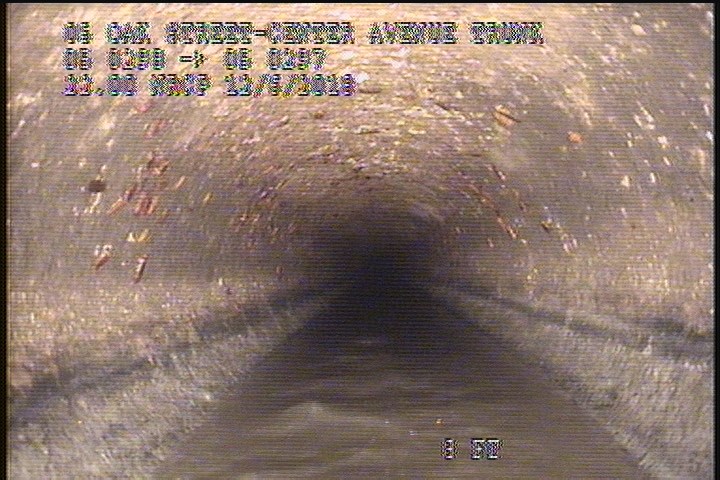

  • General Observation - 22" NRCP

    8 ft. - General Observation - 22" NRCP

  • Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start - SLIGHT

    37.3 ft. - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start - SLIGHT

  • Surface Aggregate Missing, from 08 to 04 o'clock, within 8 inches of joint: YES - SEVERE AGG

    151.7 ft. - Surface Aggregate Missing, from 08 to 04 o'clock, within 8 inches of joint: YES - SEVERE AGG

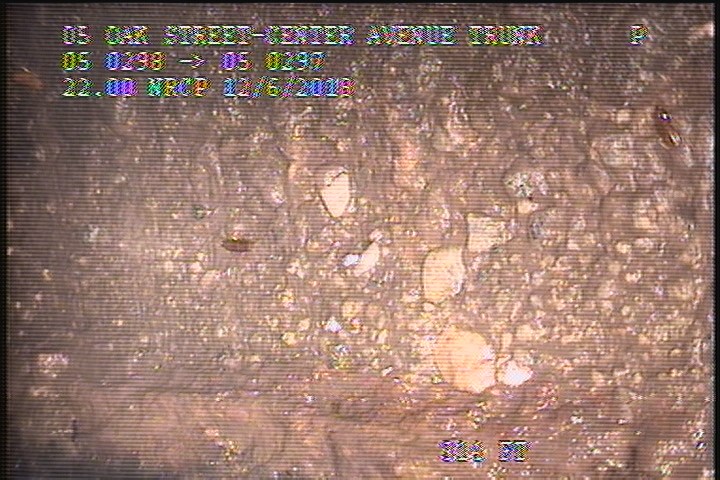

  • Surface Aggregate Missing, from 08 to 04 o'clock, within 8 inches of joint: NO - SEVERE AGG

    314 ft. - Surface Aggregate Missing, from 08 to 04 o'clock, within 8 inches of joint: NO - SEVERE AGG

All inspections of P05506Work order 0743260

Observations (12)

DistanceCodeObservation
0AMH3:45AM
314SAMSEVERE AGG
2SAMSEVERE AGG
329.7ACOM4:10AM
329.2SAMSEVERE AG
0MGOConn. @ Mh, 3 O' Clock. Active
37.3FLSLIGHT
8MGO22" NRCP
151.7SAMSEVERE AGG
0MWM—
50.5FLSLIGHT
0MWL—

Properties (6)

custom_field_three
SLIGHT JOINT TO JOINT LONGER-MISSING SEVERE AGG
custom_field_two
2
customer
LACSD
datetime
2018-12-06T02:50:01-08:00
documentation
MARTIN,REVELES,OLIVER 111,BRAR
is_lateral_inspection
false
