Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Dec 6, 2018, 08:27 AM

  • 05 0288_05 0287_1262018_004406.mp4

Date
12/06/2018
W/O
0743260
Weather
Light Rain
Operator/Surveyor
MARTIN
Sewer ID
Z00498
PipeID
P05496
Time
12:27 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H1070
Sewer Name
05 OAK STREET-CENTER AVENUE TRUNK
City
LENNOX
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
10
Purpose
Capital Improvement Program Assesment
Project
20181206MDM_OAK_STREET_CENTER_AVENUE_TRUNK
Material
Reinforced Concrete Pipe
Shape
Circular
Height
27 in.
Upstream MH
05 0288
Downstream MH
05 0287
Dir. of Survey
Downstream
Length Surveyed
120.8 ft.
Total Length
120.8 ft.
Structural Index
4
Structural Quick
4300
Structural Rating
12
O&M Index
2
O&M Quick
2100
O&M Rating
2
Overall Index
4
Overall Quick
—
Overall Rating
14
Pipe schematic from manhole 05 0288 to 05 0287
MH: 05 0288MH: 05 0287downstream0 ft. MGO - General Observation - Conn. @ Mh, 9 O' Clock. Active0 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 12:35AM2 ft. SAM - Surface Aggregate Missing, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - SEVERE AGG2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start17 ft. SAM - Surface Aggregate Missing, from 08 to 04 o'clock, within 8 inches of joint: NO - SEVERE AGG104.9 ft. SAM - Surface Aggregate Missing, from 08 to 04 o'clock, within 8 inches of joint: YES - SEVERE AGG120.4 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish120.4 ft. SAM - Surface Aggregate Missing, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish - SEVERE AGG120.4 ft. MGO - General Observation - Conn. @ Mh, 3 O' Clock. Active120.8 ft. AMH - Downstream Manhole, Survey Ends - 12:55AM

Observation photos (4)

  • Surface Aggregate Missing, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - SEVERE AGG

    2 ft. - Surface Aggregate Missing, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - SEVERE AGG

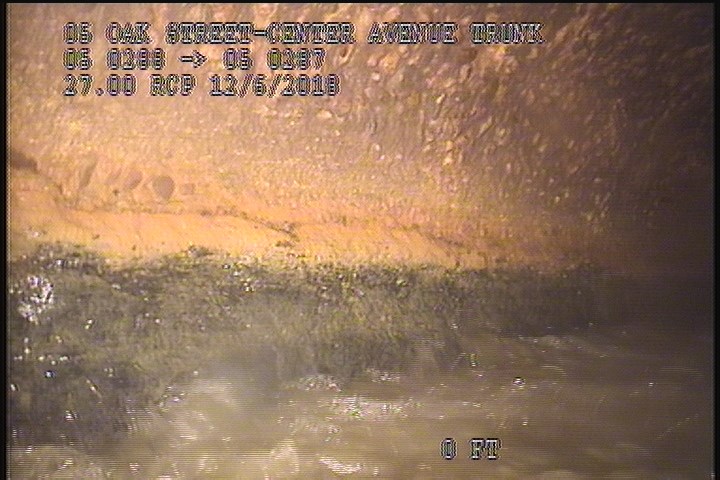

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

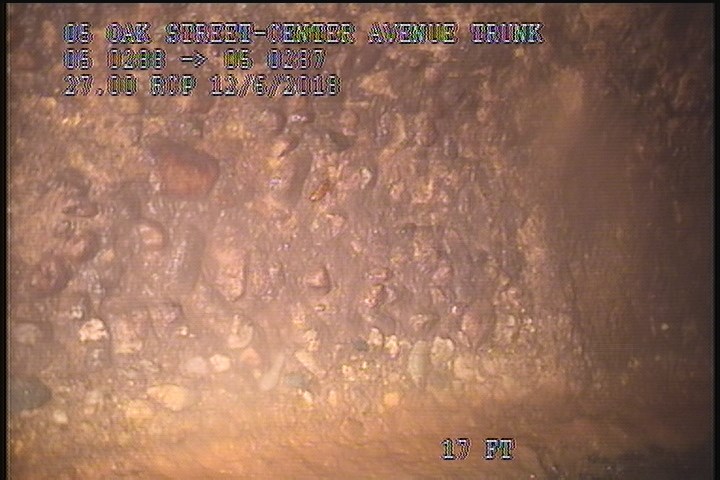

  • Surface Aggregate Missing, from 08 to 04 o'clock, within 8 inches of joint: NO - SEVERE AGG

    17 ft. - Surface Aggregate Missing, from 08 to 04 o'clock, within 8 inches of joint: NO - SEVERE AGG

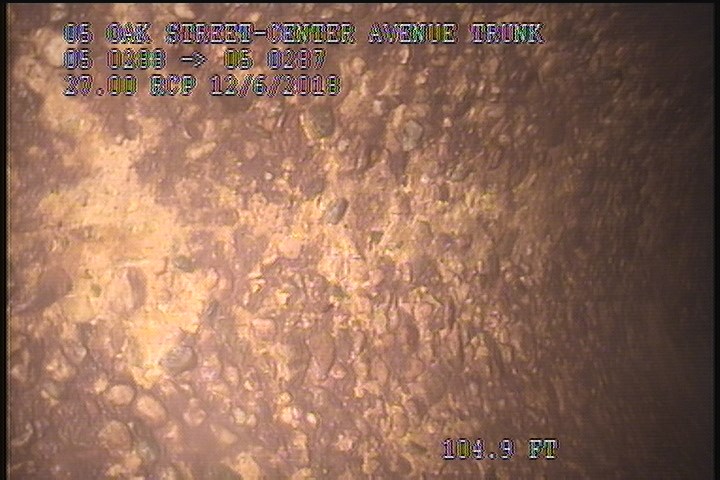

  • Surface Aggregate Missing, from 08 to 04 o'clock, within 8 inches of joint: YES - SEVERE AGG

    104.9 ft. - Surface Aggregate Missing, from 08 to 04 o'clock, within 8 inches of joint: YES - SEVERE AGG

All inspections of P05496Work order 0743260

Observations (12)

DistanceCodeObservation
2SAMSEVERE AGG
120.8AMH12:55AM
120.4DAGS—
120.4SAMSEVERE AGG
17SAMSEVERE AGG
0MGOConn. @ Mh, 9 O' Clock. Active
0MWM—
104.9SAMSEVERE AGG
0MWL—
120.4MGOConn. @ Mh, 3 O' Clock. Active
2DAGS—
0AMH12:35AM

Properties (6)

custom_field_three
MISSING SEVRE AGG
custom_field_two
3
customer
LACSD
datetime
2018-12-06T00:27:49-08:00
documentation
MARTIN,REVELES,OLIVER 111,BRAR
is_lateral_inspection
false
