Wastewater/Activity/PacpInspection/1.0Dec 3, 2018, 09:23 AM
Section#2_B 0929_B 0928__1232018__I0081.mp4
- Date
- 12/03/2018
- W/O
- 07343334
- Weather
- Dry
- Operator/Surveyor
- MARTIN
- Sewer ID
- Z00333
- PipeID
- P20070
- Time
- 1:23 AM
- Certificate
- U-1014-06022543
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- I0081
- Sewer Name
- A JOINT OUTFALL A - UNIT 3B
- City
- CARSON
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 08
- Page No.
- 14
- Purpose
- Capital Improvement Program Assesment
- Project
- 20181203MDM_JOINT_OUTFALL_A_UNIT_3B
- Material
- RCP-CTL
- Shape
- Square
- Height
- 114 in.
- Upstream MH
- B 0928
- Downstream MH
- B 0929
- Dir. of Survey
- Upstream
- Length Surveyed
- 25.7 ft.
- Total Length
- 25.7 ft.
- Structural Index
- 4
- Structural Quick
- 5243
- Structural Rating
- 22
- O&M Index
- 4
- O&M Quick
- 4100
- O&M Rating
- 4
- Overall Index
- 4
- Overall Quick
- —
- Overall Rating
- 26
Observation photos (4)

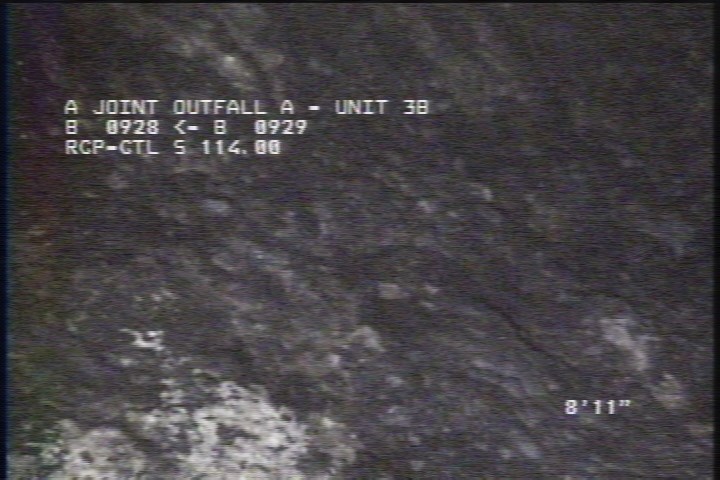

9 ft. - Surface Aggregate Missing, from 09 to 03 o'clock, within 8 inches of joint: YES, Start - SEVERE AGG

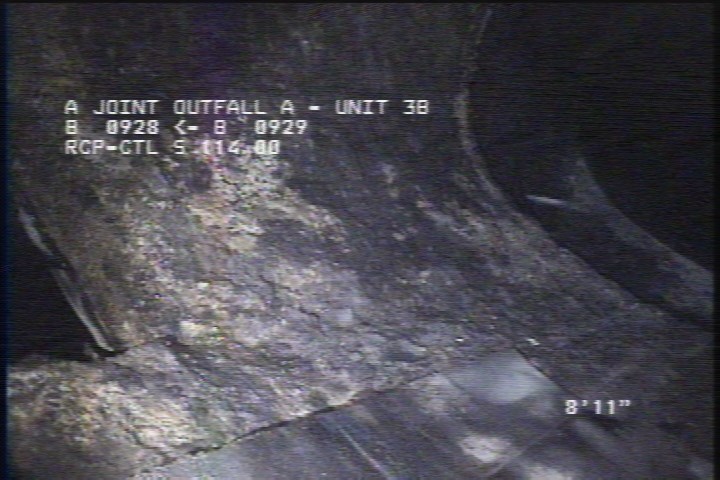

9 ft. - Water Level, 50 %of cross sectional area

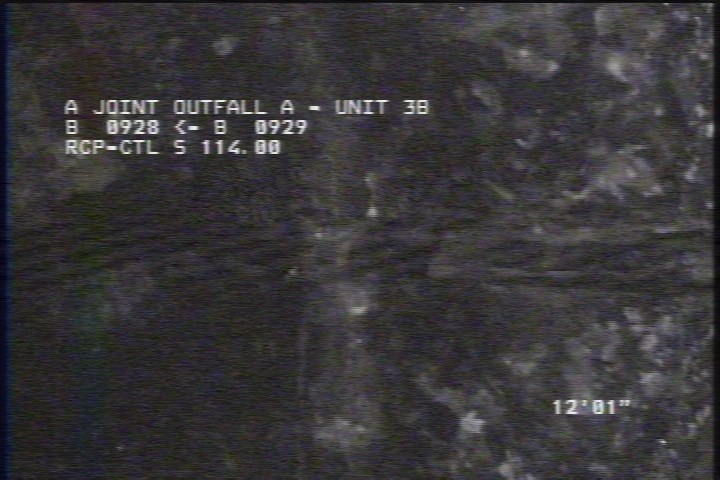

12.1 ft. - Surface Reinforcement Corroded, from 11 to 01 o'clock, within 8 inches of joint: NO25.78 - LONG & CIRCUM REBAR
13.5 ft. - Surface Reinforcement Corroded, from 11 to 01 o'clock, within 8 inches of joint: YES, - CIRCUM REBAR
Observations (9)
| Distance | Code | Observation |
|---|---|---|
| 9 | SAM | SEVERE AGG |
| 0 | MGO | MISSING TILES 09% START 9:00 TO 3:00 |
| 9 | MWL | — |
| 25 | SAM | SEVERE AGG |
| 13.5 | SRC | CIRCUM REBAR |
| 0 | MWM | — |
| 25.7 | AMH | 3:55AM |
| 12.1 | SRC | LONG & CIRCUM REBAR |
| 0 | AMH | 3:40AM |
Properties (6)
- custom_field_three
- CORRODED LONG & CIRCUM REBAR
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2018-12-03T01:23:29-08:00
- documentation
- MARTIN,REVELES,OLIVER 111,BRAR
- is_lateral_inspection
- false
