Wastewater/Activity/PacpInspection/1.0Nov 30, 2018, 06:00 PM
Section#1_16 0658_16 0657__11302018__I0080.mp4
- Date
- 11/30/2018
- W/O
- 0742114
- Weather
- Dry
- Operator/Surveyor
- IGNACIO
- Sewer ID
- Z00665
- PipeID
- P13348
- Time
- 10:00 AM
- Certificate
- PENDING
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- I0080
- Sewer Name
- 16 SAN MARINO OUTFALL TRUNK
- City
- ALHAMBRA
- Loc. details
- Parking Lot
- Location Code
- G
- Use of Sewer
- Sanitary Sewer
- District
- District 16
- Page No.
- 23
- Purpose
- Routine Assessment
- Project
- 20181130MI_SAN_MARINO_OUTFALL_TRUNK
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 27 in.
- Upstream MH
- 16 0657
- Downstream MH
- 16 0658
- Dir. of Survey
- Upstream
- Length Surveyed
- 2.1 ft.
- Total Length
- 2.1 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 0
- Overall Quick
- —
- Overall Rating
- 0
Observation photos (4)

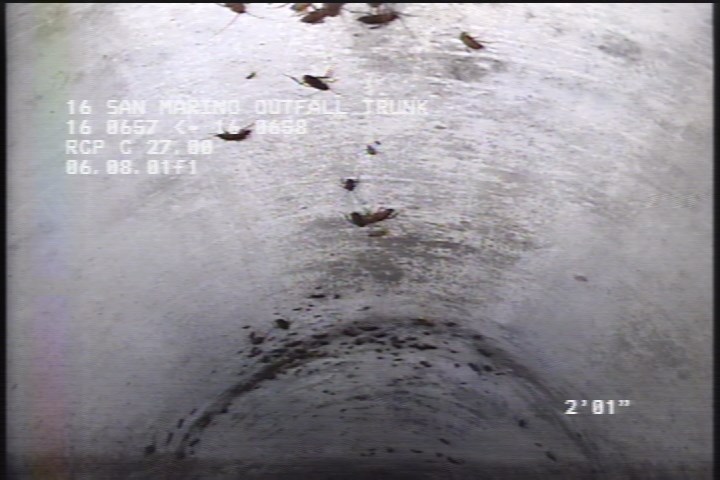

0 ft. - Downstream Manhole, Survey Begins - 10:13 AM

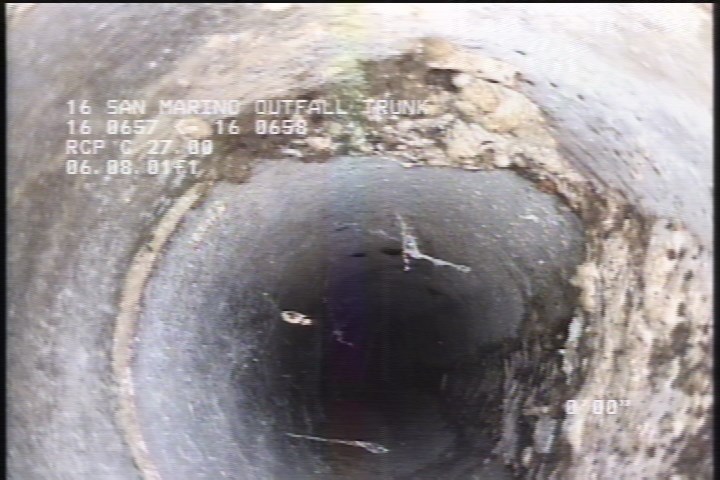

0 ft. - General Observation - AIRLINE

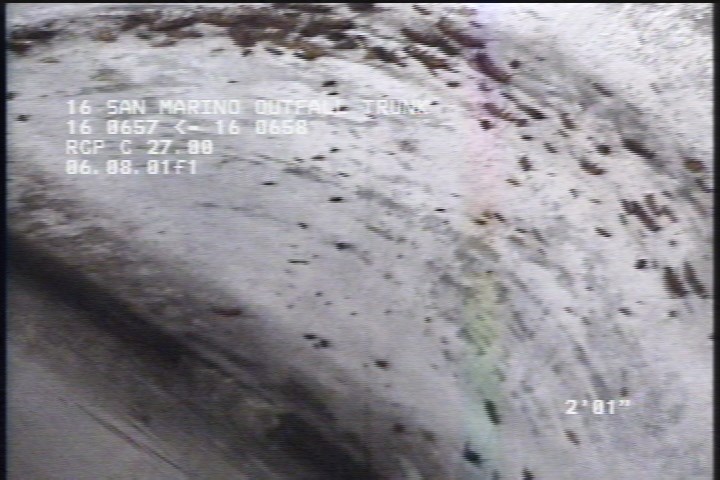

2.1 ft. - General Observation - UPLEG PIPE OF THE D/S SIPHON

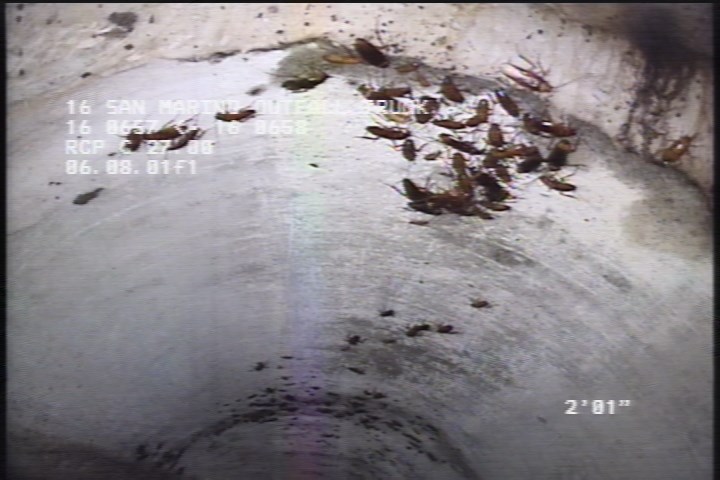

2.1 ft. - General Observation - POSSIBLE MAGNESIUM HYDROXIDE COAT, 9 TO 3 OCLOCK, 80%
Observations (6)
| Distance | Code | Observation |
|---|---|---|
| 2.1 | MSA | VIEW OF THE UPLEG PIPE OF THE D/S SIPHON |
| 0 | AMH | 10:13 AM |
| 0 | MGO | AIRLINE |
| 2.1 | MGO | UPLEG PIPE OF THE D/S SIPHON |
| 0 | MWL | SIPHON |
| 2.1 | MGO | POSSIBLE MAGNESIUM HYDROXIDE COAT, 9 TO 3 OCLOCK, 80% |
Properties (6)
- additional_info
- VIEW OF THE UPLEG PIPE OF THE D/S SIPHON MH
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2018-11-30T10:00:25-08:00
- documentation
- IGNACIO, MIRANDA, SHADLER
- is_lateral_inspection
- false
