Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Nov 30, 2018, 11:19 AM

  • 16 0301_16 0300_11302018_033928.mp4

Date
11/30/2018
W/O
0742114
Weather
Light Rain
Operator/Surveyor
MARTIN
Sewer ID
Z00665
PipeID
P13352
Time
3:19 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H1067
Sewer Name
16 SAN MARINO OUTFALL TRUNK
City
ALHAMBRA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 16
Page No.
21
Purpose
Routine Assessment
Project
20181130MDM_SAN_MARINO_OUTFALL_TRUNK
Material
Vitrified Clay Pipe
Shape
Circular
Height
22 in.
Upstream MH
16 0301
Downstream MH
16 0300
Dir. of Survey
Downstream
Length Surveyed
366.6 ft.
Total Length
366.6 ft.
Structural Index
3
Structural Quick
3222
Structural Rating
10
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
10
Pipe schematic from manhole 16 0301 to 16 0300
MH: 16 0301MH: 16 0300downstream0 ft. AMH - Upstream Manhole, Survey Begins - 3:55AM0 ft. MGO - General Observation - Conn. @ Mh, 9 O' Clock. Active0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. MWM - Water Mark, 30 %of cross sectional area2 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - THIN SURFACE LAYER FLAKING8 ft. MGO - General Observation - 22" VCP43.3 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Open45.3 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Capped55.7 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Open67.9 ft. FL - Fracture Longitudinal, at 03 o'clock, within 8 inches of joint: YES - HAIRLINE94.8 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Open119.9 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Open123.1 ft. MGO - General Observation - 22" VCP143.5 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Open178.8 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Conn. @ Mh, 3 O' Clock. OPEM184.1 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Open235.3 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Open238.3 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Open293.3 ft. FC - Fracture Circumferential, from 08 to 10 o'clock, within 8 inches of joint: YES - H294.7 ft. TF - Tap Factory Made, at 11 o'clock, -, within 8 inches of joint: YES, 6" - Open297.5 ft. TF - Tap Factory Made, at 01 o'clock, -, within 8 inches of joint: YES, 6" - Open310.1 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Open312.6 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Open352.7 ft. FL - Fracture Longitudinal, at 09 o'clock, within 8 inches of joint: YES - H366.2 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish - THIN SURFACE LAYER FLAKING366.6 ft. AMH - Downstream Manhole, Survey Ends - 4:30AM

Observation photos (3)

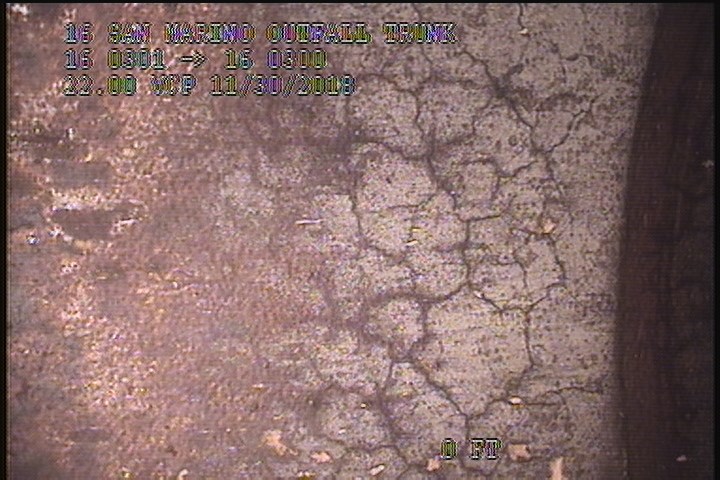

  • Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - THIN SURFACE LAYER FLAKING

    2 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - THIN SURFACE LAYER FLAKING

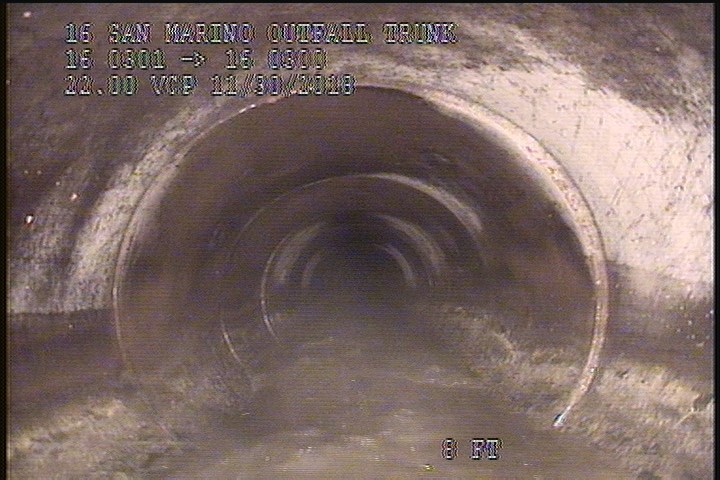

  • General Observation - 22" VCP

    8 ft. - General Observation - 22" VCP

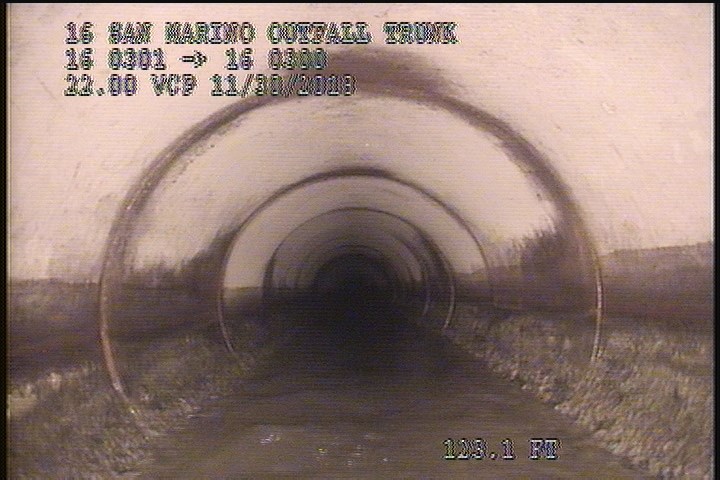

  • General Observation - 22" VCP

    123.1 ft. - General Observation - 22" VCP

All inspections of P13352Work order 0742114

Observations (26)

DistanceCodeObservation
123.1MGO22" VCP
119.9TFOpen
55.7TFOpen
67.9FLHAIRLINE
238.3TFOpen
0AMH3:55AM
45.3TFCCapped
178.8TFConn. @ Mh, 3 O' Clock. OPEM
94.8TFOpen
0MGOConn. @ Mh, 9 O' Clock. Active
310.1TFOpen
2SSSTHIN SURFACE LAYER FLAKING
294.7TFOpen
0MWL—
43.3TFOpen
352.7FLH
184.1TFOpen
312.6TFOpen
293.3FCH
366.6AMH4:30AM
143.5TFOpen
0MWM—
235.3TFOpen
8MGO22" VCP
297.5TFOpen
366.2SSSTHIN SURFACE LAYER FLAKING

Properties (6)

custom_field_three
HAIRLINE FRACTURES
custom_field_two
4
customer
LACSD
datetime
2018-11-30T03:19:29-08:00
documentation
MARTIN,REVELES,OLIVER 111,BRAR
is_lateral_inspection
false
