Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Nov 30, 2018, 08:21 AM

  • 16 0299_16 0298_11302018_002629.mp4

Date
11/30/2018
W/O
0742114
Weather
Light Rain
Operator/Surveyor
MARTIN
Sewer ID
Z00665
PipeID
P13350
Time
12:21 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H1066
Sewer Name
16 SAN MARINO OUTFALL TRUNK
City
ALHAMBRA
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 16
Page No.
21
Purpose
Routine Assessment
Project
20181130MDM_SAN_MARINO_OUTFALL_TRUNK
Material
Vitrified Clay Pipe
Shape
Circular
Height
22 in.
Upstream MH
16 0299
Downstream MH
16 0298
Dir. of Survey
Downstream
Length Surveyed
363.8 ft.
Total Length
363.8 ft.
Structural Index
2
Structural Quick
3A2D
Structural Rating
81
O&M Index
2
O&M Quick
2200
O&M Rating
4
Overall Index
2
Overall Quick
—
Overall Rating
85
Pipe schematic from manhole 16 0299 to 16 0298
MH: 16 0299MH: 16 0298downstream0 ft. MWM - Water Mark, 30 %of cross sectional area0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 12:25AM0 ft. MGO - General Observation - Conn. @ Mh, 3 O' Clock. OPEN2 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - THIN SURFACE LAYER FLAKING11.2 ft. FC - Fracture Circumferential, from 08 to 10 o'clock, within 8 inches of joint: YES - HAIRLINE28.8 ft. FC - Fracture Circumferential, from 03 to 04 o'clock, within 8 inches of joint: YES - H47 ft. FL - Fracture Longitudinal, at 10 o'clock, within 8 inches of joint: YES - H54.6 ft. FC - Fracture Circumferential, from 08 to 09 o'clock, within 8 inches of joint: YES - H60.1 ft. FL - Fracture Longitudinal, at 03 o'clock, within 8 inches of joint: YES - SLIGHT60.1 ft. FC - Fracture Circumferential, from 10 to 11 o'clock, within 8 inches of joint: YES - H73.3 ft. FL - Fracture Longitudinal, at 09 o'clock, within 8 inches of joint: YES - SL78.4 ft. FL - Fracture Longitudinal, at 09 o'clock, within 8 inches of joint: YES - H99.2 ft. FC - Fracture Circumferential, from 11 to 01 o'clock, within 8 inches of joint: YES - H101.3 ft. FC - Fracture Circumferential, from 12 to 01 o'clock, within 8 inches of joint: YES - SL102.4 ft. TFC - Tap Factory Made Capped, at 01 o'clock, -, within 8 inches of joint: YES, 6" - Capped109.3 ft. FC - Fracture Circumferential, from 02 to 03 o'clock, within 8 inches of joint: YES - H138.9 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES - H157.6 ft. MGO - General Observation - 22" VCP173.9 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES - H194.4 ft. FC - Fracture Circumferential, from 09 to 11 o'clock, within 8 inches of joint: YES - H196.9 ft. FL - Fracture Longitudinal, at 03 o'clock, within 8 inches of joint: YES, - H197.1 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES - H199.6 ft. FC - Fracture Circumferential, from 12 to 01 o'clock, within 8 inches of joint: YES - SL199.8 ft. TFC - Tap Factory Made Capped, at 12 o'clock, -, within 8 inches of joint: YES, 6" - Capped203.3 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Open239.6 ft. DSGV - Deposits Settled Gravel, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES240.1 ft. FC - Fracture Circumferential, from 10 to 12 o'clock, within 8 inches of joint: YES - SL250.8 ft. FC - Fracture Circumferential, from 08 to 11 o'clock, within 8 inches of joint: YES - H253.7 ft. FL - Fracture Longitudinal, at 02 o'clock, within 8 inches of joint: YES - SL254.5 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Capped258.5 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES - H268.6 ft. FC - Fracture Circumferential, from 10 to 02 o'clock, within 8 inches of joint: YES - H270.7 ft. FC - Fracture Circumferential, from 12 to 02 o'clock, within 8 inches of joint: YES - H281.4 ft. FC - Fracture Circumferential, from 12 to 03 o'clock, within 8 inches of joint: YES - H281.4 ft. FC - Fracture Circumferential, from 09 to 12 o'clock, within 8 inches of joint: YES - H286.5 ft. FC - Fracture Circumferential, from 12 to 02 o'clock, within 8 inches of joint: YES - SL286.5 ft. FC - Fracture Circumferential, from 08 to 09 o'clock, within 8 inches of joint: YES - H286.5 ft. FC - Fracture Circumferential, from 09 to 12 o'clock, within 8 inches of joint: YES - SL291.5 ft. FC - Fracture Circumferential, from 08 to 11 o'clock, within 8 inches of joint: YES - H312.1 ft. FC - Fracture Circumferential, from 09 to 11 o'clock, within 8 inches of joint: YES - H317.2 ft. FC - Fracture Circumferential, from 12 to 01 o'clock, within 8 inches of joint: YES - H320.7 ft. DSGV - Deposits Settled Gravel, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES327.4 ft. FC - Fracture Circumferential, from 03 to 04 o'clock, within 8 inches of joint: YES - H330.4 ft. FL - Fracture Longitudinal, at 09 o'clock, within 8 inches of joint: YES - H353.3 ft. FC - Fracture Circumferential, from 08 to 10 o'clock, within 8 inches of joint: YES - H363.4 ft. MGO - General Observation - Conn. @ Mh, 3 O' Clock. Active363.4 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish - THIN SUFACE LAYER FLAKING363.8 ft. AMH - Downstream Manhole, Survey Ends - 1:10AM

Observation photos (2)

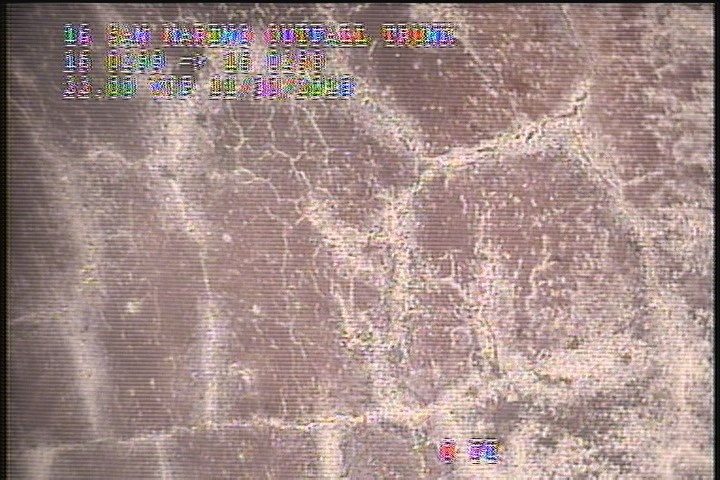

  • Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - THIN SURFACE LAYER FLAKING

    2 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - THIN SURFACE LAYER FLAKING

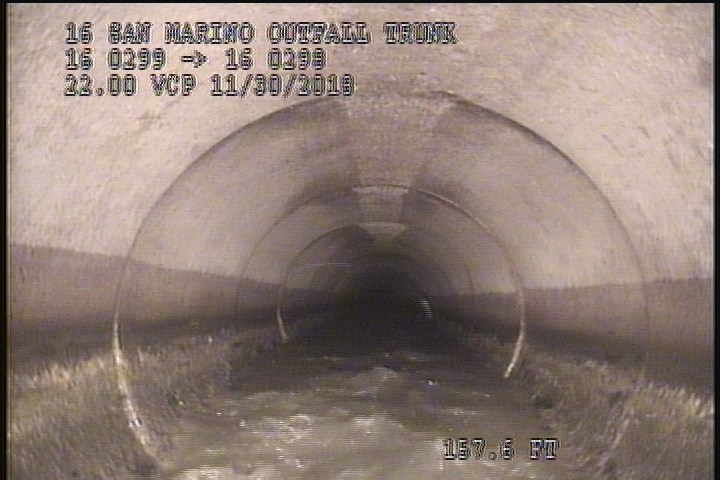

  • General Observation - 22" VCP

    157.6 ft. - General Observation - 22" VCP

All inspections of P13350Work order 0742114

Observations (49)

DistanceCodeObservation
28.8FCH
203.3TFOpen
101.3FCSL
60.1FLSLIGHT
270.7FCH
109.3FCH
0MWM—
54.6FCH
253.7FLSL
197.1FLH
2SSSTHIN SURFACE LAYER FLAKING
47FLH
286.5FCSL
258.5FLH
330.4FLH
173.9FLH
0MWL—
281.4FCH
312.1FCH
286.5FCH
157.6MGO22" VCP
199.8TFCCapped
0AMH12:25AM
11.2FCHAIRLINE
363.8AMH1:10AM
281.4FCH
320.7DSGV—
194.4FCH
254.5TFCCapped
60.1FCH
327.4FCH
268.6FCH
73.3FLSL
317.2FCH
99.2FCH
363.4MGOConn. @ Mh, 3 O' Clock. Active
78.4FLH
240.1FCSL
102.4TFCCapped
0MGOConn. @ Mh, 3 O' Clock. OPEN
138.9FLH
239.6DSGV—
199.6FCSL
250.8FCH
196.9FLH
353.3FCH
291.5FCH
363.4SSSTHIN SUFACE LAYER FLAKING
286.5FCSL

Properties (6)

custom_field_three
SLIGHT & HAIRLINE FRACTURES
custom_field_two
4
customer
LACSD
datetime
2018-11-30T00:21:00-08:00
documentation
MARTIN,REVELES,OLIVER 111,BRAR
is_lateral_inspection
false
