Wastewater/Activity/PacpInspection/1.0Feb 26, 2018, 09:40 AM
A 0148_A 0147 _26022018_034106.mp4
- Date
- 02/26/2018
- W/O
- 685104
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00323
- PipeID
- P08085
- Time
- 1:40 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5466
- Sewer Name
- A JOA-1A LOS COYOTES WRP INTERCEPTOR
- City
- CERRITOS
- Loc. details
- Easement/Right of Way
- Location Code
- D
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 37
- Purpose
- Routine Assessment
- Project
- WO_685104_TV30023_FEB2018
- Sewer Type
- Gravity
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 66 in.
- Width
- 66 in.
- Upstream MH
- A 0148
- Downstream MH
- A 0147
- Dir. of Survey
- Downstream
- Length Surveyed
- 554.7 ft.
- Total Length
- 554.7 ft.
- Structural Index
- 3
- Structural Quick
- 3U00
- Structural Rating
- 333
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 333
Observation photos (2)

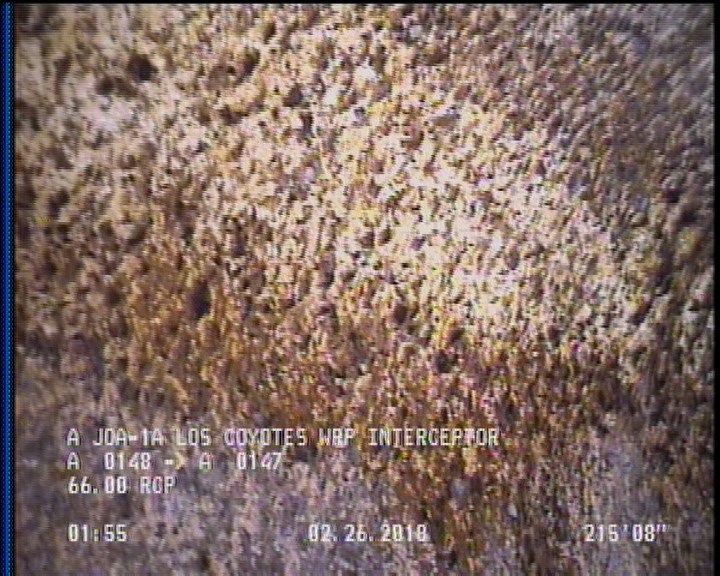

2 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

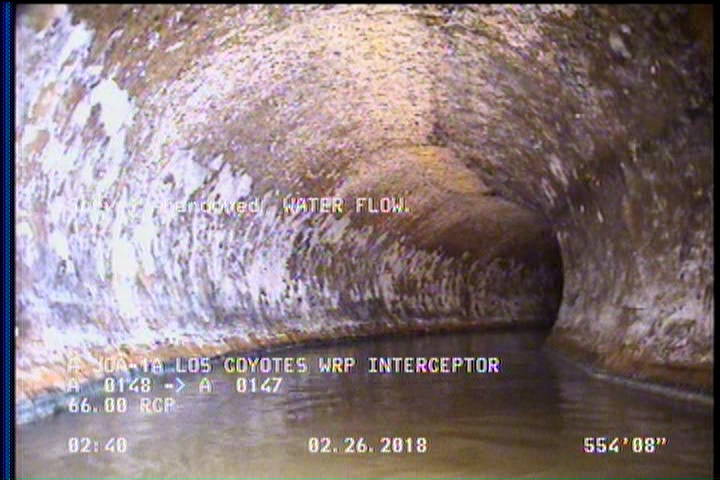

554.7 ft. - Survey Abandoned - LOW WATER FLOW.
Observations (6)
| Distance | Code | Observation |
|---|---|---|
| 554.7 | SAP | — |
| 0 | MWM | — |
| 0 | AMH | A 0148 |
| 0 | MWL | — |
| 2 | SAP | — |
| 554.7 | MSA | LOW WATER FLOW. |
Properties (7)
- additional_info
- SC358471
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2018-02-26T01:40:35-08:00
- documentation
- PRO PIPE
- is_lateral_inspection
- false
- year_laid
- 27936
