Wastewater/Activity/PacpInspection/1.0Feb 15, 2018, 10:53 AM
A 0175_A 0174_15022018_044116.mp4
- Date
- 02/15/2018
- W/O
- 685104
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00323
- PipeID
- P08112
- Time
- 2:53 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5457
- Sewer Name
- A JOA-1A LOS COYOTES WRP INTERCEPTOR
- City
- BELLFLOWER
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 32
- Purpose
- Routine Assessment
- Project
- WO_685104_TV30023_FEB2018
- Sewer Type
- Gravity
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 78 in.
- Width
- 78 in.
- Upstream MH
- A 0175
- Downstream MH
- A 0174
- Dir. of Survey
- Downstream
- Length Surveyed
- 722.3 ft.
- Total Length
- 722.3 ft.
- Structural Index
- 3
- Structural Quick
- 3\00
- Structural Rating
- 432
- O&M Index
- 2
- O&M Quick
- 2S00
- O&M Rating
- 198
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 630
Observation photos (2)

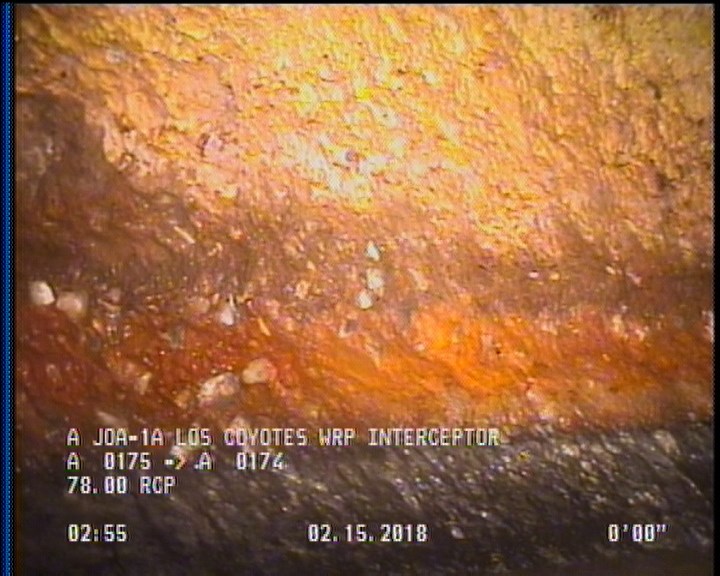

2 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

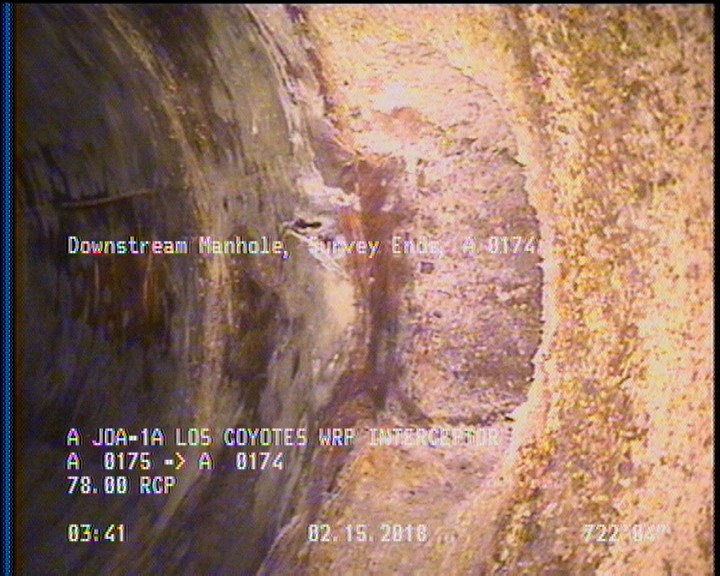

722.3 ft. - Downstream Manhole, Survey Ends - A 0174
Observations (9)
| Distance | Code | Observation |
|---|---|---|
| 722.3 | SAP | — |
| 722.3 | DSZ | — |
| 0 | MWL | — |
| 0 | AMH | A 0175 |
| 2 | SAP | — |
| 0 | MWM | — |
| 229.6 | DSZ | DEBRIS |
| 722.3 | AMH | A 0174 |
| 0 | MGO | MAG COATING THROGHOUT 60% |
Properties (7)
- additional_info
- SC346991
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2018-02-15T02:53:16-08:00
- documentation
- PRO PIPE
- is_lateral_inspection
- false
- year_laid
- 28048
