Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Nov 1, 2016, 08:16 AM

  • 20 0404_20 0403 _11012016_012054.mp4

Date
11/01/2016
W/O
602271
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00746
PipeID
P19353
Time
1:16 AM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K3802
Sewer Name
20 5TH STREET EAST TRUNK
City
PALMDALE
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 20
Page No.
12
Purpose
Routine Assessment
Project
WO_602271_TV20015_NOV2016
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
10 in.
Width
10 in.
Upstream MH
20 0404
Downstream MH
20 0403
Dir. of Survey
Downstream
Length Surveyed
300.4 ft.
Total Length
300.4 ft.
Structural Index
3
Structural Quick
413I
Structural Rating
150
O&M Index
2
O&M Quick
2K00
O&M Rating
120
Overall Index
2
Overall Quick
—
Overall Rating
270
Pipe schematic from manhole 20 0404 to 20 0403
MH: 20 0404MH: 20 0403downstream0 ft. AMH - Upstream Manhole, Survey Begins - 20 04040 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. MWL - Water Level, 10 %of cross sectional area2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start6.7 ft. FM - Fracture Multiple, from 12 to 04 o'clock, within 8 inches of joint: YES8 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"14.9 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"48.5 ft. CS - Crack Spiral, from 07 to 11 o'clock, within 8 inches of joint: YES60.4 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start73.9 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"76.7 ft. TFD - Tap Factory Made Defective, at 02 o'clock, -, within 8 inches of joint: NO, 6", 6" - ROOTS131.1 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"141.9 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"192.8 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"199.4 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"214.6 ft. TBA - Tap Break-In Active, at 12 o'clock, -, within 8 inches of joint: NO, 6"250.2 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"257 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: NO, 6"298.7 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish298.7 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish300.4 ft. MGO - General Observation - CAPPED CONNECTION AT MH 9 O'CLOCK300.4 ft. AMH - Downstream Manhole, Survey Ends - 20 0403

Observation photos (4)

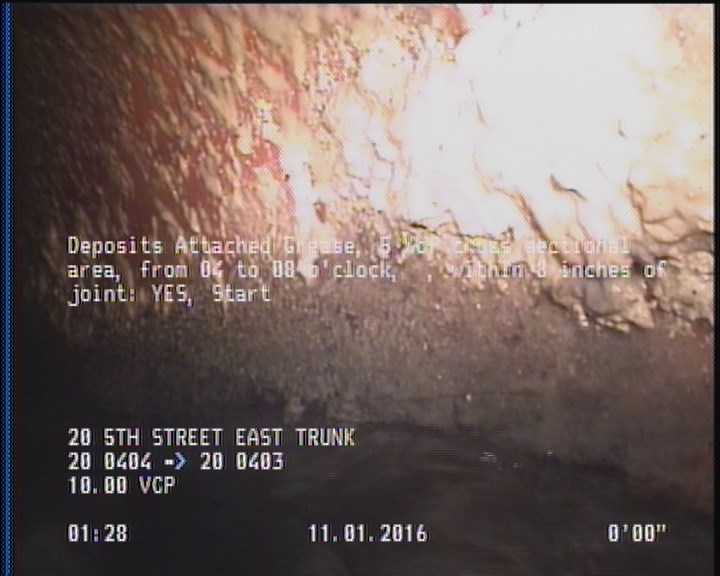

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

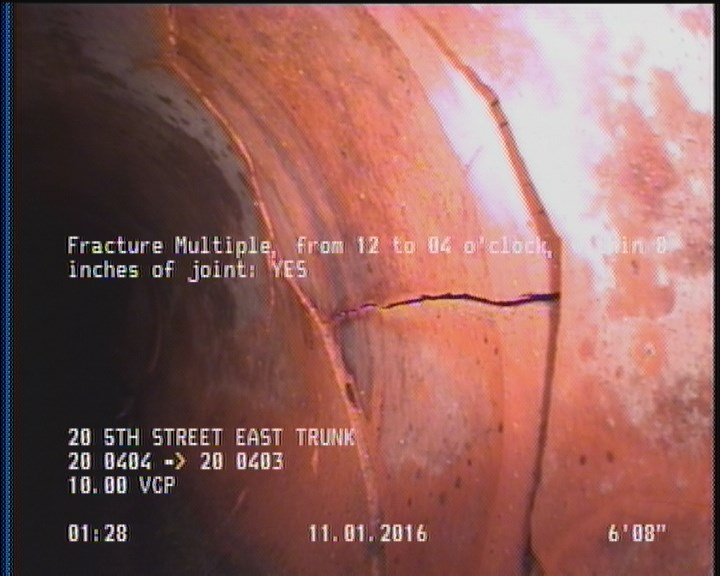

  • Fracture Multiple, from 12 to 04 o'clock, within 8 inches of joint: YES

    6.7 ft. - Fracture Multiple, from 12 to 04 o'clock, within 8 inches of joint: YES

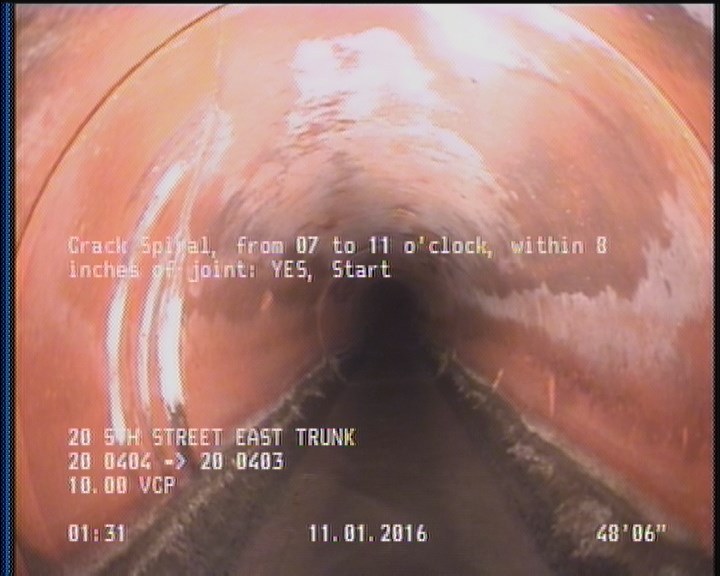

  • Crack Spiral, from 07 to 11 o'clock, within 8 inches of joint: YES

    48.5 ft. - Crack Spiral, from 07 to 11 o'clock, within 8 inches of joint: YES

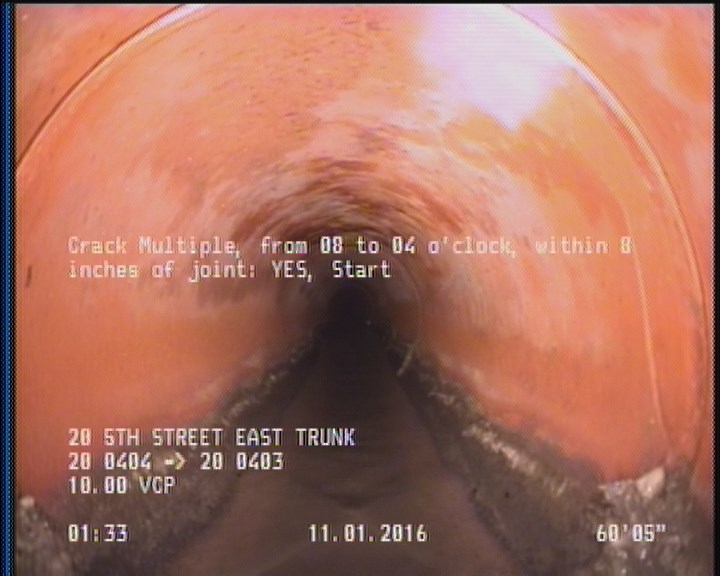

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    60.4 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

All inspections of P19353Work order 602271

Observations (22)

DistanceCodeObservation
199.4TFC—
141.9TFC—
48.5CS—
0AMH20 0404
300.4MGOCAPPED CONNECTION AT MH 9 O'CLOCK
300.4AMH20 0403
76.7TFDROOTS
8TFC—
14.9TFC—
298.7DAGS—
298.7CM—
0MWM—
257TFA—
131.1TFC—
60.4CM—
214.6TBA—
250.2TFC—
0MWL—
6.7FM—
73.9TFC—
2DAGS—
192.8TFC—

Properties (6)

additional_info
SC306340
custom_field_two
2
customer
LACSD
datetime
2016-11-01T01:16:51-07:00
documentation
PRO PIPE
is_lateral_inspection
false
