Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Nov 3, 2015, 09:13 AM

  • 20 0265_20 0264_03112015_011941.mp4

Date
11/03/2015
W/O
531056
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00753
PipeID
P19232
Time
1:13 AM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K2820
Sewer Name
20 35TH STREET EAST TRUNK
City
PALMDALE
Loc. details
Main Highway - Suburban/Rural
Location Code
B
Use of Sewer
Sanitary Sewer
District
District 20
Page No.
07
Purpose
Routine Assessment
Project
WO_531056_TV20009_OCT2015
Sewer Type
GRAVITY
Material
NRCP
Shape
Circular
Height
10 in.
Upstream MH
20 0264
Downstream MH
20 0265
Dir. of Survey
Upstream
Length Surveyed
145.2 ft.
Total Length
145.2 ft.
Structural Index
3
Structural Quick
3E2A
Structural Rating
104
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
104
Pipe schematic from manhole 20 0264 to 20 0265
MH: 20 0264MH: 20 0265upstream0 ft. AMH - Upstream Manhole, Survey Ends - 20 02652 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish11.5 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"50.7 ft. SSS - Surface Spalling, from 10 to 02 o'clock, within 8 inches of joint: YES, Finish58.4 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"105.2 ft. SSS - Surface Spalling, from 10 to 02 o'clock, within 8 inches of joint: YES, Start110.5 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"143.2 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start145.2 ft. MWM - Water Mark, 40 %of cross sectional area145.2 ft. MWL - Water Level, 30 %of cross sectional area145.2 ft. AMH - Downstream Manhole, Survey Begins - 20 0264

Observation photos (2)

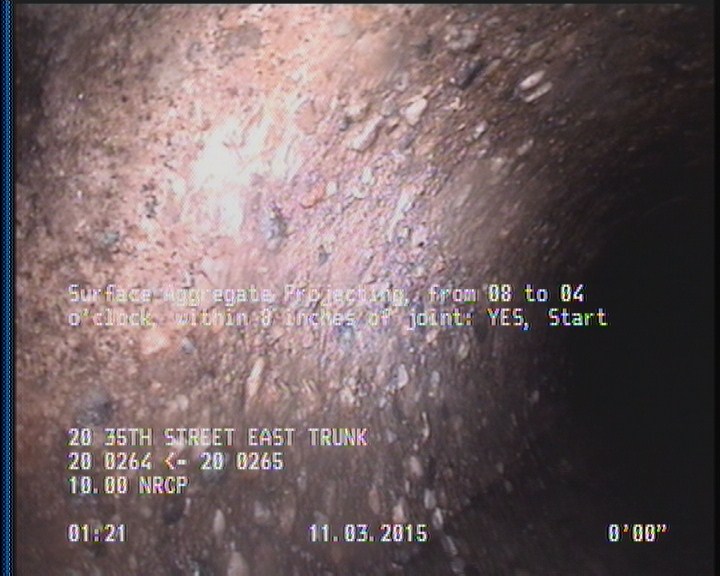

  • Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

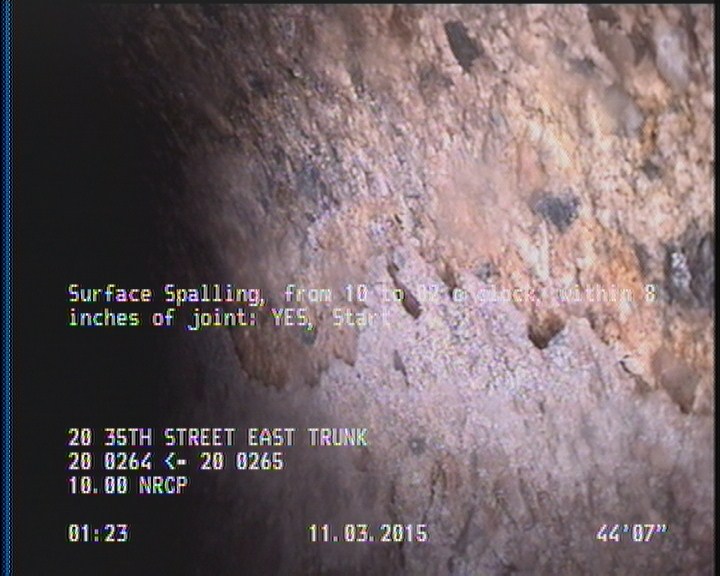

  • Surface Spalling, from 10 to 02 o'clock, within 8 inches of joint: YES, Start

    40 ft. - Surface Spalling, from 10 to 02 o'clock, within 8 inches of joint: YES, Start

All inspections of P19232Work order 531056

Observations (11)

DistanceCodeObservation
143.2SAP—
133.7TFC—
0MWM—
86.8TFC—
0MWL—
94.5SSS—
2SAP—
145.2AMH20 0265
0AMH20 0264
40SSS—
34.7TFC—

Properties (6)

additional_info
SC204154
custom_field_two
2
customer
LACSD
datetime
2015-11-03T01:13:01-08:00
documentation
PRO PIPE
is_lateral_inspection
false
