Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Mar 17, 2017, 10:54 AM

  • 29 0268_29 0267 _17032017_040129.mpg

Date
03/17/2017
W/O
624460
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00550
PipeID
P24173
Time
3:54 AM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K4383
Sewer Name
29 WEST HILL STREET SEWER
City
SIGNAL HILL
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 29
Page No.
03
Purpose
Routine Assessment
Project
WO_624460_TV29035_MAR2017
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
8 in.
Width
8 in.
Upstream MH
29 0268
Downstream MH
29 0267
Dir. of Survey
Downstream
Length Surveyed
327.3 ft.
Total Length
327.3 ft.
Structural Index
3
Structural Quick
4133
Structural Rating
15
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
15
Pipe schematic from manhole 29 0268 to 29 0267
MH: 29 0268MH: 29 0267downstream0 ft. AMH - Upstream Manhole, Survey Begins - 29 02680 ft. MWL - Water Level, 5 %of cross sectional area0 ft. MWM - Water Mark, 5 %of cross sectional area81.4 ft. TF - Tap Factory Made, at 09 o'clock, -, within 8 inches of joint: NO, 6"83.7 ft. TF - Tap Factory Made, at 03 o'clock, -, within 8 inches of joint: NO, 6"134.9 ft. TF - Tap Factory Made, at 03 o'clock, -, within 8 inches of joint: NO, 6"135.3 ft. TFC - Tap Factory Made Capped, at 09 o'clock, -, within 8 inches of joint: NO, 6"135.3 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES141.7 ft. CL - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: NO187.2 ft. TF - Tap Factory Made, at 03 o'clock, -, within 8 inches of joint: NO, 6"187.5 ft. TF - Tap Factory Made, at 09 o'clock, -, within 8 inches of joint: NO, 6"224.4 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES237.6 ft. TF - Tap Factory Made, at 09 o'clock, -, within 8 inches of joint: NO, 6"268.7 ft. CM - Crack Multiple, from 09 to 02 o'clock, within 8 inches of joint: YES284.9 ft. TF - Tap Factory Made, at 09 o'clock, -, within 8 inches of joint: NO, 6"286.7 ft. FM - Fracture Multiple, from 01 to 05 o'clock, within 8 inches of joint: YES288.2 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"327.3 ft. AMH - Downstream Manhole, Survey Ends - 29 0267

Observation photos (5)

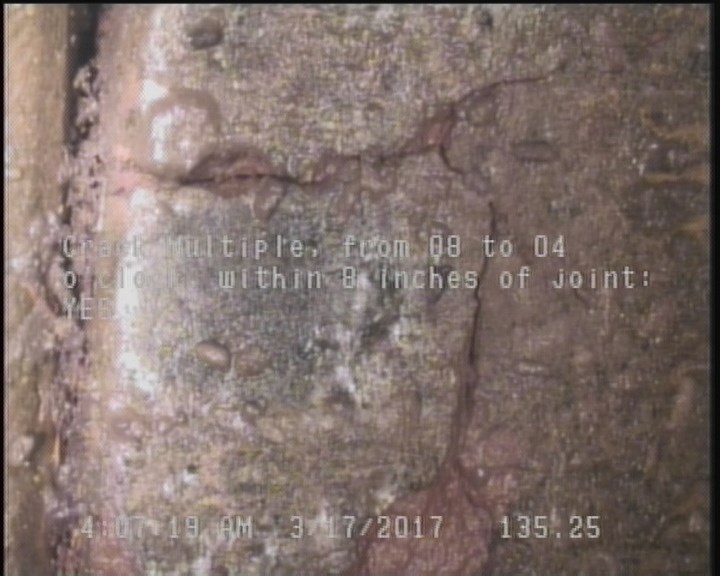

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

    135.3 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

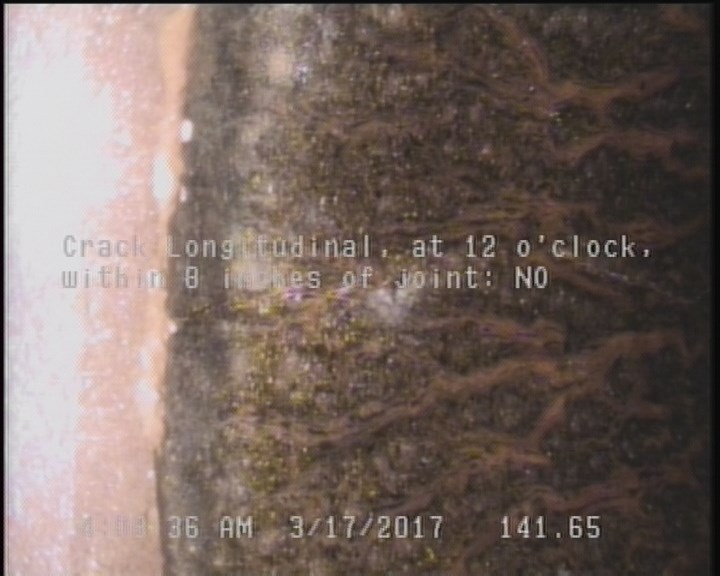

  • Crack Longitudinal, at 12 o'clock, within 8 inches of joint: NO

    141.7 ft. - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: NO

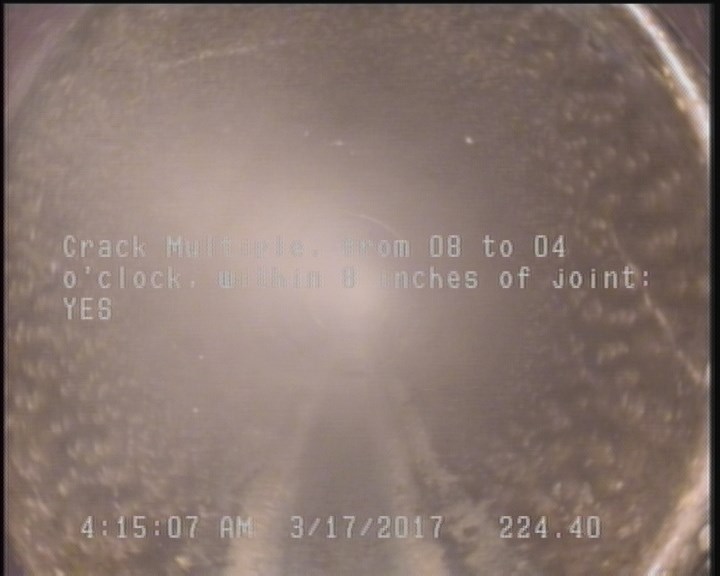

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

    224.4 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

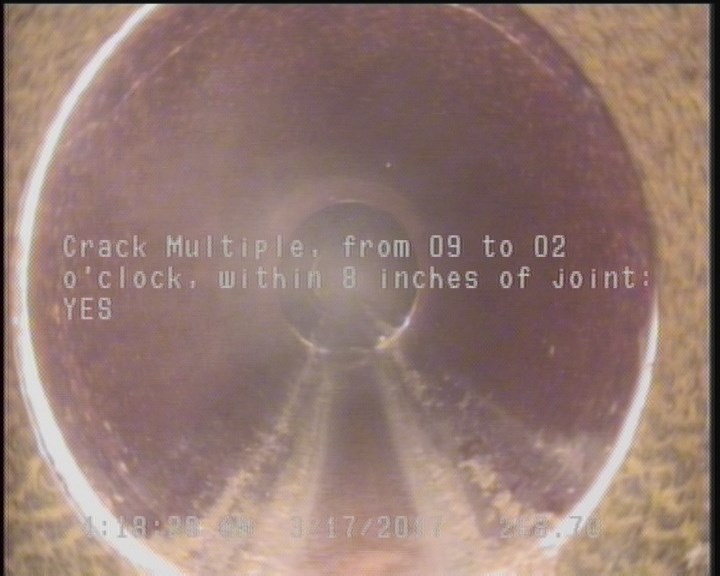

  • Crack Multiple, from 09 to 02 o'clock, within 8 inches of joint: YES

    268.7 ft. - Crack Multiple, from 09 to 02 o'clock, within 8 inches of joint: YES

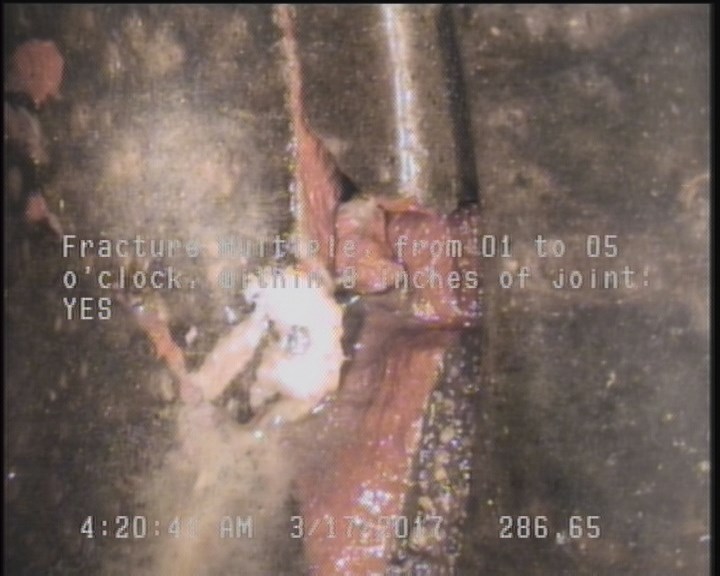

  • Fracture Multiple, from 01 to 05 o'clock, within 8 inches of joint: YES

    286.7 ft. - Fracture Multiple, from 01 to 05 o'clock, within 8 inches of joint: YES

All inspections of P24173Work order 624460

Observations (18)

DistanceCodeObservation
141.7CL—
0AMH29 0268
0MWL—
284.9TF—
81.4TF—
237.6TF—
187.2TF—
268.7CM—
135.3TFC—
327.3AMH29 0267
286.7FM—
134.9TF—
83.7TF—
187.5TF—
135.3CM—
288.2TF—
224.4CM—
0MWM—

Properties (6)

additional_info
SC306892
custom_field_two
3
customer
LACSD
datetime
2017-03-17T03:54:57-07:00
documentation
PROPIPE
is_lateral_inspection
false
