Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Mar 31, 2017, 06:01 AM

  • 20 0069_20 0068_30032017_230253.mpg

Date
03/30/2017
W/O
624441
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00742
PipeID
P18990
Time
11:01 PM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K4457
Sewer Name
20 TRUNK "A"
City
PALMDALE
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 20
Page No.
02
Purpose
Routine Assessment
Project
WO_624441_TV20023_MAR2017
Sewer Type
Gravity
Material
NRCP
Shape
Circular
Height
18 in.
Width
18 in.
Upstream MH
20 0069
Downstream MH
20 0068
Dir. of Survey
Downstream
Length Surveyed
390.9 ft.
Total Length
390.9 ft.
Structural Index
3
Structural Quick
3N00
Structural Rating
231
O&M Index
2
O&M Quick
2M00
O&M Rating
136
Overall Index
3
Overall Quick
—
Overall Rating
367
Pipe schematic from manhole 20 0069 to 20 0068
MH: 20 0069MH: 20 0068downstream0 ft. AMH - Upstream Manhole, Survey Begins - 20 00690 ft. MWL - Water Level, 5 %of cross sectional area0 ft. MWM - Water Mark, 5 %of cross sectional area3 ft. MGO - General Observation - MAG COAT3.6 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start48.2 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"50.6 ft. DSZ - Deposits Settled Other, 10 %of cross sectional area, at 06 o'clock, , within 8 inches of joint: NO, Start96.5 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"150.2 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"197.8 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"245.9 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"348.6 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"390.9 ft. DSZ - Deposits Settled Other, 10 %of cross sectional area, at 06 o'clock, , within 8 inches of joint: NO, Finish390.9 ft. AMH - Downstream Manhole, Survey Ends - 20 0068390.9 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish

Observation photos (2)

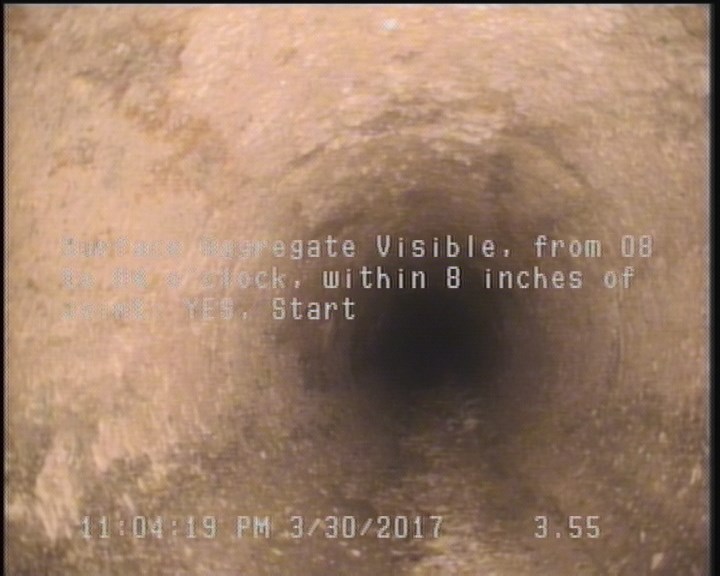

  • Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    3.6 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

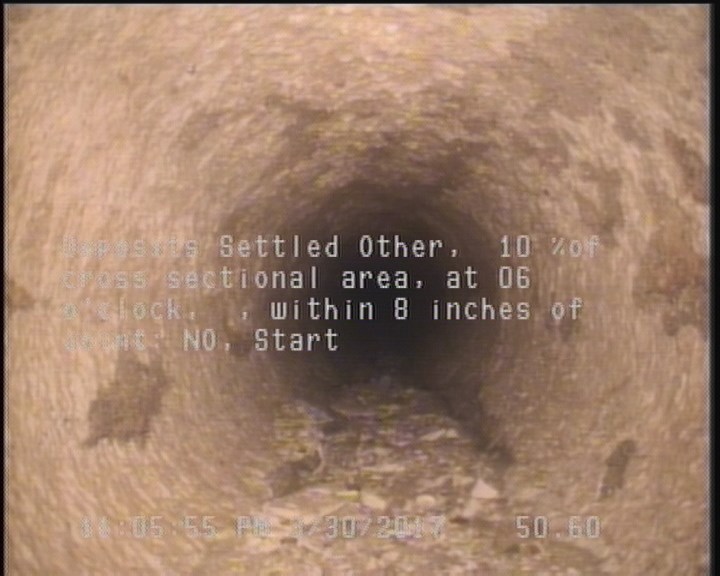

  • Deposits Settled Other, 10 %of cross sectional area, at 06 o'clock, , within 8 inches of joint: NO, Start

    50.6 ft. - Deposits Settled Other, 10 %of cross sectional area, at 06 o'clock, , within 8 inches of joint: NO, Start

All inspections of P18990Work order 624441

Observations (15)

DistanceCodeObservation
3MGOMAG COAT
390.9DSZ—
348.6TFC—
0AMH20 0069
0MWL—
245.9TFC—
3.6SAV—
390.9AMH20 0068
96.5TFC—
48.2TFC—
390.9SAV—
197.8TFC—
150.2TFC—
50.6DSZ—
0MWM—

Properties (6)

additional_info
SC345166
custom_field_two
3
customer
LACSD
datetime
2017-03-30T23:01:59-07:00
documentation
PROPIPE
is_lateral_inspection
false
