Wastewater/Activity/PacpInspection/1.0Mar 28, 2017, 10:44 AM
20 0218_20 0217_28032017_034435.mpg
- Date
- 03/28/2017
- W/O
- 624439
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00735
- PipeID
- P19185
- Time
- 3:44 AM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4399
- Sewer Name
- 20 AVENUE "Q" TRUNK
- City
- PALMDALE
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 20
- Page No.
- 07
- Purpose
- Routine Assessment
- Project
- WO_624439_TV20019_MAR2017
- Sewer Type
- Gravity
- Material
- NRCP
- Shape
- Circular
- Height
- 12 in.
- Width
- 12 in.
- Upstream MH
- 20 0218
- Downstream MH
- 20 0217
- Dir. of Survey
- Downstream
- Length Surveyed
- 319 ft.
- Total Length
- 319 ft.
- Structural Index
- 3
- Structural Quick
- 3L22
- Structural Rating
- 193
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 193
Observation photos (3)

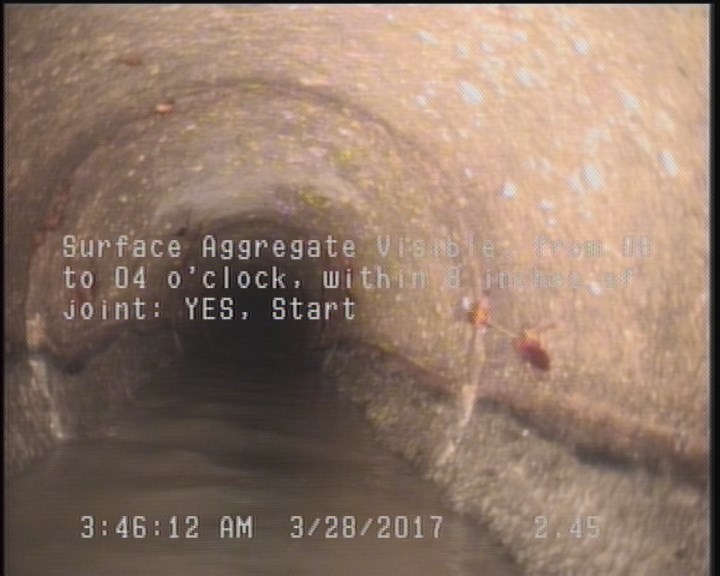

2.5 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

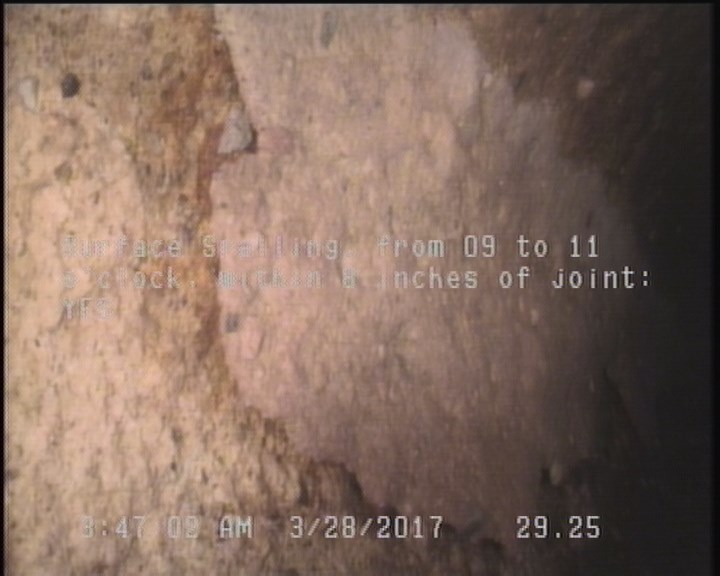

29.3 ft. - Surface Spalling, from 09 to 11 o'clock, within 8 inches of joint: YES

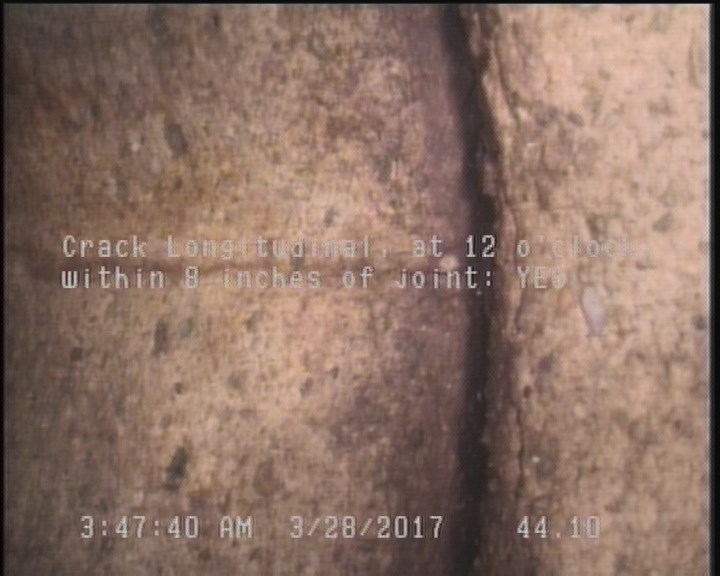

44.1 ft. - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES
Observations (20)
| Distance | Code | Observation |
|---|---|---|
| 226.4 | TFC | — |
| 125.6 | TFC | — |
| 171 | TFC | — |
| 128.6 | TFC | — |
| 271.9 | TFC | — |
| 223.3 | TFC | — |
| 0 | MGO | CONNECTION AT MH 3 O'CLOCK CAPPED |
| 317.3 | SAV | — |
| 73.3 | TFC | — |
| 0 | MWM | — |
| 0 | AMH | 20 0218 |
| 0 | MGO | CONNECTION AT MH 9 O'CLOCK CAPPED |
| 319 | AMH | 20 0217 |
| 44.1 | CL | — |
| 0 | MWL | — |
| 29.3 | SSS | — |
| 76.2 | TF | — |
| 174.2 | TFC | — |
| 275 | TFC | — |
| 2.5 | SAV | — |
Properties (6)
- additional_info
- SC345158
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-03-28T03:44:04-07:00
- documentation
- PROPIPE
- is_lateral_inspection
- false
