Wastewater/Activity/PacpInspection/1.0Nov 29, 2018, 09:36 AM
16 0314_16 0313_11292018_014835.mp4
- Date
- 11/29/2018
- W/O
- 0742114
- Weather
- Heavy Rain
- Operator/Surveyor
- MARTIN
- Sewer ID
- Z00665
- PipeID
- P13365
- Time
- 1:36 AM
- Certificate
- U-1014-06022543
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- H1065
- Sewer Name
- 16 SAN MARINO OUTFALL TRUNK
- City
- ALHAMBRA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 16
- Page No.
- 21
- Purpose
- Routine Assessment
- Project
- 20181129MDM_SAN_MARINO_OUTFALL_TRUNK
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 22 in.
- Upstream MH
- 16 0313
- Downstream MH
- 16 0314
- Dir. of Survey
- Upstream
- Length Surveyed
- 44.5 ft.
- Total Length
- 44.5 ft.
- Structural Index
- 1
- Structural Quick
- 1100
- Structural Rating
- 1
- O&M Index
- 3
- O&M Quick
- 3200
- O&M Rating
- 6
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 7
Observation photos (4)

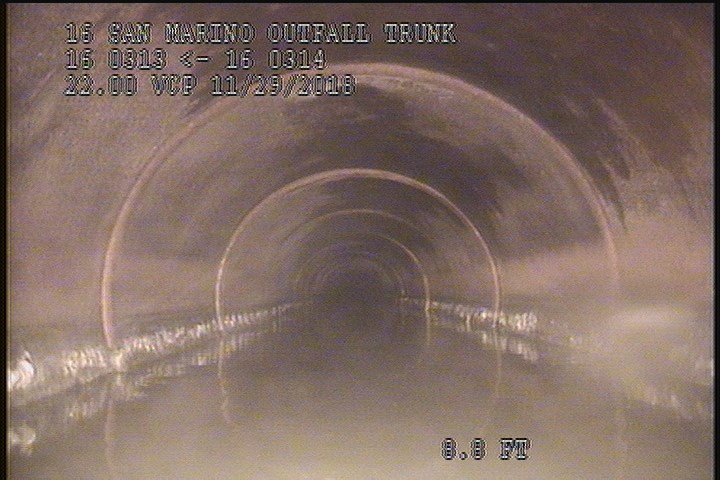

8.8 ft. - General Observation - 22" VCP

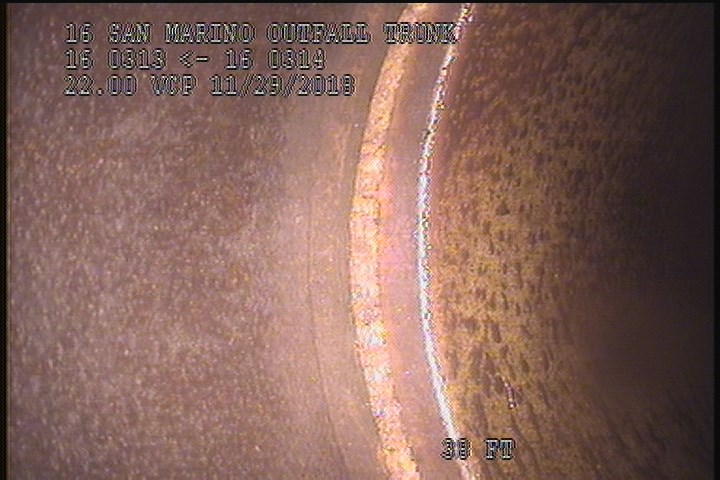

38 ft. - Joint Offset Medium - SEALED

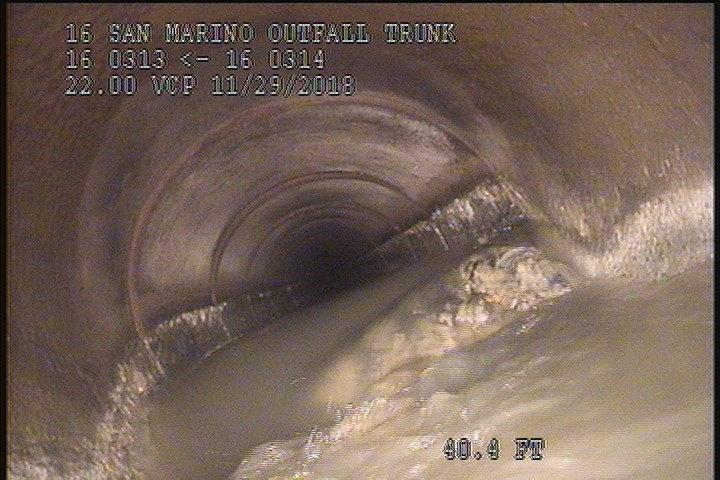

44 ft. - Roots Medium Joint, from 04 to 08 o'clock, 30 %, within 8 inches of joint: YESR

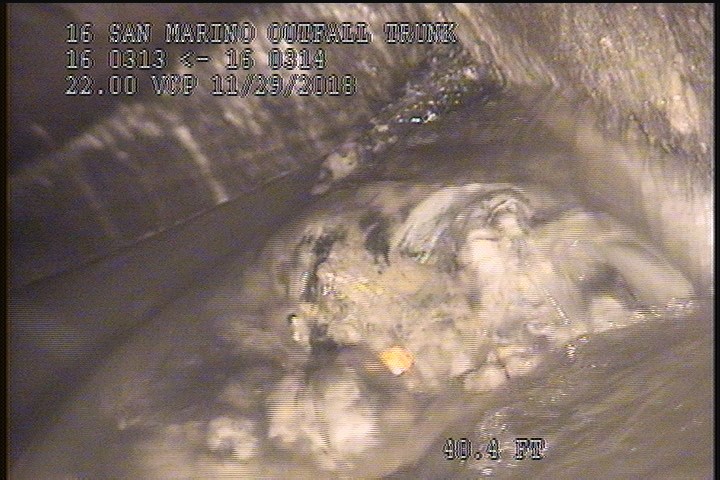

44 ft. - Roots Medium Joint, from 04 to 08 o'clock, 30 %, within 8 inches of joint: YESR
Observations (10)
| Distance | Code | Observation |
|---|---|---|
| 0 | AMH | 1:50AM |
| 0 | MWL | — |
| 0 | MWM | — |
| 38 | JOM | SEALED |
| 44 | RMJ | — |
| 44 | RMJ | — |
| 40.3 | TF | Open |
| 8.8 | MGO | 22" VCP |
| 44.5 | AMH | 2:00AM( COMPLETED REVERSE INSPECTION |
| 25.1 | TF | Open |
Properties (6)
- custom_field_three
- HAIRLINES
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2018-11-29T01:36:20-08:00
- documentation
- MARTIN,REVELES,OLIVER 111,BRAR
- is_lateral_inspection
- false
