Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Nov 29, 2018, 08:27 AM

  • 16 0314_16 0313_11292018_003530.mp4

Date
11/29/2018
W/O
0742114
Weather
Heavy Rain
Operator/Surveyor
MARTIN
Sewer ID
Z00665
PipeID
P13365
Time
12:27 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H1065
Sewer Name
16 SAN MARINO OUTFALL TRUNK
City
ALHAMBRA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 16
Page No.
21
Purpose
Routine Assessment
Project
20181129MDM_SAN_MARINO_OUTFALL_TRUNK
Material
Vitrified Clay Pipe
Shape
Circular
Height
22 in.
Upstream MH
16 0314
Downstream MH
16 0313
Dir. of Survey
Downstream
Length Surveyed
254.9 ft.
Total Length
254.9 ft.
Structural Index
3
Structural Quick
3422
Structural Rating
16
O&M Index
3
O&M Quick
4131
O&M Rating
13
Overall Index
3
Overall Quick
—
Overall Rating
29
Pipe schematic from manhole 16 0314 to 16 0313
MH: 16 0314MH: 16 0313downstream0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. MWM - Water Mark, 30 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 12:30AM8.6 ft. TFD - Tap Factory Made Defective, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Active-30% DBRIE-RAGS8.6 ft. DAR - Deposits Attached Ragging, 5 %of cross sectional area, from 09 to 10 o'clock, , within 8 inches of joint: YES - AT CONN10.7 ft. TB - Tap Break-In, at 02 o'clock, -, within 8 inches of joint: YES, 6", 6" - Open13.7 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Open15.8 ft. MGO - General Observation - 22" VCP15.8 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Capped57.7 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Open59.8 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Open66.5 ft. FC - Fracture Circumferential, from 08 to 10 o'clock, within 8 inches of joint: YES - HAIRLINE75.5 ft. TFD - Tap Factory Made Defective, at 01 o'clock, -, within 8 inches of joint: YES, 6" - Open-50% ROOTS84.6 ft. FL - Fracture Longitudinal, at 09 o'clock, within 8 inches of joint: YES - H87.2 ft. FL - Fracture Longitudinal, at 02 o'clock, within 8 inches of joint: YES - H101.1 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Open112.9 ft. FL - Fracture Longitudinal, at 04 o'clock, within 8 inches of joint: YES - H158.4 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Open160.9 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Open179 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Open188.2 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: NO - THIN SURFACE FLAKING209.3 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Open236.5 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES - H236.6 ft. MWM - Water Mark, 50 %of cross sectional area236.6 ft. MWL - Water Level, 30 %of cross sectional area254.7 ft. RMJ - Roots Medium Joint, from 03 to 09 o'clock, 30 %, within 8 inches of joint: YESR254.9 ft. MSA - Survey Abandoned - 30% ROOTS

Observation photos (3)

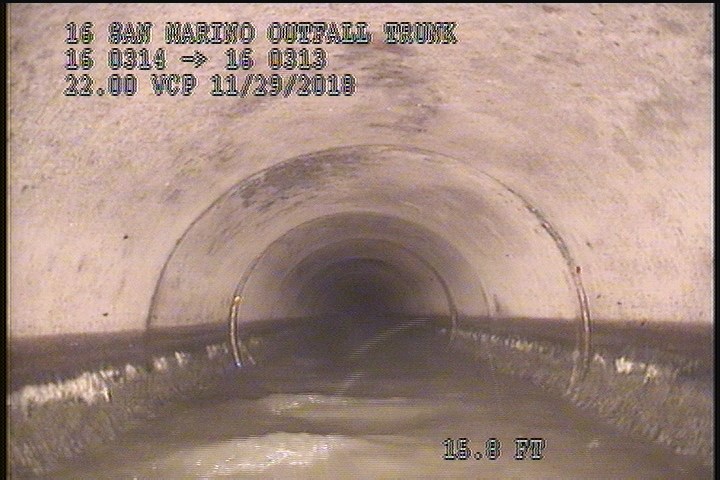

  • General Observation - 22" VCP

    15.8 ft. - General Observation - 22" VCP

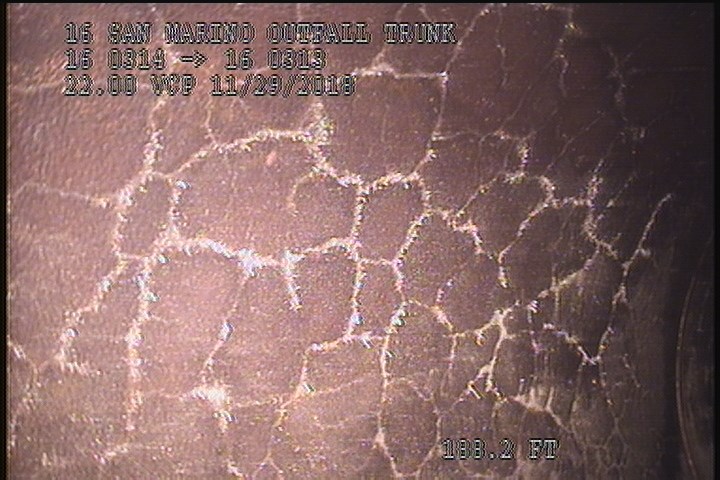

  • Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: NO - THIN SURFACE FLAKING

    188.2 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: NO - THIN SURFACE FLAKING

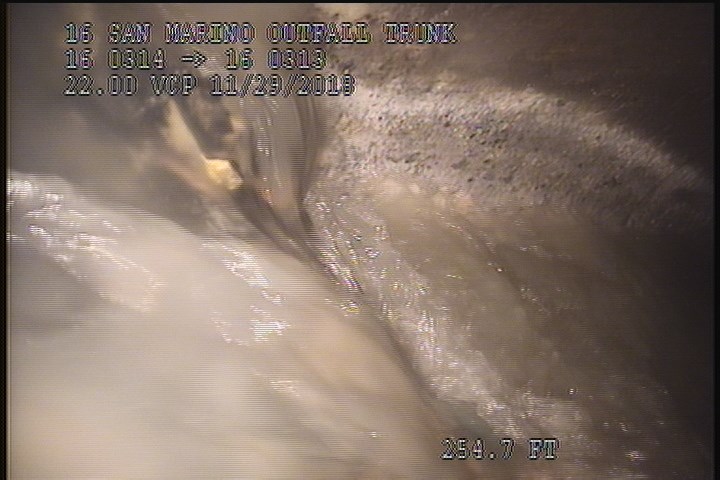

  • Roots Medium Joint, from 03 to 09 o'clock, 30 %, within 8 inches of joint: YESR

    254.7 ft. - Roots Medium Joint, from 03 to 09 o'clock, 30 %, within 8 inches of joint: YESR

All inspections of P13365Work order 0742114

Observations (27)

DistanceCodeObservation
57.7TFOpen
188.2SSSTHIN SURFACE FLAKING
112.9FLH
8.6TFDActive-30% DBRIE-RAGS
236.5FLH
179TFOpen
10.7TBOpen
66.5FCHAIRLINE
209.3TFOpen
101.1TFOpen
15.8MGO22" VCP
254.7RMJ—
236.6MWM—
59.8TFOpen
160.9TFOpen
0MWL—
8.6DARAT CONN
0MWM—
84.6FLH
236.6MWL—
75.5TFDOpen-50% ROOTS
254.9MSA30% ROOTS
13.7TFOpen
15.8TFCCapped
158.4TFOpen
0AMH12:30AM
87.2FLH

Properties (6)

custom_field_three
HAIRLINES
custom_field_two
4
customer
LACSD
datetime
2018-11-29T00:27:46-08:00
documentation
MARTIN,REVELES,OLIVER 111,BRAR
is_lateral_inspection
false
