Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Nov 28, 2018, 06:11 PM

  • 29 0416_29 0415_11282018_101641.mp4

Date
11/28/2018
W/O
0741915
Weather
Dry
Operator/Surveyor
FRANKLIN
Sewer ID
Z00355
PipeID
P24453
Time
10:11 AM
Certificate
U-415-06024039
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7864
Sewer Name
29 LEWIS AVENUE TRUNK
City
SIGNAL HILL
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 29
Page No.
03
Purpose
Maintenance Related
Project
20181128DF_LEWIS_AVENUE_TRUNK
Material
Vitrified Clay Pipe
Shape
Circular
Height
7.679999828338623 in.
Upstream MH
29 0415
Downstream MH
29 0416
Dir. of Survey
Upstream
Length Surveyed
121.2 ft.
Total Length
121.2 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
2
O&M Quick
2100
O&M Rating
2
Overall Index
2
Overall Quick
—
Overall Rating
2
Pipe schematic from manhole 29 0415 to 29 0416
MH: 29 0415MH: 29 0416upstream0 ft. RFB - Roots Fine Barrell, at 02 o'clock, within 8 inches of joint: YES - 75% ROOTS0 ft. MSA - Survey Abandoned - ROOT MASS0 ft. MGP - General Photograph0 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 4", 4" - 90% ROOTS/LATERAL0.1 ft. MGP - General Photograph121.2 ft. MWM - Water Mark, 15 %of cross sectional area121.2 ft. AMH - Downstream Manhole, Survey Begins - 10:13 AM121.2 ft. MGO - General Observation - Conn. @ Mh, 2 O' Clock. Active121.2 ft. MGO - General Observation - ROACHES @ MH121.2 ft. MWL - Water Level, 10 %of cross sectional area

Observation photos (5)

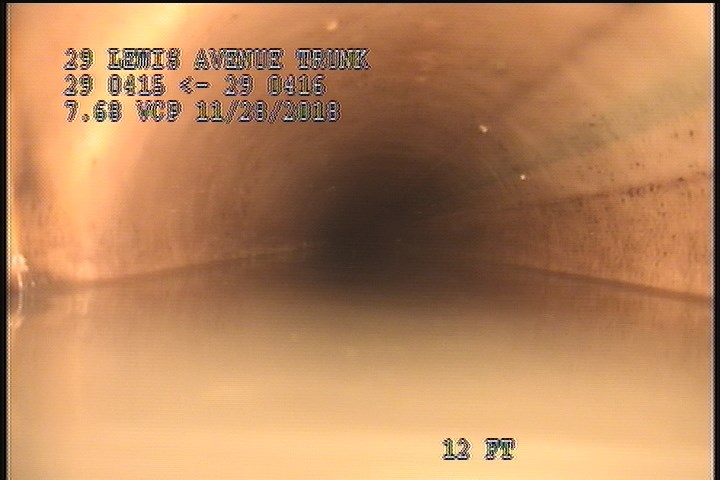

  • Water Mark, 15 %of cross sectional area

    0 ft. - Water Mark, 15 %of cross sectional area

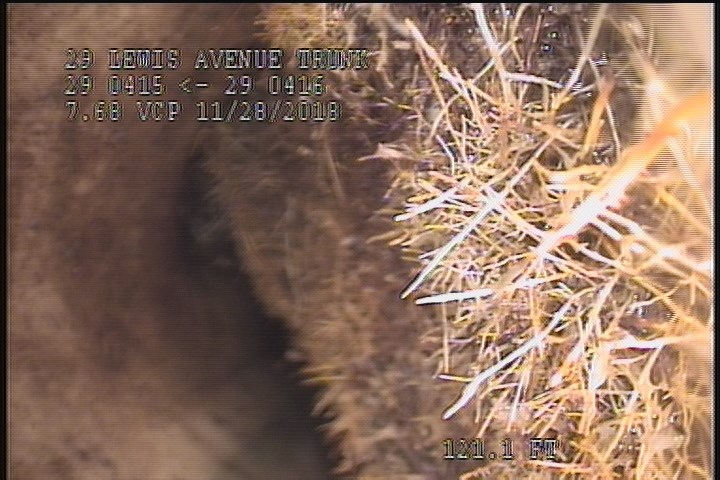

  • General Photograph

    121.1 ft. - General Photograph

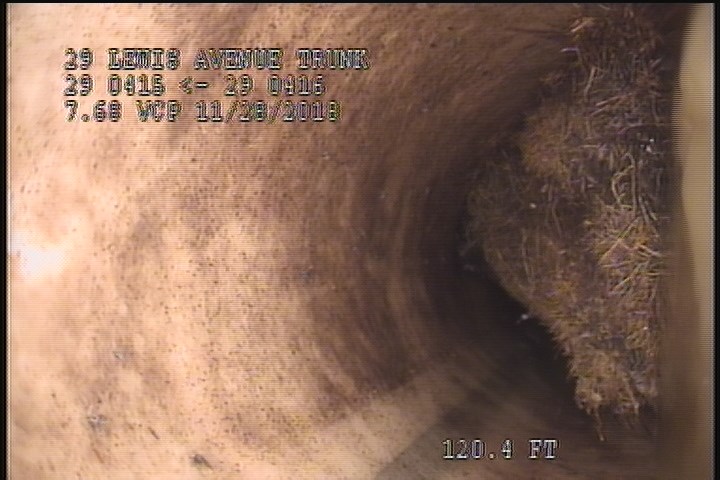

  • Roots Fine Barrell, at 02 o'clock, within 8 inches of joint: YES - 75% ROOTS

    121.2 ft. - Roots Fine Barrell, at 02 o'clock, within 8 inches of joint: YES - 75% ROOTS

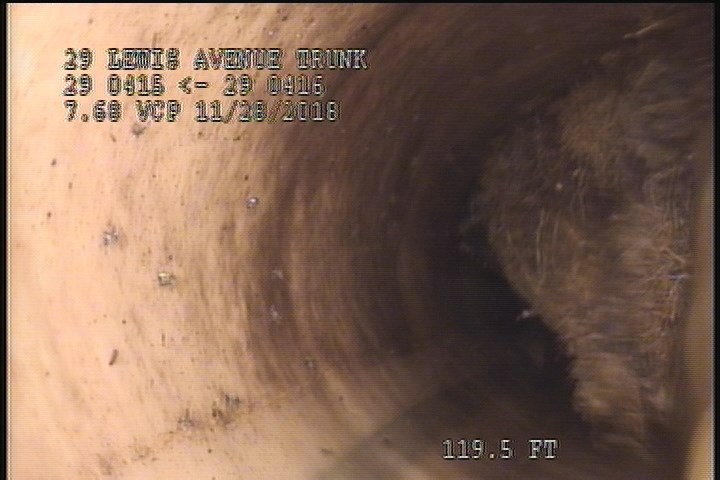

  • General Photograph

    121.2 ft. - General Photograph

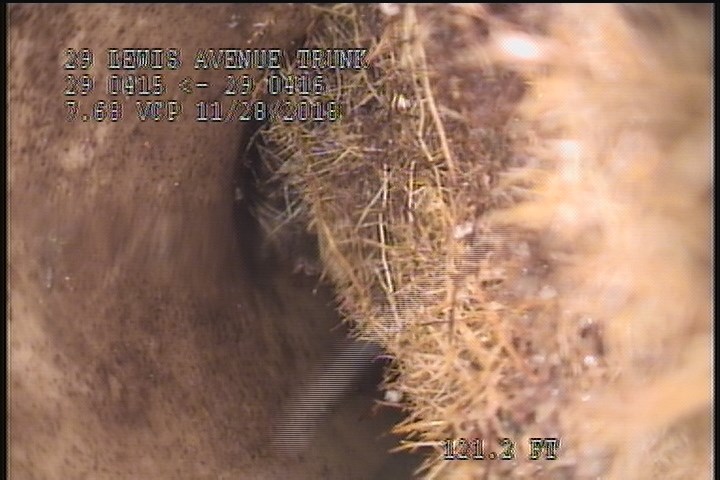

  • Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 4", 4" - 90% ROOTS/LATERAL

    121.2 ft. - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 4", 4" - 90% ROOTS/LATERAL

All inspections of P24453Work order 0741915

Observations (10)

DistanceCodeObservation
0MWM—
121.2RFB75% ROOTS
121.1MGP—
121.2MSAROOT MASS
0AMH10:13 AM
121.2MGP—
0MGOConn. @ Mh, 2 O' Clock. Active
0MGOROACHES @ MH
0MWL—
121.2TF90% ROOTS/LATERAL

Properties (6)

additional_info
POST ROOT EVALUATION ONLY
custom_field_two
5
customer
LACSD
datetime
2018-11-28T10:11:50-08:00
documentation
FRANKLIN, IGNACIO, CASTILLO, RUVALCABA
is_lateral_inspection
false
