Wastewater/Activity/PacpInspection/1.0Nov 28, 2018, 04:55 PM
29 0416_29 0415_11282018_092325.mp4
- Date
- 11/28/2018
- W/O
- 0741915
- Weather
- Dry
- Operator/Surveyor
- FRANKLIN
- Sewer ID
- Z00355
- PipeID
- P24453
- Time
- 8:55 AM
- Certificate
- U-415-06024039
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- G7864
- Sewer Name
- 29 LEWIS AVENUE TRUNK
- City
- SIGNAL HILL
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 29
- Page No.
- 03
- Purpose
- Maintenance Related
- Project
- 20181128DF_LEWIS_AVENUE_TRUNK
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 7.679999828338623 in.
- Upstream MH
- 29 0416
- Downstream MH
- 29 0415
- Dir. of Survey
- Downstream
- Length Surveyed
- 96.5 ft.
- Total Length
- 96.5 ft.
- Structural Index
- 2
- Structural Quick
- 2100
- Structural Rating
- 2
- O&M Index
- 5
- O&M Quick
- 5100
- O&M Rating
- 5
- Overall Index
- 4
- Overall Quick
- —
- Overall Rating
- 7
Observation photos (6)

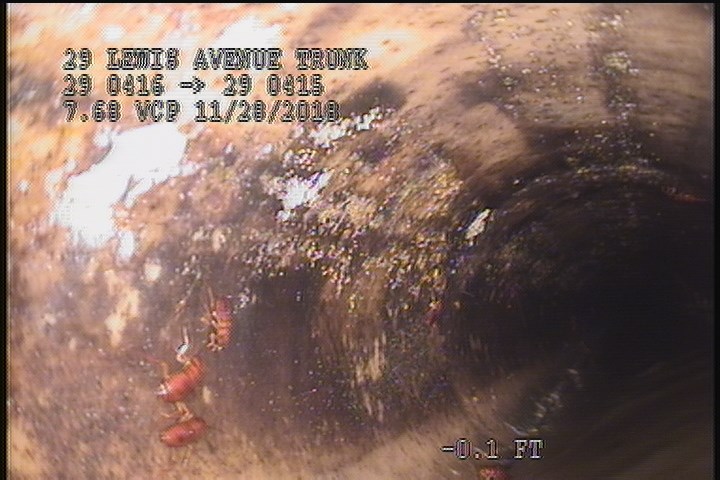

0.1 ft. - Water Level, 10 %of cross sectional area

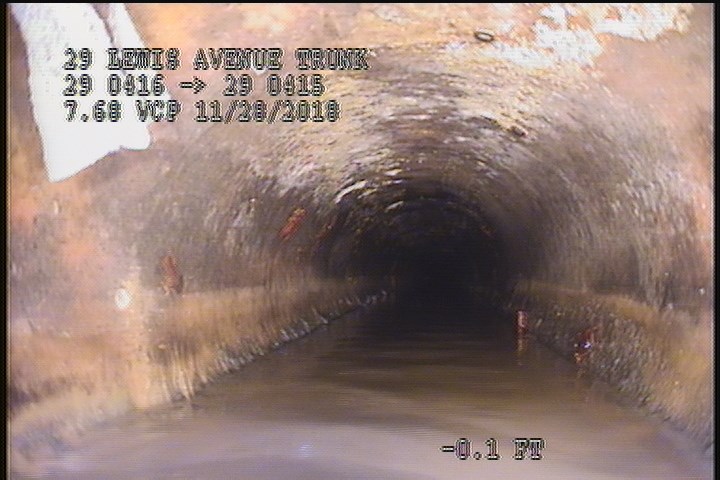

0.1 ft. - Water Level, 15 %of cross sectional area

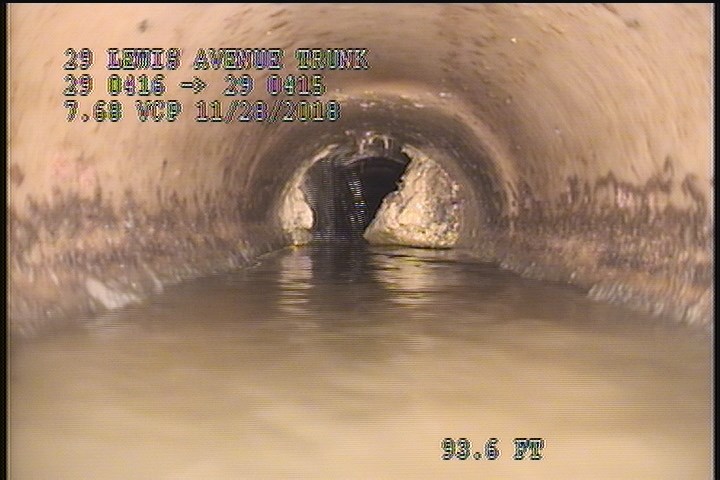

93.6 ft. - General Photograph

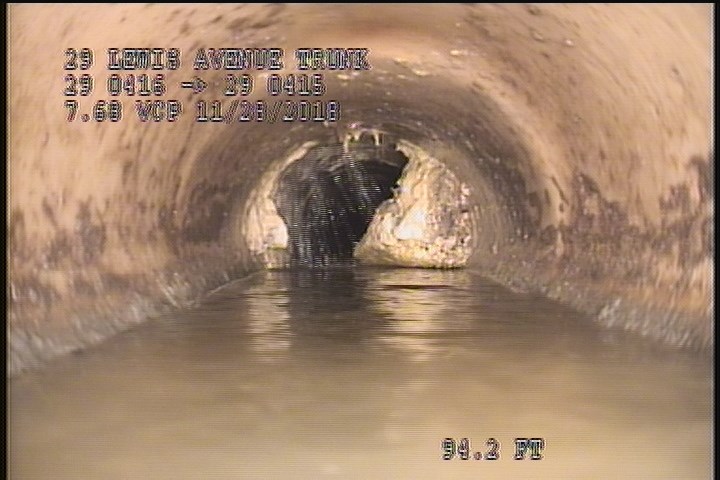

94.2 ft. - Deposits Attached Grease, 29 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES

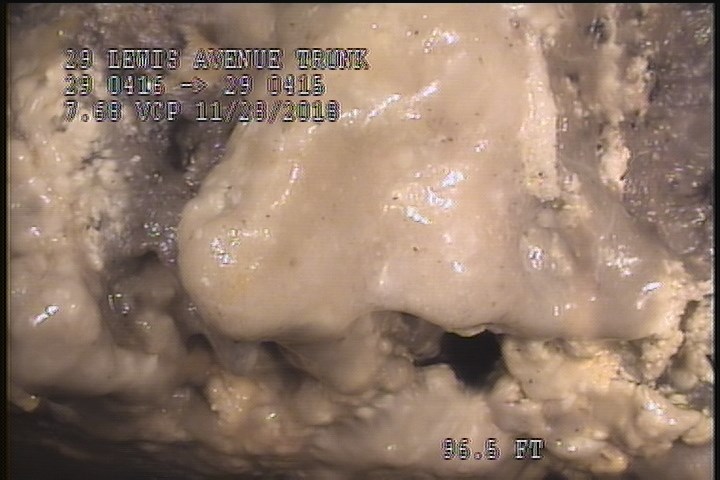

96.5 ft. - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: YES, 4"
96.5 ft. - General Observation - Grease Throughout The Reach (5%)
Observations (11)
| Distance | Code | Observation |
|---|---|---|
| 0.1 | MWL | — |
| 96.5 | TFA | — |
| 0.1 | MWL | — |
| 21.1 | MWLS | — |
| 93.6 | MGP | — |
| 96.5 | MGO | Grease Throughout The Reach (5%) |
| 96.5 | MSA | GREASE DEPOSIT |
| 94.2 | DAGS | — |
| 24.3 | MWLS | — |
| 0 | AMH | 9:16 AM |
| 0.1 | MGO | ROACHES @ MH |
Properties (7)
- additional_info
- POST ROOT EVALUATION ONLY
- custom_field_two
- 5
- customer
- LACSD
- datetime
- 2018-11-28T08:55:16-08:00
- documentation
- FRANKLIN, IGNACIO, CASTILLO, RUVALCABA
- is_lateral_inspection
- false
- lining
- CIPP
