Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Nov 28, 2018, 01:12 PM

  • 18 0036_18 0453_11282018_052917.mp4

Date
11/28/2018
W/O
O740960
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00691
PipeID
P14305
Time
5:12 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H1064
Sewer Name
18 NORTH PLANT OUTFALL TRUNK
City
WHITTIER
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 18
Page No.
20
Purpose
Capital Improvement Program Assesment
Project
20181126MDM_NORTH_PLANT_OUTFALL_TRUNK
Material
Vitrified Clay Pipe
Shape
Circular
Height
24 in.
Upstream MH
18 0036
Downstream MH
18 0453
Dir. of Survey
Downstream
Length Surveyed
12.9 ft.
Total Length
12.9 ft.
Structural Index
3
Structural Quick
3100
Structural Rating
3
O&M Index
2
O&M Quick
2100
O&M Rating
2
Overall Index
3
Overall Quick
—
Overall Rating
5
Pipe schematic from manhole 18 0036 to 18 0453
MH: 18 0036MH: 18 0453downstream0 ft. AMH - Upstream Manhole, Survey Begins - 5:25AM0 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. MGO - General Observation - Conn. @ Mh, 9 O' Clock. Active-INCOMING0 ft. MGO - General Observation - Conn. @ Mh, 3 O' Clock. Active-OUTGOING0 ft. MWL - Water Level, 0 %of cross sectional area - STOPLOG IN PLACE1 ft. MGO - General Observation - STOPLOG IN PLACE2 ft. MGO - General Observation - 24" VCP2 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start - SLIGHT2 ft. DSZ - Deposits Settled Other, 10 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start - SLUDGE12.2 ft. DSZ - Deposits Settled Other, 10 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Finish - SLUDGE12.2 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Finish - SLIGHT12.2 ft. MGO - General Observation - ZOOM 12.97'12.9 ft. AMH - Downstream Manhole, Survey Ends - 5:35AM

Observation photos (5)

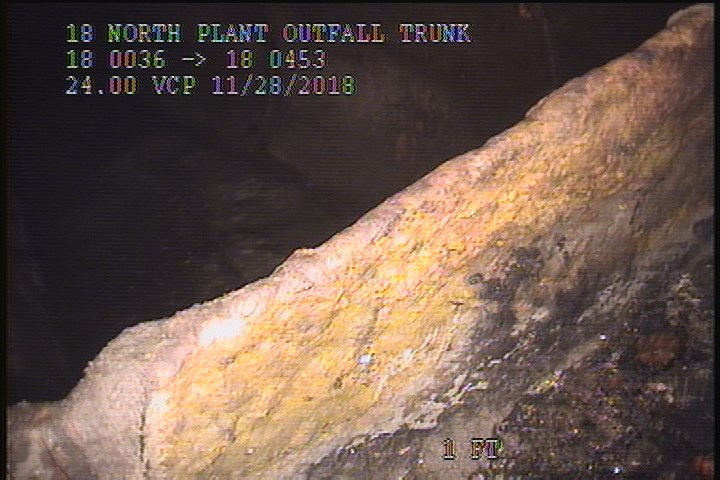

  • General Observation - STOPLOG IN PLACE

    1 ft. - General Observation - STOPLOG IN PLACE

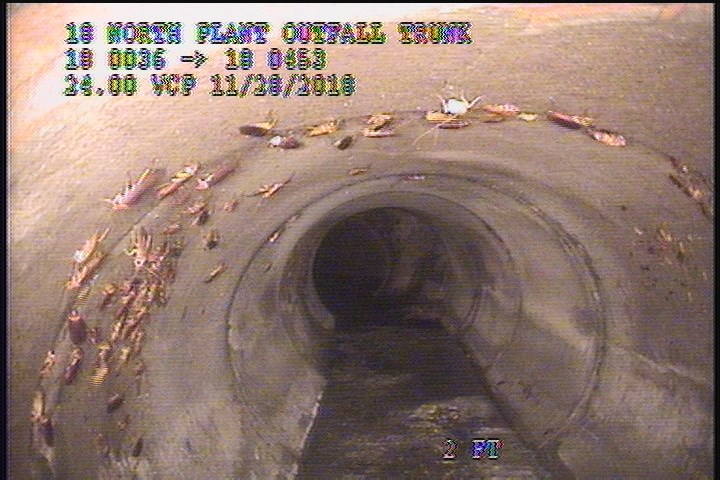

  • General Observation - 24" VCP

    2 ft. - General Observation - 24" VCP

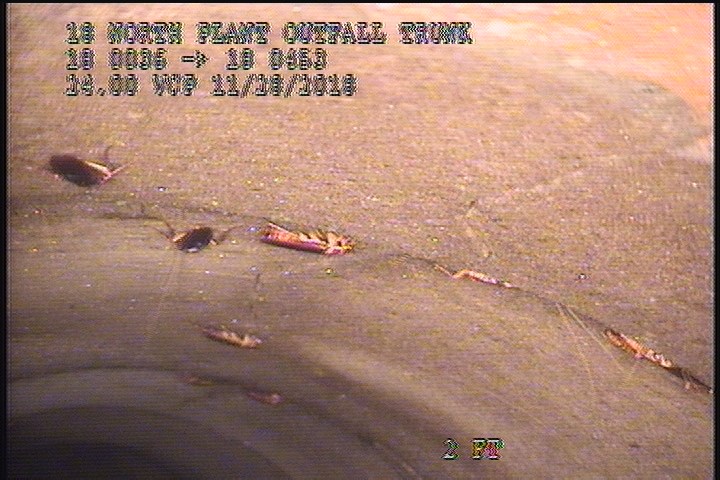

  • Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start - SLIGHT

    2 ft. - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start - SLIGHT

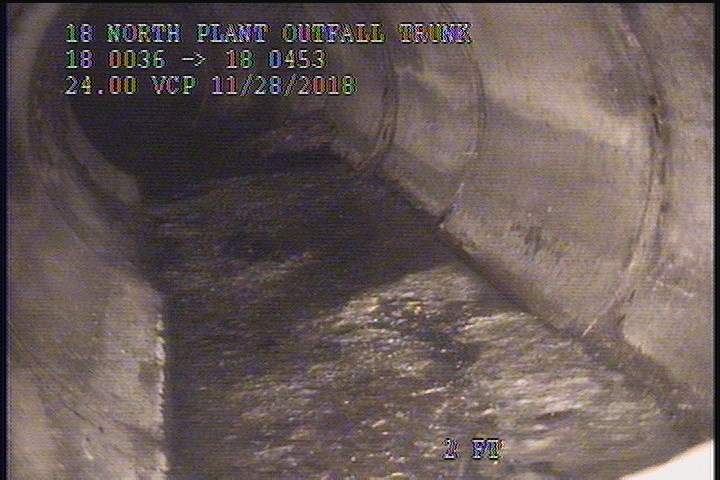

  • Deposits Settled Other, 10 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start - SLUDGE

    2 ft. - Deposits Settled Other, 10 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start - SLUDGE

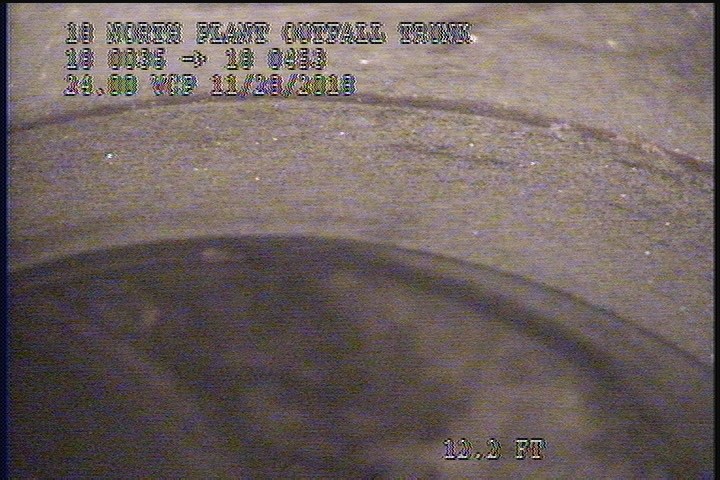

  • General Observation - ZOOM 12.97'

    12.2 ft. - General Observation - ZOOM 12.97'

All inspections of P14305Work order O740960

Observations (13)

DistanceCodeObservation
2MGO24" VCP
12.2DSZSLUDGE
0AMH5:25AM
0MWM—
2FLSLIGHT
0MGOConn. @ Mh, 9 O' Clock. Active-INCOMING
0MGOConn. @ Mh, 3 O' Clock. Active-OUTGOING
12.2FLSLIGHT
12.9AMH5:35AM
1MGOSTOPLOG IN PLACE
0MWLSTOPLOG IN PLACE
2DSZSLUDGE
12.2MGOZOOM 12.97'

Properties (6)

custom_field_three
SLIGHT LONG FRACTURE JOINT TO JOINT LONGER
custom_field_two
2
customer
LACSD
datetime
2018-11-28T05:12:18-08:00
documentation
MARTIN,REVELES,OLIVER 111,BRAR
is_lateral_inspection
false
