Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Nov 28, 2018, 12:30 PM

  • 18 0454_18 0036_11282018_044050.mp4

Date
11/28/2018
W/O
O740960
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00691
PipeID
P14306
Time
4:30 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H1064
Sewer Name
18 NORTH PLANT OUTFALL TRUNK
City
WHITTIER
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 18
Page No.
20
Purpose
Capital Improvement Program Assesment
Project
20181126MDM_NORTH_PLANT_OUTFALL_TRUNK
Material
Vitrified Clay Pipe
Shape
Circular
Height
24 in.
Upstream MH
18 0454
Downstream MH
18 0036
Dir. of Survey
Downstream
Length Surveyed
102.8 ft.
Total Length
102.8 ft.
Structural Index
3
Structural Quick
4337
Structural Rating
61
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
61
Pipe schematic from manhole 18 0454 to 18 0036
MH: 18 0454MH: 18 0036downstream0 ft. AMH - Upstream Manhole, Survey Begins - 4:45AM0 ft. MWM - Water Mark, 30 %of cross sectional area0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. MGO - General Observation - Conn. @ Mh, 3 O' Clock. Active8 ft. MGO - General Observation - 24" VCP8 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES - HAIRLINE10.7 ft. FC - Fracture Circumferential, from 01 to 02 o'clock, within 8 inches of joint: YES - SLIGHT10.7 ft. FL - Fracture Longitudinal, at 03 o'clock, within 8 inches of joint: YES - H20.4 ft. FC - Fracture Circumferential, from 08 to 10 o'clock, within 8 inches of joint: YES - H22.8 ft. FC - Fracture Circumferential, from 08 to 10 o'clock, within 8 inches of joint: YES - SL33.3 ft. FL - Fracture Longitudinal, at 11 o'clock, within 8 inches of joint: YES - SL33.3 ft. FL - Fracture Longitudinal, at 09 o'clock, within 8 inches of joint: YES - SL35.5 ft. FC - Fracture Circumferential, from 02 to 03 o'clock, within 8 inches of joint: YES - H43.2 ft. FC - Fracture Circumferential, from 01 to 03 o'clock, within 8 inches of joint: YES - SL45.9 ft. FC - Fracture Circumferential, from 09 to 12 o'clock, within 8 inches of joint: YES - SL50.9 ft. FC - Fracture Circumferential, from 08 to 12 o'clock, within 8 inches of joint: YES - SL50.9 ft. FL - Fracture Longitudinal, at 03 o'clock, within 8 inches of joint: YES - SL58.8 ft. FC - Fracture Circumferential, from 03 to 04 o'clock, within 8 inches of joint: YES - H63.3 ft. FC - Fracture Circumferential, from 09 to 12 o'clock, within 8 inches of joint: YES - H65.7 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start - SLIGHT65.7 ft. FL - Fracture Longitudinal, at 09 o'clock, within 8 inches of joint: YES - H78.6 ft. FM - Fracture Multiple, from 12 to 04 o'clock, within 8 inches of joint: NO - SLIGHT81 ft. FM - Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES - H83.1 ft. FH2 - Fracture Longitudinal Hinge, 2, from 11 to 01 o'clock, within 8 inches of joint: YES, Start - SLIGHT84.9 ft. FC - Fracture Circumferential, from 10 to 12 o'clock, within 8 inches of joint: YES - SL86.1 ft. FC - Fracture Circumferential, from 10 to 01 o'clock, within 8 inches of joint: YES - H86.1 ft. FH2 - Fracture Longitudinal Hinge, 2, from 11 to 01 o'clock, within 8 inches of joint: YES, Finish - SL88.8 ft. FC - Fracture Circumferential, from 02 to 04 o'clock, within 8 inches of joint: YES - SL90.9 ft. FC - Fracture Circumferential, from 01 to 04 o'clock, within 8 inches of joint: YES - SL90.9 ft. MGO - General Observation - SLIGHT AT 12:0093.1 ft. FC - Fracture Circumferential, from 12 to 02 o'clock, within 8 inches of joint: YES - SL102.5 ft. MGO - General Observation - Conn. @ Mh, 3 O' Clock. Active-OUTGOING102.5 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Finish - SLIGHT102.5 ft. MGO - General Observation - Conn. @ Mh, 9 O' Clock. Active-INCOMING102.5 ft. MGO - General Observation - Conn. @ Mh, 12 O' Clock. OPEN STOPLOG IN PLACE102.8 ft. AMH - Downstream Manhole, Survey Ends - 5:05AM

Observation photos (6)

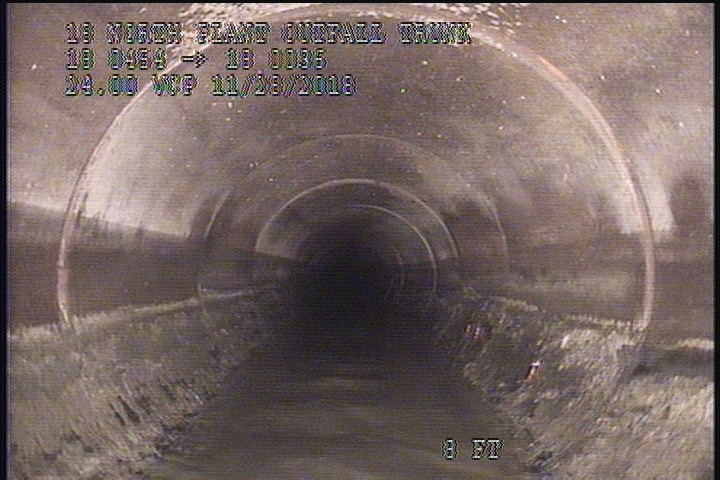

  • General Observation - 24" VCP

    8 ft. - General Observation - 24" VCP

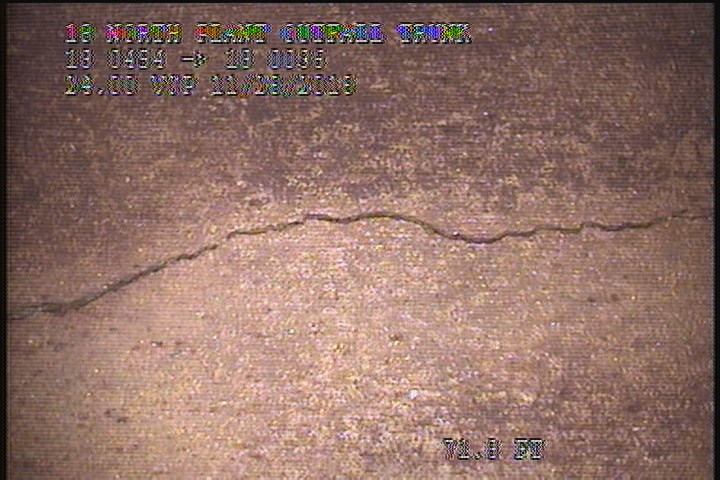

  • Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start - SLIGHT

    65.7 ft. - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start - SLIGHT

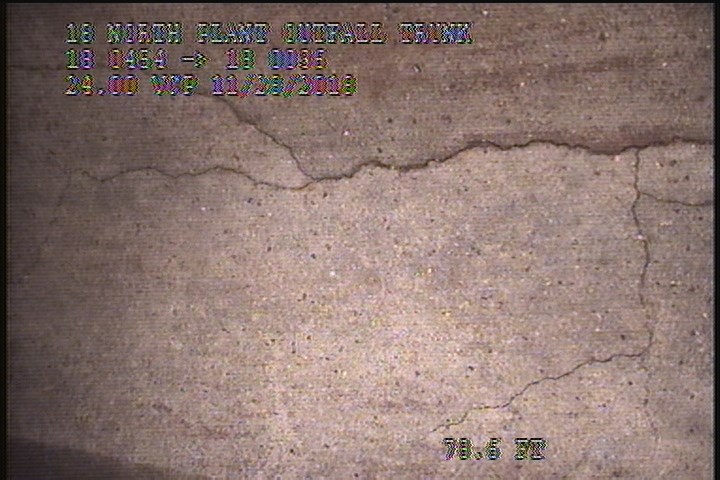

  • Fracture Multiple, from 12 to 04 o'clock, within 8 inches of joint: NO - SLIGHT

    78.6 ft. - Fracture Multiple, from 12 to 04 o'clock, within 8 inches of joint: NO - SLIGHT

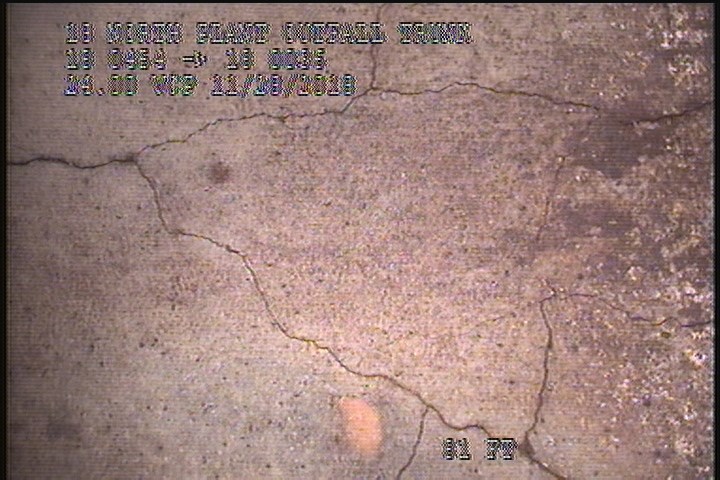

  • Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES - H

    81 ft. - Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES - H

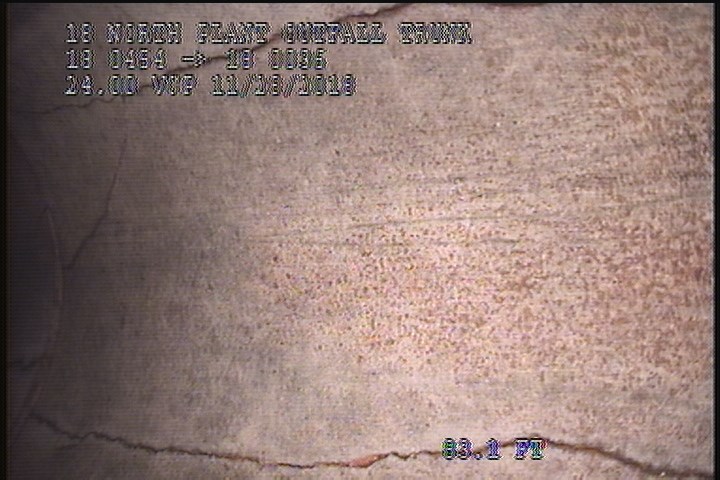

  • Fracture Longitudinal Hinge, 2, from 11 to 01 o'clock, within 8 inches of joint: YES, Start - SLIGHT

    83.1 ft. - Fracture Longitudinal Hinge, 2, from 11 to 01 o'clock, within 8 inches of joint: YES, Start - SLIGHT

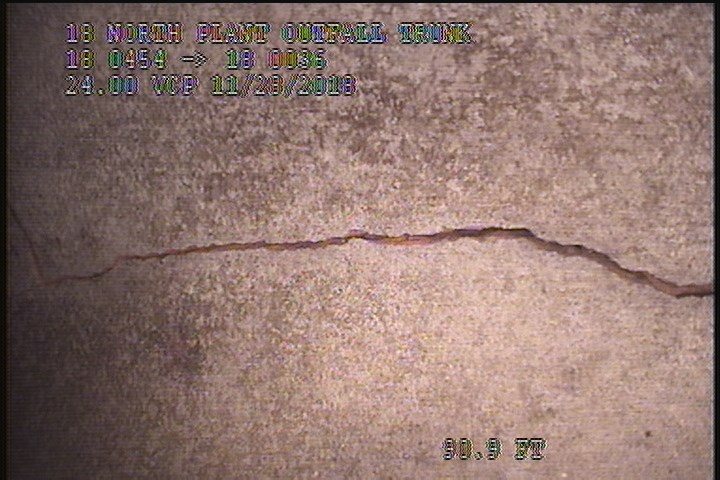

  • General Observation - SLIGHT AT 12:00

    90.9 ft. - General Observation - SLIGHT AT 12:00

All inspections of P14306Work order O740960

Observations (36)

DistanceCodeObservation
86.1FCH
43.2FCSL
90.9FCSL
83.1FH2SLIGHT
45.9FCSL
35.5FCH
33.3FLSL
10.7FCSLIGHT
84.9FCSL
65.7FLSLIGHT
50.9FCSL
0AMH4:45AM
58.8FCH
88.8FCSL
81FMH
93.1FCSL
102.5MGOConn. @ Mh, 3 O' Clock. Active-OUTGOING
20.4FCH
65.7FLH
0MWM—
86.1FH2SL
33.3FLSL
102.5FLSLIGHT
10.7FLH
8MGO24" VCP
0MWL—
102.8AMH5:05AM
78.6FMSLIGHT
22.8FCSL
8FLHAIRLINE
50.9FLSL
102.5MGOConn. @ Mh, 9 O' Clock. Active-INCOMING
63.3FCH
0MGOConn. @ Mh, 3 O' Clock. Active
90.9MGOSLIGHT AT 12:00
102.5MGOConn. @ Mh, 12 O' Clock. OPEN STOPLOG IN PLACE

Properties (6)

custom_field_three
HINGE 2 SLIGHT-SLIGHT LONG JOINT TO JOINT LONGER
custom_field_two
2
customer
LACSD
datetime
2018-11-28T04:30:06-08:00
documentation
MARTIN,REVELES,OLIVER 111,BRAR
is_lateral_inspection
false
