Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Nov 26, 2018, 08:29 AM

  • 18 0490_18 0489_11262018_004106.mp4

Date
11/26/2018
W/O
O740960
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00691
PipeID
P14344
Time
12:29 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H1061
Sewer Name
18 NORTH PLANT OUTFALL TRUNK
City
WHITTIER
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 18
Page No.
14
Purpose
Capital Improvement Program Assesment
Project
20181126MDM_NORTH_PLANT_OUTFALL_TRUNK
Material
Vitrified Clay Pipe
Shape
Circular
Height
16 in.
Upstream MH
18 0489
Downstream MH
18 0490
Dir. of Survey
Upstream
Length Surveyed
99 ft.
Total Length
99 ft.
Structural Index
2
Structural Quick
352A
Structural Rating
38
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
2
Overall Quick
—
Overall Rating
38
Pipe schematic from manhole 18 0489 to 18 0490
MH: 18 0489MH: 18 0490upstream0 ft. AMH - Upstream Manhole, Survey Ends - 1:05AM2.9 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Finish20.5 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start - SLIGHT20.6 ft. JSM - Joint Separated Medium - 9:00 TO 3:00 SEALED27.9 ft. FL - Fracture Longitudinal, at 09 o'clock, within 8 inches of joint: YES - SL32 ft. MGO - General Observation - SLIGHT OFFSET JOINTS THROUGHOUT REACH41.1 ft. FC - Fracture Circumferential, from 09 to 12 o'clock, within 8 inches of joint: YES - SL46 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Finish - SLIGHT48.4 ft. FC - Fracture Circumferential, from 09 to 01 o'clock, within 8 inches of joint: YES - SL50.7 ft. JOM - Joint Offset Medium - 9:00 TO 3:00 SEALED59.4 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES - SLIGHT63.8 ft. FC - Fracture Circumferential, from 09 to 11 o'clock, within 8 inches of joint: YES - H68.8 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start - SLIGHT69.2 ft. FC - Fracture Circumferential, from 08 to 09 o'clock, within 8 inches of joint: YES - H69.2 ft. FC - Fracture Circumferential, from 03 to 04 o'clock, within 8 inches of joint: YES - H71.9 ft. JOM - Joint Offset Medium - 9:00 TO 3:00 SEALED74.2 ft. FC - Fracture Circumferential, from 12 to 03 o'clock, within 8 inches of joint: YES - H80 ft. FC - Fracture Circumferential, from 12 to 03 o'clock, within 8 inches of joint: YES - H81.7 ft. FL - Fracture Longitudinal, at 03 o'clock, within 8 inches of joint: YES - H84.5 ft. FC - Fracture Circumferential, from 12 to 03 o'clock, within 8 inches of joint: YES - H87.1 ft. FC - Fracture Circumferential, from 10 to 12 o'clock, within 8 inches of joint: YES - HAIRLINE87.1 ft. FC - Fracture Circumferential, from 12 to 03 o'clock, within 8 inches of joint: YES - HAIRLINE99 ft. MWL - Water Level, 10 %of cross sectional area99 ft. AMH - Downstream Manhole, Survey Begins - 12:35AM99 ft. MGO - General Observation - Conn. @ Mh, 9 O' Clock. Active99 ft. MWM - Water Mark, 30 %of cross sectional area

Observation photos (7)

  • Joint Offset Medium - 9:00 TO 3:00 SEALED

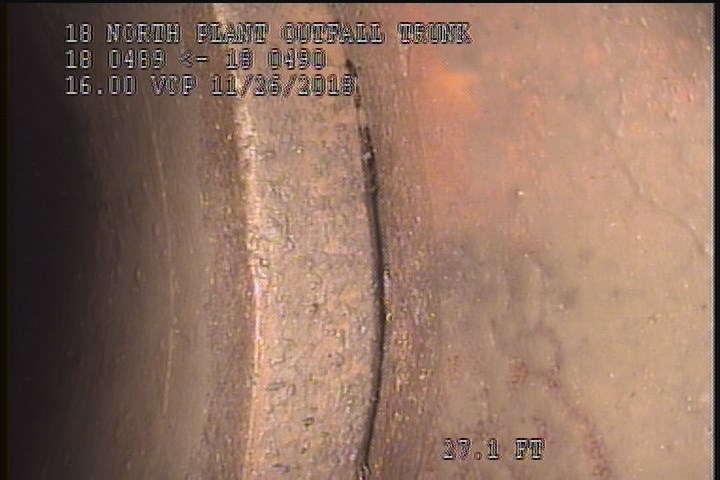

    27.1 ft. - Joint Offset Medium - 9:00 TO 3:00 SEALED

  • Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start - SLIGHT

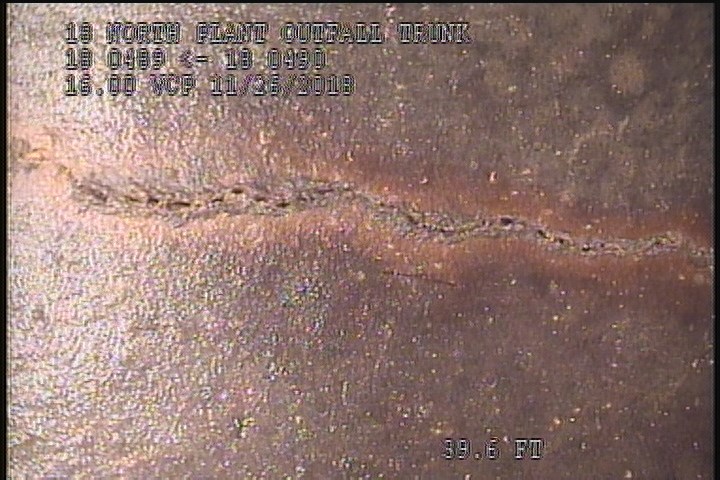

    30.2 ft. - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start - SLIGHT

  • Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES - SLIGHT

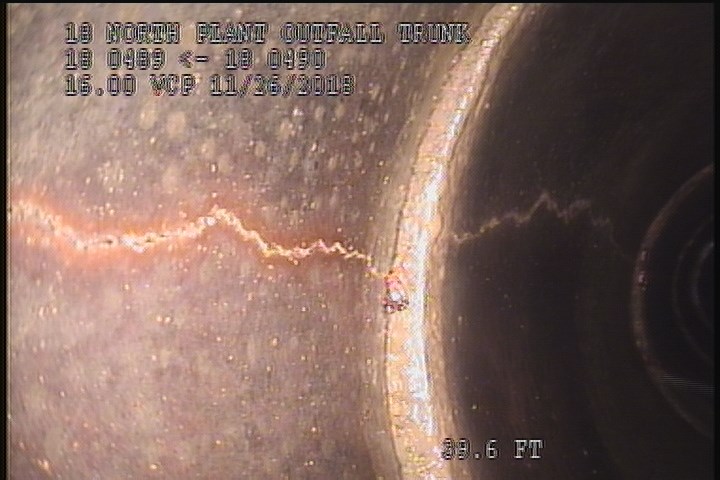

    39.6 ft. - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES - SLIGHT

  • Joint Offset Medium - 9:00 TO 3:00 SEALED

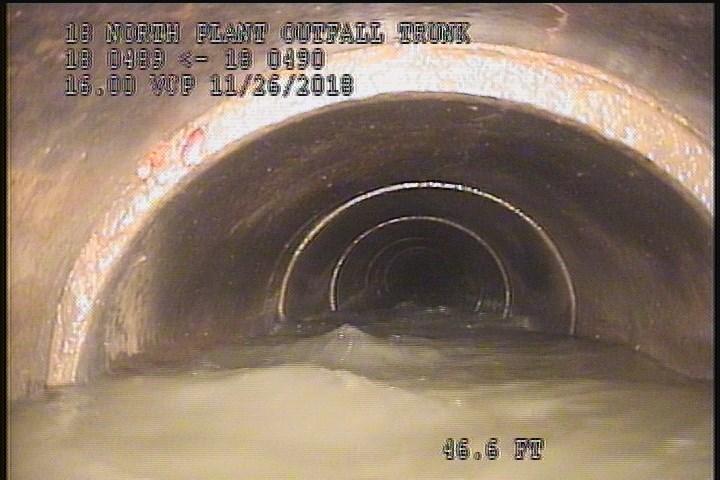

    48.3 ft. - Joint Offset Medium - 9:00 TO 3:00 SEALED

  • General Observation - SLIGHT OFFSET JOINTS THROUGHOUT REACH

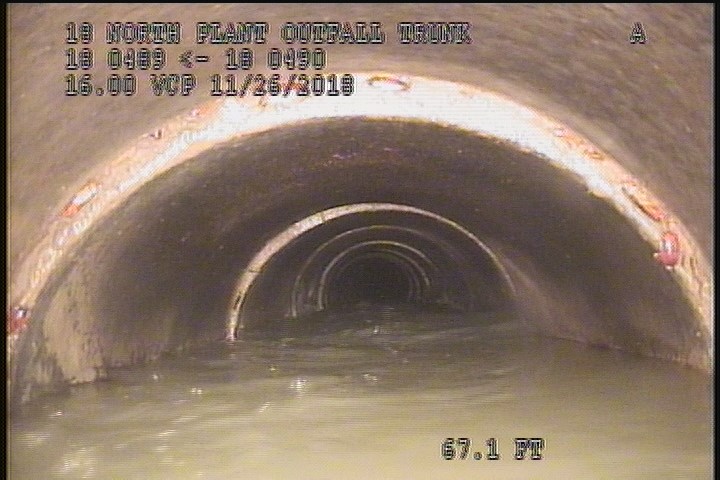

    67 ft. - General Observation - SLIGHT OFFSET JOINTS THROUGHOUT REACH

  • Joint Separated Medium - 9:00 TO 3:00 SEALED

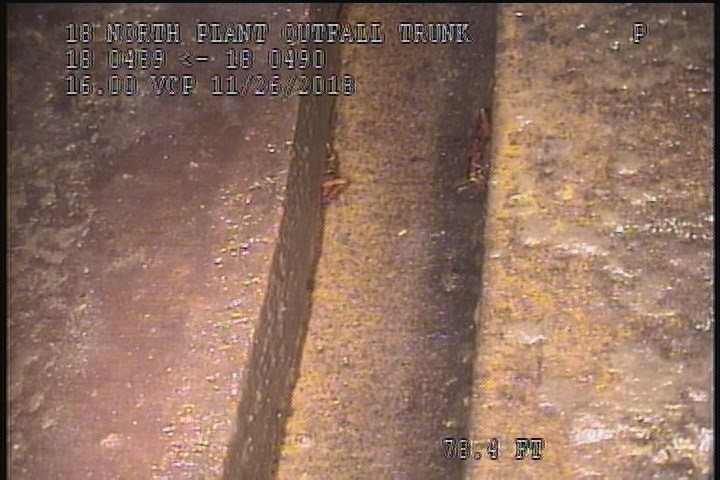

    78.4 ft. - Joint Separated Medium - 9:00 TO 3:00 SEALED

  • Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start - SLIGHT

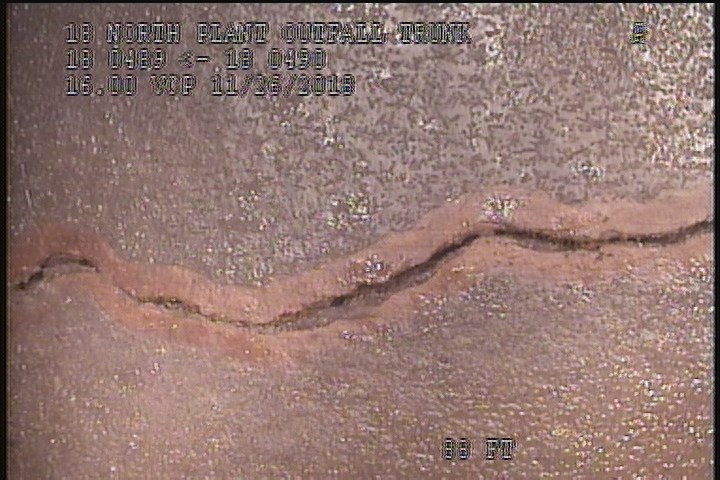

    78.5 ft. - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start - SLIGHT

All inspections of P14344Work order O740960

Observations (26)

DistanceCodeObservation
24.8FCH
53FLSLIGHT
19FCH
30.2FLSLIGHT
48.3JOM9:00 TO 3:00 SEALED
96.1FL—
99AMH1:05AM
50.6FCSL
0MWL—
29.8FCH
78.5FLSLIGHT
14.5FCH
0AMH12:35AM
39.6FLSLIGHT
71.1FLSL
67MGOSLIGHT OFFSET JOINTS THROUGHOUT REACH
29.8FCH
11.9FCHAIRLINE
35.2FCH
11.9FCHAIRLINE
17.3FLH
0MGOConn. @ Mh, 9 O' Clock. Active
27.1JOM9:00 TO 3:00 SEALED
57.9FCSL
78.4JSM9:00 TO 3:00 SEALED
0MWM—

Properties (7)

additional_info
REVERESE INSPECTION
custom_field_three
LONG SLIGHT JOINT TO JOINT LONGER
custom_field_two
2
customer
LACSD
datetime
2018-11-26T00:29:02-08:00
documentation
MARTIN,OLIVER 111,BRAR
is_lateral_inspection
false
