Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Sep 28, 2017, 05:44 AM

  • 16 0737_16 0579_27092017_224419.mp4

Date
09/27/2017
W/O
663060
Weather
Dry
Operator/Surveyor
R.VARGAS
Sewer ID
Z00659
PipeID
P13631
Time
10:44 PM
Certificate
U-209-211
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K4279
Sewer Name
16 LAMANDA PARK TRUNK
City
PASADENA
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 16
Page No.
11
Purpose
Routine Assessment
Project
WO_663060_TV16078_OCT2017
Sewer Type
Gravity
Material
Reinforced Concrete Pipe
Shape
Circular
Height
22 in.
Width
22 in.
Upstream MH
16 0579
Downstream MH
16 0737
Dir. of Survey
Upstream
Length Surveyed
178.7 ft.
Total Length
178.7 ft.
Structural Index
3
Structural Quick
3F00
Structural Rating
105
O&M Index
2
O&M Quick
2F00
O&M Rating
70
Overall Index
3
Overall Quick
—
Overall Rating
175
Pipe schematic from manhole 16 0579 to 16 0737
MH: 16 0579MH: 16 0737upstream0 ft. MGO - General Observation - STOPLOG/BULKHEAD AT MH0 ft. AMH - Upstream Manhole, Survey Ends - 16 07371.3 ft. MGO - General Observation - MAG COAT FINISH1.4 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish1.4 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Finish23.7 ft. MGO - General Observation - VERMIN51.4 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 4"103.8 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 4"159.4 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 4"172.5 ft. TB - Tap Break-In, at 10 o'clock, -, within 8 inches of joint: YES, 4"174.1 ft. TB - Tap Break-In, at 10 o'clock, -, within 8 inches of joint: YES, 4"176.5 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start176.5 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start176.5 ft. MGO - General Observation - MAG COAT START178.7 ft. MWM - Water Mark, 10 %of cross sectional area178.7 ft. AMH - Downstream Manhole, Survey Begins - 16 0579178.7 ft. MWL - Water Level, 5 %of cross sectional area

Observation photos (2)

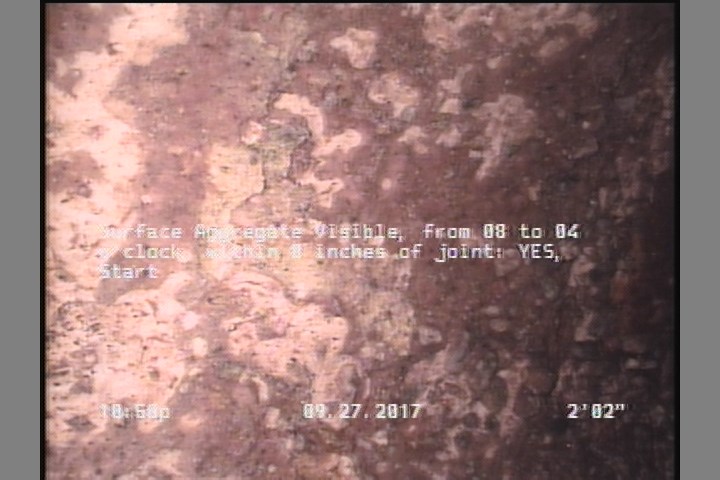

  • Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2.2 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

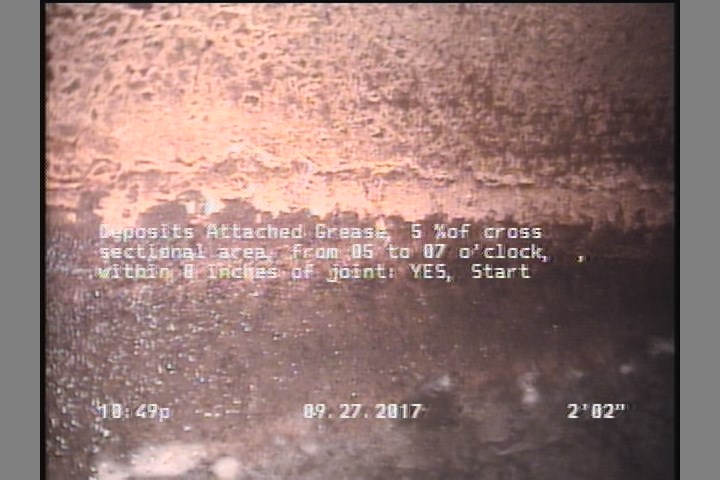

  • Deposits Attached Grease, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start

    2.2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start

All inspections of P13631Work order 663060

Observations (17)

DistanceCodeObservation
6.2TB—
2.2SAV—
0MWM—
4.6TB—
177.3SAV—
19.3TFC—
127.3TF—
2.2DAGS—
0AMH16 0579
178.7MGOSTOPLOG/BULKHEAD AT MH
2.2MGOMAG COAT START
74.9TF—
177.3DAGS—
178.7AMH16 0737
177.4MGOMAG COAT FINISH
155MGOVERMIN
0MWL—

Properties (6)

additional_info
SC352124
custom_field_two
3
customer
LACSD
datetime
2017-09-27T22:44:07-07:00
documentation
PRO PIPE
is_lateral_inspection
false
