Wastewater/Activity/PacpInspection/1.0Mar 15, 2016, 10:46 AM
19 0133_19 0132_20160315_035508.mp4
- Date
- 03/15/2016
- W/O
- 557968
- Weather
- Dry
- Operator/Surveyor
- J. HARTOOG
- Sewer ID
- Z00722
- PipeID
- P15322
- Time
- 3:46 AM
- Certificate
- U-507-03-3386
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K3224
- Sewer Name
- 19 EAST ARTESIA TRUNK, SECTS 1,2,3,&5
- City
- CERRITOS, CA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 19
- Page No.
- 05
- Purpose
- Routine Assessment
- Project
- WO_557968_TV19021_2016MAR
- Sewer Type
- GRAVITY
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 15 in.
- Upstream MH
- 19 0132
- Downstream MH
- 19 0133
- Dir. of Survey
- Upstream
- Length Surveyed
- 95.6 ft.
- Total Length
- 95.6 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 3
- O&M Quick
- 3121
- O&M Rating
- 5
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 5
Observation photos (2)
95.3 ft. - Obstacles Rocks, 15 %of cross sectional area, from 05 to 07 o'clock

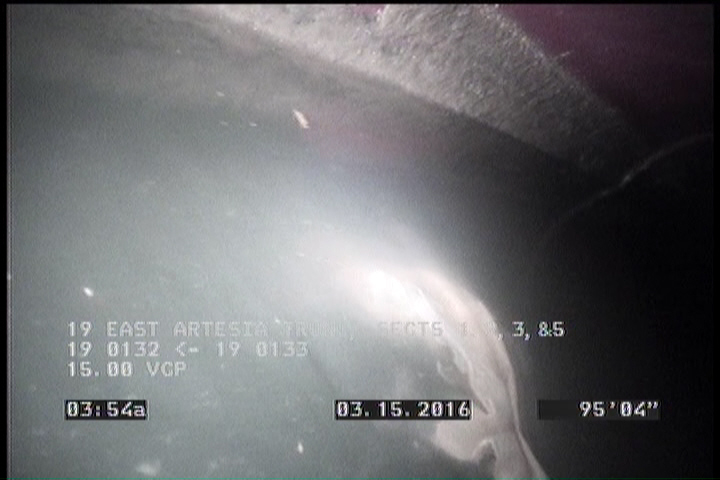

95.6 ft. - Survey Abandoned - DUE TO LARGE ROCK
Observations (9)
| Distance | Code | Observation |
|---|---|---|
| 0 | MGO | LATERAL AT MH 3 OCLOCK |
| 0 | MWM | — |
| 0 | MWL | — |
| 37.4 | DAGS | — |
| 95.6 | MSA | DUE TO LARGE ROCK |
| 0 | AMH | 19 0132 |
| 95.6 | DAGS | — |
| 74.3 | TBA | W/ MINERALS |
| 95.3 | OBR | — |
Properties (6)
- additional_info
- SC305315
- custom_field_two
- 5
- customer
- LACSD
- datetime
- 2016-03-15T03:46:00-07:00
- documentation
- PRO-PIPE
- is_lateral_inspection
- false
